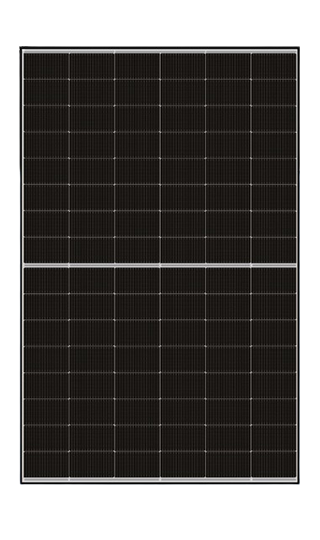

DAS-DH96NE.A 450W
Product information
The 450 Wp high-performance solar module DH96NE from DAS Solar has a stable, anodised black aluminium frame and high-performance solar cells that ensure optimum efficiency thanks to their outstanding performance. With a 30-year performance warranty and a 25-year product warranty this solar panel stands for sustainable energy generation and maximum energy savings.
Product advantages:
• High-performance solar cells
• Sturdy anodised black aluminium frame
• 30-year performance and 25-year product warranty
Product features:
• Power rating Pmax: 450 Wp
• Cell type: monocrystalline
• Bifacial: no
• Cell contact: 16 busbars
• Frame type: framed
• Frame colour: black
• Backsheet colour (cell side): white
• Max. system voltage: 1500 V
• Connector type: MC4 EVO 2
• Cable length: 1.2 m
• Glass thickness: 1.6 mm (front) / 1.6 mm (back)
• Max. surface load capacity: 5400 Pa (snow) / 2400 Pa (wind)
• Fire protection class: IEC 61730
• Dimensions: 1762 x 1134 x 30 mm (L x W x H)
• Weight: 21.6 kg
• Warranty: 30 years performance warranty and 25 years product warranty
Technical details
Module fire performance.: | IEC 61730 |
Max. surface load capacity testload(Pa): | 5400 |
Max. wind speed capacity testload(Pa): | 2400 |
Number of cells (pieces): | 96 |
Bifacial: | no |
Busbars (pcs): | 16 |
Backsheet colour cell side: | white |
Protection degree: | IP68 |
Glass thickness front side (mm): | 1,60 |
Integrated module optimization: | no |
Length of cable minus (cm): | 120,00 |
Length of cable plus (cm): | 120,00 |
Short circuit current Isc (A): | 16,08 |
Open circuit voltage Uoc (V): | 35,30 |
Power tolerance: | +5Wp |
Max. reverse current (A): | 30 |
Max. system voltage (V): | 1500 |
Module structure: | glass-glass |
Module efficiency (%): | 22,50 |
Power rating Pmax (Wp): | 450 |
Nominal current Impp (A): | 14,99 |
Frame colour: | black |
Frame type: | framed |
Connector type: | MC4 Evo 2 |
Temperature coefficient Isc (%/C): | 0,0450 |
Temperature coefficient Pmpp (%/C): | -0,2800 |
Temperature coefficient Uoc (%/C): | -0,2500 |
Cell width (mm): | 182,200 |
Cell length (mm): | 96,000 |
Cell cut: | half cut |
Cell type: | monocrystalline |
Manufacturer.: | DAS Solar |
Manufacturer: | DAS Solar |
Manufacturer item name: | DAS-DH96NE.A |
Supplier item: | DAS-DH96NE.A 450W BW |
Intrastat country of origin: | China |
Intrastat product number (HS-code): | 85414300 |
Brand: | DAS Solar |
Certificate 1: | IEC/TÜV |
Certificate 2: | Protection Class 2 |
Manufacturer part number: : | DAS-DH96NE.A 450W |
Amount Pal. p. Cont.: | 26 |
Amount p. Cont.: | 936 |
Amount per Pallet: | 36 |
Pal. weight (kg): | 816,00 |
Pal. dim. LxBxH (mm): | 1800x1150x1200 |
Pack. material: | cardboard box |
Width without packaging (mm): | 1.134,00 |
Weight without packaging (kg): | 21,600 |
Height without packaging (mm): | 30,00 |
Length without packaging (mm): | 1.762,00 |
Warranty provider.: | DAS Solar |
Warranty provider: | DAS Solar |
Performance warranty (yr): | 30 |
Linear degression p.a. in %: | 0,4 |
Standard product warranty (yr): | 25 |
Initial % for linear warranty: | 99 |
