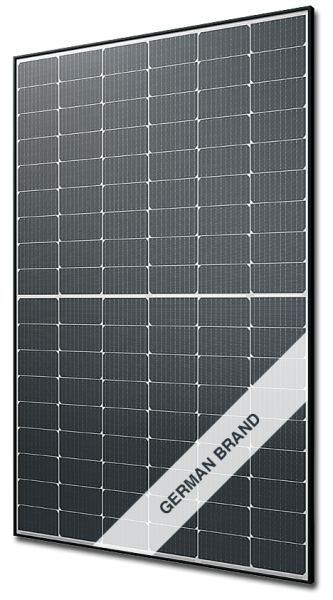

AXIbiperfect GXXL TB AC-440TGB/108TB-ALP (SU 31)

AXITEC

Art-Nr. 0158657

AXIbiperfect GXXL TB AC-440TGB/108TB-ALP (SU 31)

Glas-Glas, bifacial, transparent, MC4 Evo 2A

Product information

The AXITEC Alpine modules are specially designed for use in particularly challenging environmental conditions. Thanks to the robust double-glass construction with a glass thickness of 2x 2.8 mm, they offer exceptionally high mechanical resilience – ideal for regions with heavy snowfall, wind or extreme temperature fluctuations. The specially designed frame profile also provides increased stability in adverse weather conditions. As further proof of their resilience, the modules are rated HW4, which means they are protected from damage even in the event of heavy hail. Alpine modules such as the AXIbiperfect GXXL TB Extreme offer you a solution that guarantees maximum safety and durability, even in extreme operating environments, which is why Axitec offers a 30-year warranty on this product.

Product advantages:

• For alpine applications up to an altitude of 3,000 metres

• Suitable for extreme weather conditions

• High stability thanks to reinforced frame design

• 30-year performance and product warranty

Product features:

• Power rating Pmax: 440 Wp

• Cell type: monocrystalline

• Bifacial: yes

• Cell contact: 16 busbars

• Frame type: framed

• Frame colour: black

• Backsheet colour (cell side): transparent

• Max. system voltage: 1500 V

• Connector type: MC4 Evo 2A

• Cable length: 1.2 m

• Glass thickness: 2.8 mm (front) / 2.8 mm (back)

• Max. surface load capacity: 8400 Pa (snow) / 6600 Pa (wind)

• Fire protection class: C (UL 790)

• Dimensions: 1766 x 1154 x 35 mm (L x W x H)

• Weight: 33.0 kg

• Warranty: 30 years performance warranty and 30 years product warranty

view more Show less

Technical details

Module fire performance.:	C, UL 790
Max. surface load capacity testload(Pa):	8400
Max. wind speed capacity testload(Pa):	6600
Number of cells (pieces):	108
Bifacial:	yes
Busbars (pcs):	16
Backsheet colour cell side:	transparent
Protection degree:	IP68
Glass thickness front side (mm):	2,80
Hail resistance:	HW 4
Integrated module optimization:	no
Length of cable minus (cm):	120,00
Length of cable plus (cm):	120,00
Short circuit current Isc (A):	13,83
Open circuit voltage Uoc (V):	40,28
Power tolerance:	+5 Wp
Max. reverse current (A):	30
Max. system voltage (V):	1500
Module structure:	glass-glass
Module efficiency (%):	21,59
Power rating Pmax (Wp):	440
Nominal voltage Umpp (V):	33,49
Nominal current Impp (A):	13,14
Frame colour:	black
Frame type:	framed
Connector type:	MC4 Evo 2A
Temperature coefficient Isc (%/C):	0,0460
Temperature coefficient Pmpp (%/C):	-0,3100
Temperature coefficient Uoc (%/C):	-0,2600
Number of cells along:	18
Number of cells across:	6
Cell width (mm):	182,000
Cell length (mm):	94,000
Cell cut:	half cut
Cell type:	monocrystalline

Manufacturer:	AXITEC
Manufacturer item name:	AC-440TGB/108TB-ALP
Intrastat country of origin:	China
Intrastat product number (HS-code):	85414300
Brand:	AXITEC
Certificate 1:	IEC/TÜV
Certificate 2:	Protection Class 2
Manufacturer part number: :	AXIbiperfect GXXL TB AC-440TGB/108TB-ALP (SU 31)

Amount Pal. p. Cont.:	18
Amount p. Cont.:	558
Amount per Pallet:	31
Pack. material:	cardboard box

Width without packaging (mm):	1.154,00
Weight without packaging (kg):	33,000
Height without packaging (mm):	35,00
Length without packaging (mm):	1.766,00

Warranty provider:	AXITEC
Performance warranty (yr):	30
Linear degression p.a. in %:	0,4
Product warranty (yr):	30
Standard product warranty (yr):	30
Initial % for linear warranty:	99
