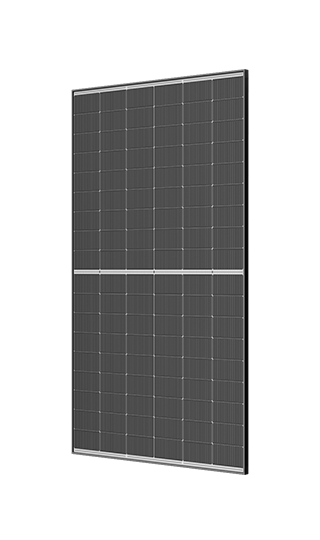

TSM-NEG18R.28 510W
Product information
The Trina double glass Vertex S+ series, with a remarkable power of 510 Wp, embodies a remarkable innovation in the field of solar technology. It offers versatile applications that are ideal for both residential and commercial roofs. With an impressive 30-year performance guarantee, the exceptional quality and reliability of this product is emphasized. In addition, the solar panel has been specially designed to withstand extreme environmental conditions, demonstrating considerable resistance to fire and other demanding environmental conditions.
Product advantages:
• High-performance solar cells
• Excellent resistance to fire and difficult environmental conditions
• Universal solution for residential and commercial roofs
• Stable anodized black aluminum frame
Product features:
• Output: 510 Wp
• Cell type: monocrystalline
• Bifacial: no
• Cell contact: 16 busbars
• Frame color: black
• Film color: white
• System voltage: 1500 V
• Connector: MC4-EVO 2
• Length of connection cable: 1.4 m
• Glass thickness: 1.6 mm (front) / 1.6 mm (back)
• Dimensions: 1134 x 30 x 1961 mm (WxHxL)
• Surface load capacity: 5400 Pa (snow) / 4000 Pa (wind)
• Weight: 23.5 kg
• Guarantee: 30-year performance guarantee and 25-year product warranty
Technical details
Module fire performance.: | IEC 61730 |
Max. surface load capacity testload(Pa): | 5400 |
Max. wind speed capacity testload(Pa): | 2400 |
Number of cells (pieces): | 108 |
Bifacial: | no |
Busbars (pcs): | 16 |
Backsheet colour cell side: | white |
Protection degree: | IP68 |
Glass thickness front side (mm): | 1,60 |
Integrated module optimization: | no |
Length of cable minus (cm): | 140,00 |
Length of cable plus (cm): | 140,00 |
Short circuit current Isc (A): | 15,93 |
Open circuit voltage Uoc (V): | 40,60 |
Power tolerance: | +5 Wp |
Max. reverse current (A): | 30 |
Max. system voltage (V): | 1500 |
Module structure: | glass-glass |
Module efficiency (%): | 22,90 |
Power rating Pmax (Wp): | 510 |
Nominal current Impp (A): | 15,14 |
Frame colour: | black |
Frame type: | framed |
Connector type: | MC4 Evo 2 |
Temperature coefficient Isc (%/C): | 0,0400 |
Temperature coefficient Pmpp (%/C): | -0,2900 |
Temperature coefficient Uoc (%/C): | -0,2400 |
Number of cells along: | 18 |
Number of cells across: | 6 |
Cell width (mm): | 182,000 |
Cell length (mm): | 105,000 |
Cell cut: | half cut |
Cell type: | monocrystalline |
Manufacturer.: | Trina Solar |
Manufacturer: | Trina Solar |
Manufacturer item name: | TSM-510NEG18R.28 |
Supplier item: | TSM-510NEG18R.28 |
Intrastat country of origin: | China |
Intrastat product number (HS-code): | 85414300 |
Brand: | Trina Solar |
Certificate 1: | IEC/TÜV |
Certificate 2: | Protection Class 2 |
Manufacturer part number: : | TSM-NEG18R.28 510W |
Amount Pal. p. Cont.: | 24 |
Amount p. Cont.: | 864 |
Amount per Pallet: | 36 |
Pal. dim. LxBxH (mm): | 2000x1150x1250 |
Pack. material: | cardboard box |
Width without packaging (mm): | 1.134,00 |
Weight without packaging (kg): | 23,500 |
Height without packaging (mm): | 30,00 |
Length without packaging (mm): | 1.961,00 |
Warranty provider.: | Trina Solar |
Warranty provider: | Trina Solar |
Performance warranty (yr): | 30 |
Linear degression p.a. in %: | 0,4 |
Product warranty (yr): | 25 |
Standard product warranty (yr): | 25 |
Initial % for linear warranty: | 99 |
