DM450M10RT-B54HBT

DMEGC

Art-Nr. 0159552

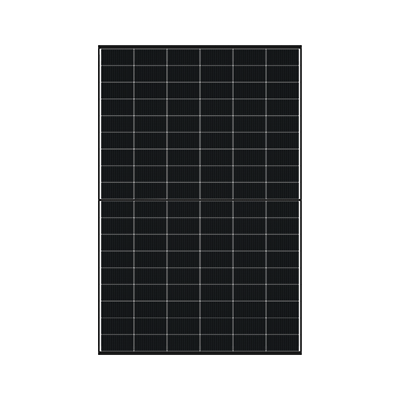

DM450M10RT-B54HBT

Glass-Glass, bifacial, transparent, MC4-EVO 2A

Manufacturer item number: DM450M10RT-B54HBT

Product information

DMEGC, one of the world's leading providers of renewable energy, presents the DM450M10RT-B54HBT solar module with an output of 450 Wp. With a strong focus on quality, DMEGC uses high-quality materials and state-of-the-art production facilities to ensure maximum reliability and value retention. The DM450M10RT-B54HBT is a bifacial module that can generate electricity on both sides thanks to bifacial technology. This innovative technology allows the use of solar radiation and increases the energy yield. The robust double glass construction makes the module particularly resistant to harsh environmental conditions. The solar panel has been designed with aesthetics in mind. The black frame and transparent backsheet give the module a modern look that blends harmoniously into any environment. DMEGC's commitment to quality is reflected in the warranty: DMEGC offers a 30-year performance warranty and a 25-year product warranty on this module.

Product advantages:

• Innovative bifacial technology

• Robust and durable

• Elegant and modern design

• Comprehensive warranties

Product features:

• Power rating Pmax: 450 Wp

• Cell type: monocrystalline

• Bifacial: yes

• Cell contact: 16 busbars

• Frame type: framed

• Frame colour: black

• Backsheet colour (cell side): transparent

• Max. system voltage: 1500 V

• Connector type: MC4 Evo 2A

• Cable length: 1.2 m

• Glass thickness: 2.0 mm (front) / 2.0 mm (back)

• Max. surface load capacity: 5400 Pa (snow) / 2400 Pa (wind)

• Fire protection class: IEC 61730

• Dimensions: 1762 x 1134 x 30 mm (L x W x H)

• Weight: 24.5 kg

• Warranty: 30 years performance warranty and 25 years product warranty

view more Show less

Technical details

Module fire performance.:	IEC 61730
Max. surface load capacity testload(Pa):	5400
Max. wind speed capacity testload(Pa):	2400
Number of cells (pieces):	108
Bifacial:	yes
Busbars (pcs):	16
Backsheet colour cell side:	transparent
Protection degree:	IP68
Glass thickness front side (mm):	2,00
Hail resistance:	HW 3
Integrated module optimization:	no
Length of cable minus (cm):	120,00
Length of cable plus (cm):	120,00
Short circuit current Isc (A):	14,17
Open circuit voltage Uoc (V):	40,25
Power tolerance:	+3 %
Max. reverse current (A):	30
Max. system voltage (V):	1500
Module structure:	glass-glass
Module efficiency (%):	22,50
Power rating Pmax (Wp):	450
Nominal current Impp (A):	13,27
Frame colour:	black
Frame type:	framed
Connector type:	MC4 Evo 2A
Temperature coefficient Isc (%/C):	0,0480
Temperature coefficient Pmpp (%/C):	-0,2900
Temperature coefficient Uoc (%/C):	-0,2900
Cell width (mm):	189,000
Cell length (mm):	98,000
Cell cut:	half cut
Cell type:	monocrystalline

Manufacturer:	DMEGC
Manufacturer item name:	DM450M10RT-B54HBT
Supplier item:	DM450M10RT-B54HBT
Intrastat country of origin:	China
Intrastat product number (HS-code):	85414300
Brand:	DMEGC
Certificate 1:	IEC/TÜV
Certificate 2:	Protection Class 2
Manufacturer part number: :	DM450M10RT-B54HBT

Amount Pal. p. Cont.:	26
Amount p. Cont.:	936
Amount per Pallet:	36
Pal. dim. LxBxH (mm):	1800x1140x1250
Pack. material:	cardboard box

Width without packaging (mm):	1.134,00
Weight without packaging (kg):	24,500
Height without packaging (mm):	30,00
Length without packaging (mm):	1.762,00

Warranty provider:	DMEGC
Performance warranty (yr):	30
Linear degression p.a. in %:	0,4
Standard product warranty (yr):	25
Initial % for linear warranty:	99
