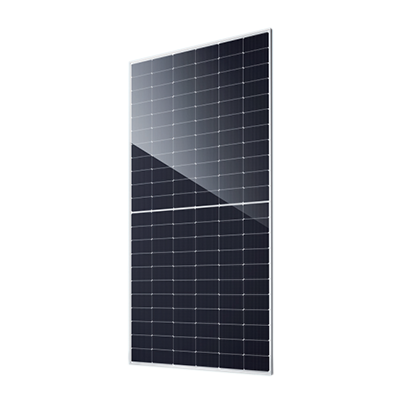

JAM66D46-710/LB (SU 33)

JA Solar

Art-Nr. 0159274

JAM66D46-710/LB (SU 33)

Glass-glass, bifacial, MC4-EVO 2A

Manufacturer item number: JAM66D46-710/LB

Product information

Module larger than 3 m², please consult state building regulations.

JA Solar is a leading global provider of photovoltaic power generation solutions. JA Solar's JAM66D46 LB solar module with an output of 710 Wp is equipped with bifacial technology, which enables power generation on both sides. This technology increases yield and improves energy efficiency by utilising both the front and back sides of the PV module. In addition, the module has improved low-light performance, ensuring very good performance even at low irradiation. JA Solar offers a 30-year performance warranty for this product.

Product advantages:

• Bifacial power generation

• Improved low-light performance

• 30 years performance warranty

Product features:

• Power rating Pmax: 710 Wp

• Cell type: monocrystalline

• Bifacial: yes

• Cell contact: 18 busbars

• Frame type: framed

• Frame colour: silver

• Backsheet colour (cell side): white

• Max. system voltage: 1500 V

• Connector type: MC4 EVO 2A

• Cable length: 1.5 m

• Glass thickness: 2.0 mm (front) / 2.0 mm (back)

• Max. surface load capacity: 5400 Pa (snow) / 2400 Pa (wind)

• Fire protection class: UL Type 29/Class C

• Dimensions: 2384 x 1303 x 33 mm (L x W x H)

• Weight: 38.2 kg

• Warranty: 30 years performance warranty and 12 years product warranty

view more Show less

Technical details

Module fire performance.:	C, IEC 61730, UL 61730
Max. surface load capacity testload(Pa):	5400
Max. wind speed capacity testload(Pa):	2400
Number of cells (pieces):	132
Bifacial:	yes
Busbars (pcs):	18
Backsheet colour cell side:	white
Protection degree:	IP68
Glass thickness front side (mm):	2,00
Integrated module optimization:	no
Length of cable minus (cm):	150,00
Length of cable plus (cm):	150,00
Short circuit current Isc (A):	18,51
Open circuit voltage Uoc (V):	48,60
Power tolerance:	+ 3%
Max. reverse current (A):	35
Max. system voltage (V):	1500
Module structure:	glass-glass
Module efficiency (%):	22,90
Power rating Pmax (Wp):	710
Nominal current Impp (A):	17,40
Frame colour:	silver
Frame type:	framed
Connector type:	MC4 Evo 2A
Temperature coefficient Isc (%/C):	0,0450
Temperature coefficient Pmpp (%/C):	-0,2900
Temperature coefficient Uoc (%/C):	-0,2500
Cell width (mm):	105,000
Cell length (mm):	210,000
Cell cut:	half cut
Cell type:	monocrystalline

Manufacturer:	JA Solar
Manufacturer item name:	JAM66D46-710/LB
Supplier item:	JAM66D46-710/LB
Intrastat country of origin:	China
Intrastat product number (HS-code):	85414300
Brand:	JA Solar
Certificate 1:	IEC/TÜV
Certificate 2:	Protection Class 2
Manufacturer part number: :	JAM66D46-710/LB (SU 33)

Amount Pal. p. Cont.:	18
Amount p. Cont.:	594
Amount per Pallet:	33
Pal. weight (kg):	1.304,00
Pal. dim. LxBxH (mm):	1350x1150x2500
Pack. material:	film

Width without packaging (mm):	1.303,00
Weight without packaging (kg):	38,200
Height without packaging (mm):	33,00
Length without packaging (mm):	2.384,00

Warranty provider:	JA Solar
Performance warranty (yr):	30
Linear degression p.a. in %:	0,4
Standard product warranty (yr):	12
Initial % for linear warranty:	99
