TWMNF-66HD710
Product information
Module larger than 3 m², please consult state building regulations.

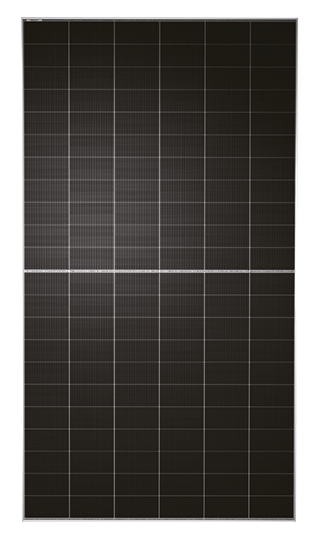

Tongwei Solar is a photovoltaic manufacturer from China. With the TWMNF-66HD710 module, the company presents a solar module with an output of 710 Wp. This module offers several advantages, including innovative bifacial technology, that utilises both the front and back sides to generate electricity. Thanks to its stable double-glass construction embedded in a silver-anodised aluminium frame, the module is particularly durable and robust. Overall, the solar module impresses with its combination of high energy yield and high reliability. Tongwei Solar offers an outstanding 30-year performance warranty on this product.
Product advantages:
• Innovative bifacial technology
• Stable double-glass construction
• High energy yield and high reliability
• 30 years performance warranty
Product features:
• Power rating Pmax: 710 Wp
• Cell type: monocrystalline
• Bifacial: yes
• Cell contact: 18 busbars
• Frame type: framed
• Frame colour: silver
• Backsheet colour (cell side): white
• Max. system voltage: 1500 V
• Connector type: MC4 connectable
• Cable length: 0.4 m (plus) / 0.2 m (minus)
• Glass thickness: 2.0 mm (front) / 2.0 mm (back)
• Max. surface load capacity: 5400 Pa (snow) / 2400 Pa (wind)
• Fire protection class: IEC 61730
• Dimensions: 2384 x 1303 x 33 mm (L x W x H)
• Weight: 37.9 kg
• Warranty: 30 years performance warranty and 12 years product warranty
Technical details
Max. surface load capacity testload(Pa): | 5400 |
Max. wind speed capacity testload(Pa): | 2400 |
Number of cells (pieces): | 132 |
Bifacial: | yes |
Busbars (pcs): | 18 |
Backsheet colour cell side: | white |
Protection degree: | IP68 |
Glass thickness front side (mm): | 2,00 |
Integrated module optimization: | no |
Length of cable minus (cm): | 20,00 |
Length of cable plus (cm): | 40,00 |
Short circuit current Isc (A): | 18,45 |
Open circuit voltage Uoc (V): | 48,94 |
Power tolerance: | +5 Wp |
Max. reverse current (A): | 35 |
Max. system voltage (V): | 1500 |
Module structure: | glass-glass |
Module efficiency (%): | 22,90 |
Power rating Pmax (Wp): | 710 |
Nominal voltage Umpp (V): | 40,69 |
Nominal current Impp (A): | 17,45 |
Frame colour: | silver |
Frame type: | framed |
Connector type: | MC4 Evo 2 |
Temperature coefficient Isc (%/C): | 0,0460 |
Temperature coefficient Pmpp (%/C): | -0,2800 |
Temperature coefficient Uoc (%/C): | -0,2400 |
Number of cells along: | 22 |
Number of cells across: | 6 |
Cell width (mm): | 120,000 |
Cell length (mm): | 120,000 |
Cell cut: | half cut Fullsquare cell |
Cell type: | monocrystalline |
Manufacturer: | TW Solar |
Manufacturer item name: | TWMNF-66HD710 |
Supplier item: | TWMNF-66HD710 |
Intrastat country of origin: | China |
Intrastat product number (HS-code): | 85414300 |
Brand: | TW Solar |
Certificate 1: | IEC/TÜV |
Certificate 2: | Protection Class 2 |
Manufacturer part number: : | TWMNF-66HD710 |
Amount Pal. p. Cont.: | 18 |
Amount p. Cont.: | 594 |
Amount per Pallet: | 33 |
Width without packaging (mm): | 1.303,00 |
Weight without packaging (kg): | 37,900 |
Height without packaging (mm): | 33,00 |
Length without packaging (mm): | 2.384,00 |
Warranty provider: | TW Solar |
Performance warranty (yr): | 30 |
Linear degression p.a. in %: | 0,4 |
Product warranty (yr): | 12 |
Standard product warranty (yr): | 12 |
Initial % for linear warranty: | 99 |
