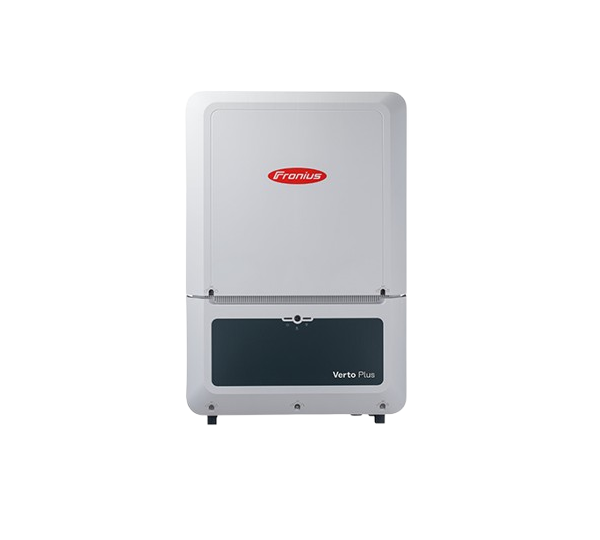

Verto Plus 33.3

Fronius

Art-Nr. 0159337

Verto Plus 33.3

Hybrid-IV, 3 MPPT, 3-phasig

Manufacturer item number: 4,210,460

Product information

As with the Fronius GEN24 devices, the ‘plus’ makes all the difference in the new Verto series. The Verto Plus hybrid inverters are already equipped with a powerful high-voltage storage connection ex works. With 15 to 33.3 kW, they are the ideal system modules in the small-commercial segment. The proven complete communication equipment is complemented by AC and DC-side overvoltage protection and Fronius Arc Guard Technology. High security standards are also set for data backup with servers in Europe.

Product advantages:

- 28 A input current per MPPT / string

- 50 A charging current to the high-voltage storage system

- 3-phase backup current possible with Fronius Backup Switch + Controller

Product features:

- AC nominal power: 33.3 kW

- Grid connection: 3-phase

- AC grid voltage: 400 V

- Number of MPPT: 3

- Max. DC input voltage: 1000 V

- Max. DC input current: 28 A per MPPT

- DC overvoltage protection: Type 1+2

- AC overvoltage protection: Type 2

- DC connector type: PV - Stäubli MC4, Bat - Stäubli MC4 Evo Stor

- Number of battery connections: 1

- Communication: WLAN, Ethernet

- Interfaces: 2 x RS485, 6 x DI (FRE), 6 x DO

- Protection class: IP66

- Cooling: active

- Weight: 43.0 kg

- Dimensions: 865 x 574 x 279 mm (H x W x D)

- Warranty: 2.5 years + a further 5 years after free registration

view more Show less

Technical details

Protection degree:	IP66
DC connector type:	MC4
Max. input voltage DC (V):	1.000,00
Battery voltage:	High Voltage
Number of independent MPPT (pcs):	3
Battery Connection:	DC
Interfaces:	Ethernet, RS485, W-Lan
Max. generator power DC (kWp):	50,00
Max. AC power (kVA):	33,30
AC nominal power (kW):	33,30
Inverter type:	hybrid inverter, string inverter
Max. temperature ambient (°C):	60
Max. short circuit current per MPPT (A):	50
MPP max. voltage range input (V):	870,00
Start input voltage (V):	150
Min. voltage range input (V):	150
Max. short circuit current (A) total:	150,00
Max. output current (A):	50,50
MPP min. voltage range input (V):	410,00
AC grid frequency (Hz).:	50/60
AC grid voltage (V):	220, 230, 380, 400
Min. temperature ambient (°C):	-25
Surge protection AC:	type 2
Total number of string inputs:	6
Surge protection DC:	type 1 and type 2
Max. input current DC (A) total:	84,00
Battery voltage.:	High Voltage
Feed-in phases.:	3
AC grid frequency (Hz)..:	50, 60
Max. input current per MPPT (A).:	28

Intrastat product number (HS-code):	85044086
Manufacturer:	Fronius
Intrastat country of origin:	Austria
Brand:	Fronius
Supplier item:	4,210,460
Compatible battery manufacturer:	BYD, Fronius
Manufacturer.:	Fronius
Manufacturer item name:	VERTO PLUS 33.3
Manufacturer part number: :	Verto Plus 33.3

Pack. material:	cardboard box
Amount per Pallet:	4

Weight without packaging (kg):	43,000
Height without packaging (mm):	279,00
Width without packaging (mm):	574,00
Length without packaging (mm):	865,00

Warranty provider:	Fronius
Standard product warranty (yr):	2
Warranty provider.:	Fronius

Accessories

Power Backup 63 Fronius Verto Plus DE | 3-/all-pole disconnection, 3-phase, 63 A

enwitec

Art.-Nr. 0161515

Power Backup 63 Fronius Verto Plus DE

3-/all-pole disconnection, 3-phase, 63 A

enwitec

Art.-Nr. 0161516

Power Backup 63 Fronius Verto Plus EU

3-/all-pole disconnection, 3-phase, 63 A
