KACO new energy
Art-Nr. 0160081

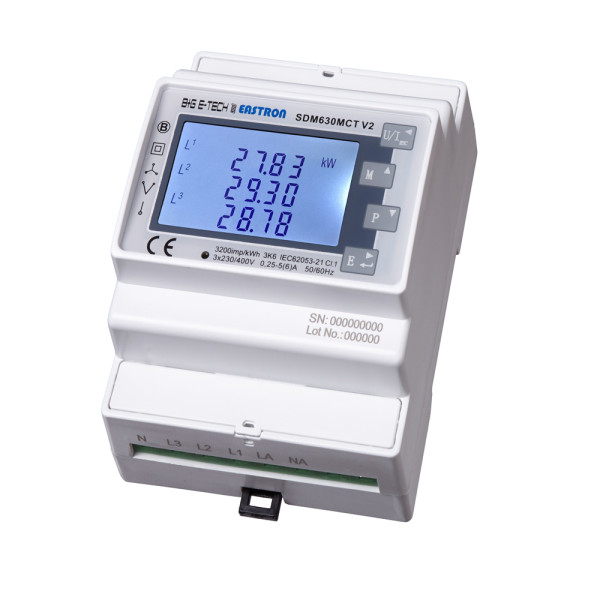

Eastron SDM630MCT Power Meter
3-phase, direct measurement (1/5A)
Manufacturer item number: 3016563
Product information
With the SDM630MCT Power Meter from Eastron, energy flows at the grid connection point can be quickly and accurately recorded to enable storage charging management and visualization of self-consumption. Suitable external current measuring transformers can be added as needed.
Product Features:
• Grid connection: 230V / 400V
• Connection phases: 1-/3-phase
• Measurement: Indirect via external CTs (not included)
• Certification: MID
• Communication: RS485
• Mounting: DIN rail
• Dimensions: 72 x 95 x 65 mm (W x H x D)
Technical details
Max. input current (A) total: | 5,00 |
Mounting type: | DIN rail |
AC grid voltage (V): | 100, 110, 115, 120, 127, 208, 220, 230, 240, 277 |
Feed-in phases.: | 1, 3 |
AC grid frequency (Hz)..: | 50 |
Intrastat country of origin: | China |
Manufacturer: | KACO new energy |
Intrastat product number (HS-code): | 90303900 |
Brand: | Eastron |
Manufacturer.: | KACO new energy |
Manufacturer item name: | SDM630MCT-Modbus |
Supplier item: | 3016563 |
Manufacturer part number: : | Eastron SDM630MCT Power Meter |
Pack. material: | cardboard box |
Amount per big Box: | 1 |
Weight without packaging (kg): | 0,300 |
Width without packaging (mm): | 72,00 |
Length without packaging (mm): | 65,00 |
Height without packaging (mm): | 94,50 |
Warranty provider: | KACO new energy |
Standard product warranty (yr): | 2 |
