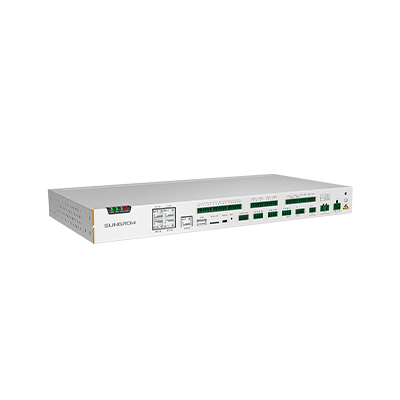

EMS300CP Controller
Product information
One EMS300CP controller is required per system (or grid connection point) with up to 25 Sungrow Power Stacks. A suitable smart meter including CTs is also required.
In addition to the EMS300CP, an external EMS (3rd party) is required per system to provide the required control interfaces.
Off-grid or emergency power system applications cannot be implemented with the Sungrow Power Stack.
With the Power Stack Commercial Storage System, Sungrow is now entering the large-scale storage segment. The key specifications, including 110 kW charging power, 225 kWh storage capacity, and a highly efficient liquid cooling system, already indicate its enormous potential. Flexible in terms of installation location and application area, it also offers reliable operation thanks to a three-stage safety concept. The multi-cascadable system is ideal for small and large commercial applications. Control and monitoring are handled by Sungrow's proprietary EMS300CP.
Product features:
• Maximum number of power stacks per controller: 25 (5.725 MWh)
• Application scenarios: Self-consumption, peak shaving, energy arbitrage
• Permissible grid connection: On-grid
Smart meters compatible with the EMS300CP (CTs must be added as needed):
- DTSD1352, 6A (item 0150242)
- DTSU666-20 (item 0154200)
- Janitza UMG 604/104
- Janitza UMG 96-PQ-L
- Weidmüller EM610
Technical details
Display: | w/o display |
Interfaces: | Ethernet, RS485 |
Intrastat country of origin: | China |
Intrastat product number (HS-code): | 85176200 |
Manufacturer: | Sungrow |
Brand: | Sungrow |
Manufacturer item name: | EMS300CP |
Supplier item: | B0B02247 |
Manufacturer.: | Sungrow |
Manufacturer part number: : | EMS300CP Controller |
Pack. material: | cardboard box |
Amount per Pallet: | 36 |
Pal. dim. LxBxH (mm): | 1100x1100x1050 |
Weight without packaging (kg): | 3,000 |
Height without packaging (mm): | 44,00 |
Width without packaging (mm): | 440,00 |
Length without packaging (mm): | 224,00 |
Product warranty (yr): | 2 |
Warranty provider: | Sungrow |
Standard product warranty (yr): | 2 |
Warranty provider.: | Sungrow |
