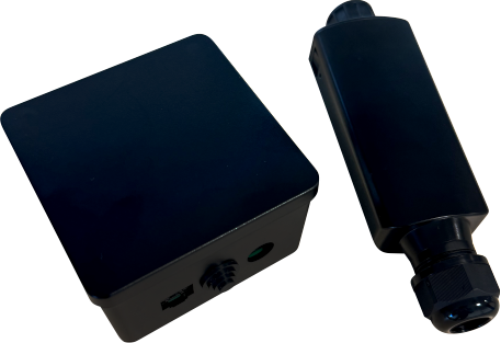

RCN-Kit-02
Product information
With the Kaco RCN-Kit-02, additional interfaces can be added to the PV inverters of the NX3 series. These include digital inputs for the radio ripple control receiver (FRE) and the control signal of an external NA protection monitor. The connection to the inverter is established via a Wi-Fi dongle included in the scope of delivery. In addition, 24-hour monitoring can also be realised with an additional 12V DC power supply unit.
Product advantages:
- Can be retrofitted
- Enables connection of FRE + ext- NA protection
Product features:
- Power supply: 12V DC (optional, power supply unit must be ordered separately)
- Communication: via Wifi dongle to WR (included in scope of delivery)
- Interfaces: 4 x DI, 1 x NA contact
- Mounting: Wall
- Protection class: IP22
- Dimensions: approx. 80 x 80 x 60 mm (H x W x D)
Technical details
Intrastat country of origin: | Germany |
Manufacturer: | KACO new energy |
Intrastat product number (HS-code): | 85359000 |
Brand: | KACO new energy |
Manufacturer item name: | RCN-KIT |
Supplier item: | 3016724 |
Manufacturer part number: : | RCN-Kit-02 |
Pack. material: | cardboard box |
Weight without packaging (kg): | 0,400 |
Height without packaging (mm): | 20,00 |
Width without packaging (mm): | 30,00 |
Length without packaging (mm): | 30,00 |
Warranty provider: | KACO new energy |
Standard product warranty (yr): | 2 |
