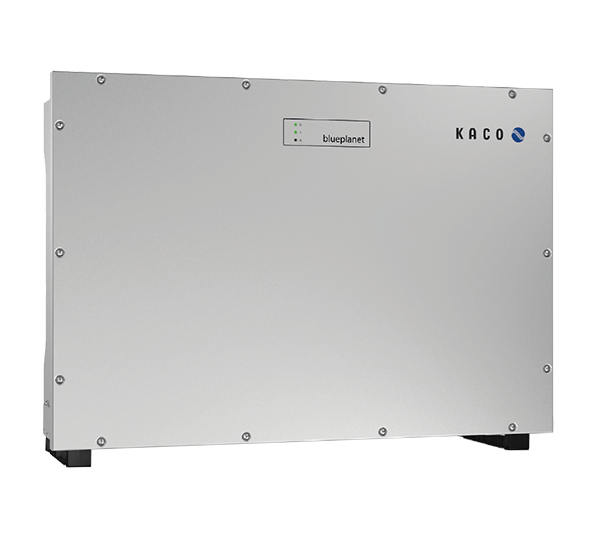

blueplanet 125 NX3 L M10, version L

Product details

Product information "blueplanet 125 NX3 L M10, version L"

Kaco has now equipped all new devices in the M5, M8 and M10 series with a multi-MPP tracker concept. This allows the module strings to be connected directly to the inverter. Complex combiner boxes are therefore no longer required. With up to 30 A input current per tracker, the devices in the M8 + M10 series are ideally equipped for current module types. Overvoltage protection with replaceable elements on the AC + DC side is also on board.


Product advantages:

- New multi-MPPT concept

- Up to 30 A input current per MPPT

- V-curve analysis

- Overvoltage protection: DC type 1+2, AC type 2

- AFCI arc detection


Product features:

- AC power: 125.0 kW

- AC connection: 400 V, 3-phase

- Number of MPPT: 10

- DC connector: Phoenix Contact Sunclix

- Overvoltage protection: DC type 1+2, AC type 2 (interchangeable)

- AFCI arc fault detection: yes - only for version L

- Communication: LAN, RS485, WLAN (opt. via stick)

- Protection class: IP66

- Cooling: active

- Dimensions: 740 x 1023 x 330 mm (H x W x D)

- Weight: approx. 85.0 kg

Technical details

Topology transformerless
Number of independent MPPT (pcs) 10
Start input voltage (V) 250
Max. output current (A) 546.00
Min. voltage range input (V) 200
Min. temperature ambient (°C) -25
Protection degree IP66
Interface 2 RS485
MPP max. voltage range input (V) 850.00
European efficiency (%) 98.70
Max. short circuit current (A) total 375.00
Surge protection AC type 2
Degree of protection IP IP66
Interface 1 Ethernet
Max. AC power (kVA) 125.00
Decibel 60
Display w/o display
Max. efficiency (%) 99.10
Max. generator power DC (kWp) 250.00
Max. short circuit current per MPPT (A) 37,5
MPP min. voltage range input (V) 550.00
Max. input current per MPPT (A). 30
Max. input current DC (A) total 300.00
AC nominal power (kW) 125.00
Max. input voltage DC (V) 1100.00
Total number of string inputs 20
Surge protection DC type 1 and type 2
Intrastat country of origin Germany
Manufacturer item name blueplanet 125 NX3 L - M10
Intrastat product number (HS-code) 85044086
Manufacturer KACO new energy
Weight incl. packaging (Kg) 100.000
Amount per Pallet 3
Weight without packaging (kg) 85.000
Length without packaging (mm) 740.00
Height without packaging (mm) 330.00
Width without packaging (mm) 1023.00

Accessoires

0157614
Leaflet HEMS – blueplanet Edition Home Energy Management System
