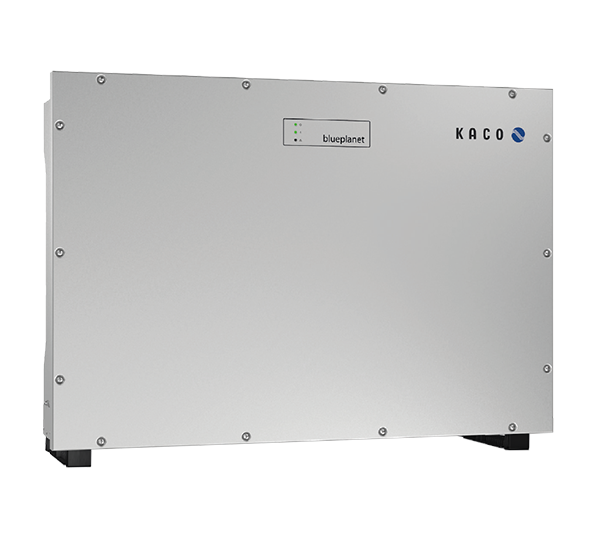

blueplanet 100 NX3 M8, version L

Product details

Product information "blueplanet 100 NX3 M8, version L"

All new devices of the M5, M8 and M10 series have now been equipped with a multi-MPP tracker concept at Kaco. This allows the direct connection of the module strings to the inverter. Complex combiner boxes are thus no longer required. With up to 30 A input current per tracker, the devices of the M8 + M10 series are ideally equipped for current module types.


Product advantages:

New Multi-MPPT concept

Up to 30 A input current per MPPT

V-curve analysis


Product Features:

AC power: 100.0 kW

Number of MPPT: 8

DC connector: Phoenix Contact Sunclix

AC connection: 3-phase

Communication: LAN, RS485, WLAN (opt. via stick)

Protection class: IP66

Cooling: active

Weight: approx. 85.0 kg

Technical details

Topology transformerless
Start input voltage (V) 250
Max. output current (A) 546.00
European efficiency (%) 98.80
Max. generator power DC (kWp) 200.00
Min. voltage range input (V) 200
Min. temperature ambient (°C) -25
Protection degree IP66
Interface 2 RS485
MPP max. voltage range input (V) 850.00
Number of independent MPPT (pcs) 8
Max. AC power (kVA) 100.00
Surge protection AC type 2
Interface 1 Ethernet
Decibel 60
Display w/o display
Max. short circuit current (A) total 300.00
Max. input current DC (A) total 240.00
Max. short circuit current per MPPT (A) 37,5
MPP min. voltage range input (V) 550.00
AC nominal power (kW) 100.00
Max. input current per MPPT (A). 30
Total number of string inputs 16
Max. input voltage DC (V) 1100.00
Arc Fault Circuit Interrupter yes
Max. efficiency (%) 99.00
DC connector type SUNCLIX
Surge protection DC type 1 and type 2
Intrastat country of origin Germany
Manufacturer item name blueplanet 100 NX3 L M8
Intrastat product number (HS-code) 85044086
Manufacturer KACO new energy
Weight incl. packaging (Kg) 100.000
Pal. dim. LxBxH (mm) 1070x840x1900
Amount per Pallet 3
Pal. weight (kg) 420.00
Weight without packaging (kg) 85.000
Length without packaging (mm) 740.00
Height without packaging (mm) 330.00
Width without packaging (mm) 1023.00
Warranty provider KACO new energy
