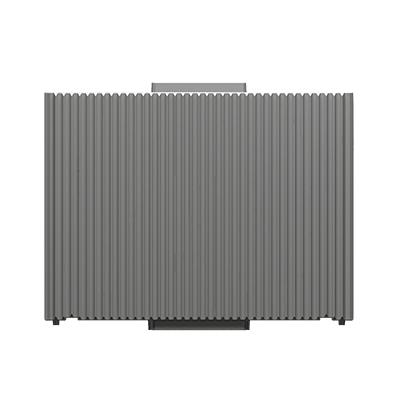

VARTA.wall 15
Product information "VARTA.wall 15"
CAUTION:
Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II
Country approvals must be checked.
With the WALL high-voltage storage system, VARTA is launching its first pure DC storage system on the market. The NCA (nickel-cobalt-aluminum) cells enable a high energy density combined with a high safety standard in accordance with VDE-AR-E 2510-50. 10 to 20 kWh of usable capacity is possible with 2 to 4 battery modules.
Product advantages:
• Attractive and space-saving design
• Certified safety in accordance with VDE-AR-E 2510-50
Product features:
• Battery capacity (usable): 15.0 kWh
• Storage type: High-voltage
• Nominal voltage: 302.4 V
• Extension time frame: 18 months
• System structure: 2 to 4 battery modules + BMS
• Cell chemistry: NCA
• Communication: CAN, RS485, Ethernet, WLAN
• Cooling: passive
• Protection class: IP55
• Dimensions: 1752 x 605 x 100 mm (H x W x D)
• Weight: BMS approx. 15.0 kg, storage 3 x 37.0 kg
• Warranty: 10 years
Compatible with:
• SMA STP Smart Energy
• Kostal Plenticore
Wichtige technische Daten
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Dangerous goods Weight (net) (kg) | 111.000 |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
Downloads
-
VARTA.wall Master Unit + Base0154888
-
VARTA.wall storage module0154887
-
VARTA.wall Master Unit + Base0154888
-
VARTA.wall storage module0154887
Technical details
| Nominal voltage DC (V) | 302.40 |
|---|---|
| Capacity extendable later | yes with time restriction |
| Battery voltage | High Voltage |
| Battery cell chemistry | NCA |
| Protection degree | IP55 |
| Usable capacity (kWh) | 15.00 |
| Intrastat country of origin | Germany |
|---|---|
| Manufacturer | VARTA |
| Dangerous goods transportation category | 2 |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Manufacturer item name | VARTA.wall battery module 5 kWh*VARTA.wall Set Master-\/Base Unit |
| Dangerous goods Weight (net) (kg) | 111.000 |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Intrastat product number (HS-code) | 85076000 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
| Weight incl. packaging (Kg) | 134.000 |
|---|
| Width without packaging (mm) | 100.00 |
|---|---|
| Length without packaging (mm) | 605.00 |
| Height without packaging (mm) | 1752.00 |
| Weight without packaging (kg) | 126.000 |
