VARTA.wall 15 + Plenticore L G3

This combination gets things moving. The ultra-flexible Kostal Plenticore G3 series with the in-house PLENTICOIN currency and the ultra-flat VARTA.wall high-voltage storage system. For the inverters with the S, M and L device variants, PLENTICOINs can be used to activate 2 higher power classes, storage usage and the intelligent connection of the EV charger. At any time. This concept enables almost universal application freedom with reduced storage requirements. With a depth of just 100 mm, the VARTA.wall is probably the flattest storage system on the market. In stacked design with up to 4 modules on top of each other, it fits behind almost any door.

Product advantages:

• Activate power and functions as required using PLENTICOINs

• 30 A input current per MPPT

• Full backup with changeover device

• Certified storage safety according to VDE 2510-50

Product features System:

• AC base power: 15.0 kW

• AC power extension level 1: 17.5 kW

• AC power extension stage 1: 20.0 kW

• Number of MPPT: 2 + 1 (PV / Bat)

• AC connection: 3-phase

• Communication: Wifi, 2 x LAN, RS485, 4 x Dig-In (FRE), 4 x Dig-Out

• Protection class: IP65

• Cooling: active

• Dimensions: 561 x 409 x 237 mm (H x W x D)

• Gewicht: 24.3 kg

Product features Storage:

• Battery capacity (usable): 15.0 kWh

• Storage type: High-voltage

• Nominal voltage: 302.4 V

• Extension time frame: 18 months

• System structure: 2 to 4 battery modules + BMS

• Cell chemistry: NCA

• Communication: CAN, RS485, Ethernet, WLAN

• Cooling: passive

• Protection class: IP55

• Dimensions: 1752 x 605 x 100 mm (H x W x D)

• Weight: BMS approx. 15.0 kg, storage 3 x 37.0 kg

• Warranty: 10 years

Activation via PLENTICOINs:

Plenticore G3 series:

Increase by one performance class (1 level) within the S / M / L appliance series -> 1 PLENTICOIN

Increase to maximum power (2 levels) within the S / M / L appliance series -> 1+1 PLENTICOIN

Activation of the storage function -> 3 PLENTICOINS

Activation of the convenience function for the Enector Wallbox -> 2 PLENTICOINS

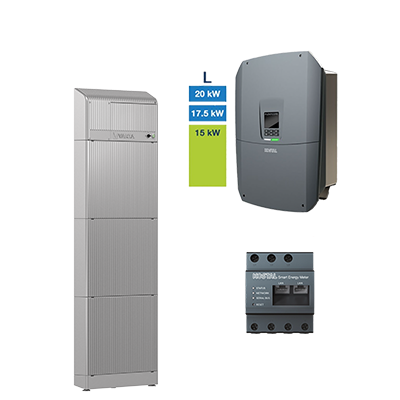

Scope of delivery:

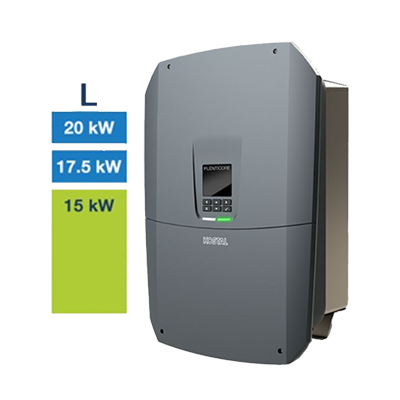

• 1 x Kostal Plenticore L G3 hybrid inverter (item 0155067)

• 1 x Kostal KSEM G2 Smart Meter (item 0151118)

• 1 x VARTA.wall BMS (item 0154888)

• 3 x VARTA.wall storage module (item 0154887)
