VARTA.wall 10 + Plenticore MP G3 M

This combination gets things moving. The flexible 1-phase Kostal Plenticore MP G3 series with the in-house PLENTICOIN currency and the ultra-flat VARTA.wall high-voltage storage system. For inverters with the S and M device variants, PLENTICOINs can be used to activate higher power classes, storage usage and the intelligent connection of the EV charger. At any time. This concept enables almost universal application freedom with reduced storage requirements. With a depth of just 100 mm, the VARTA.wall is probably the flattest storage system on the market. In stacked design with up to 4 modules on top of each other, it fits behind almost any door.

Product advantages:

• Activate power and functions as required using PLENTICOINs

• 17 A input current per MPPT

• Full backup with external switching device

• Certified storage safety according to VDE 2510-50

Product features System:

• AC base power: 5.0* kW

• AC power extension level 1: 6.0 kW

• AC power extension stage 2: 7.0 kW

• AC connection: 230 V, 1-phase

• Number of MPPT: 2 + 1 (PV / Bat)

• MPPT input voltage: 75 - 900 V

• Overvoltage protection: DC type 2 to be added as an option

• Communication: Wifi, 2 x LAN, RS485, 4 x Dig-In (FRE), 4 x Dig-Out

• Protection class: IP65

• Cooling: active

• Dimensions: 561 x 409 x 237 mm (H x W x D)

• Weight: 20.3 kg

*throttled to 4.6 kVA in accordance with VDE-AR-N 4105 in DE

Product features Storage:

• Battery capacity (usable): 10.0 kWh

• Storage type: High-voltage

• Nominal voltage: 201.6 V

• Extension time frame: 18 months

• System structure: 2 to 4 battery modules + BMS

• Cell chemistry: NCA

• Communication: CAN, RS485, Ethernet, WLAN

• Cooling: passive

• Protection class: IP55

• Dimensions: 1306 x 605 x 100 mm (H x W x D)

• Weight: BMS approx. 15.0 kg, storage 2 x 37.0 kg

• Warranty: 10 years

Adjustments without PLENTICOINs:

The power extension for version S and the basic power for version M are freely selectable to a small extent, e.g. to comply with local grid connection specifications (version M with 4.6 instead of 5.0 kVA in accordance with VDE-AR-N 4105 in DE).

Activation via PLENTICOINs:

Increase by one power class (1 level) within the S / M device series -> 1 PLENTICOIN

Increase to maximum power (2 levels) within the M appliance series -> 1+1 PLENTICOIN

Activation of the storage function -> 2 PLENTICOINS

Activation of comfort function (excess charging wallbox, §14a, etc.) -> 2 PLENTICOINS

Scope of delivery:

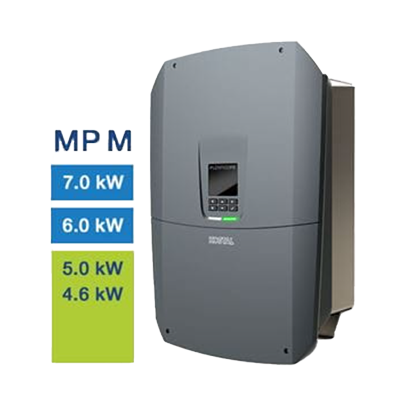

• 1 x Kostal Plenticore MP M G3 hybrid inverter (item 0159083)

• 1 x Kostal KSEM G2 Smart Meter (item 0151118)

• 1 x VARTA.wall BMS (item 0154888)

• 2 x VARTA.wall storage module (item 0154887)
