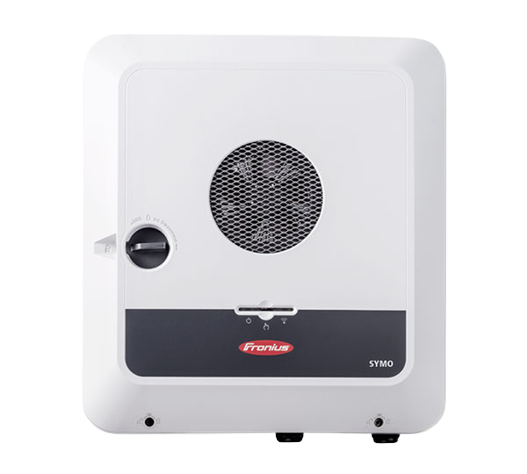

Symo GEN24 8.0 plus
Hybrid inverter, 2 MPPT, 3-phase
Art-No.
0132172
Manufacturer No.
4,210,155,002
Product details
Product information "Symo GEN24 8.0 plus"
***An internet connection is required for this product***
Even an innovative system like the Fronius GEN24 constantly needs new impulses for improvement. The Primo and Symo series are now available with the storage connection still deactivated at the factory. You decide for yourself whether and when you want to use this function by means of an activation code. Of course, you will still receive the familiar version with the battery port already activated - distinguished by the “plus” after the GEN24 in the device name. The smart PV-Point emergency power connection with a maximum output power of 3 kW is active in every version. All other functions and interfaces remain the same.
Product advantages:
• Storage connection already activated

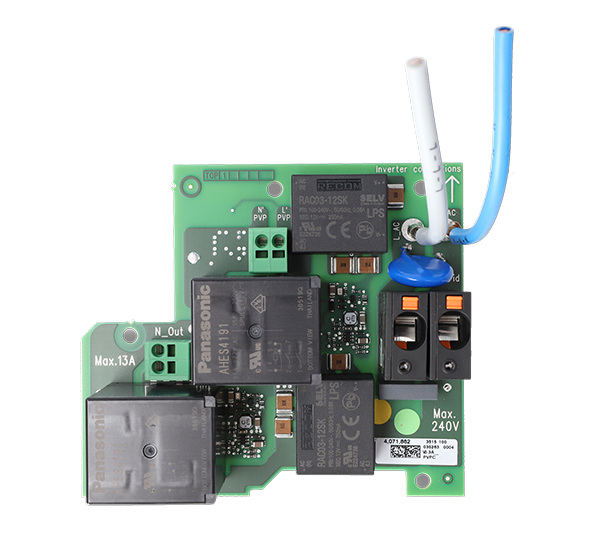

• Emergency power via Fronius PV-Point

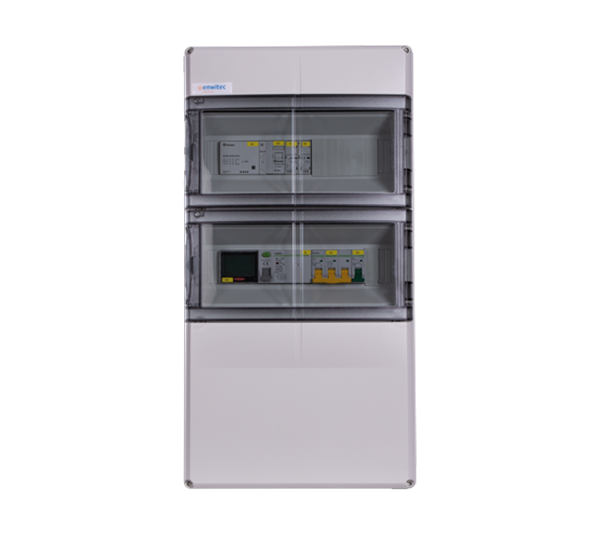

• Backup power possible with Enwitec switchover device
Product features:
• AC power: 8.0 kW
• Number of MPPT: 2
• DC input current: MPPT 1 - 25.0 A, MPPT 2 - 12.5 A
• Battery connection: active
• AC connection: 3-phase
• Communication: WLAN, 2 x Ethernet, 2 x RS485
• Interfaces: 6 x DI (FRE), 6 x DO
• Protection class: IP66
• Cooling: active
• Dimensions: 595 x 529 x 180 mm (H x W x D)
• Weight: 23.4 kg
Technical details
| Topology | transformerless |
|---|---|
| Start input voltage (V) | 80 |
| Max. generator power DC (kWp) | 12.00 |
| Min. temperature ambient (°C) | -25 |
| Backup system full | yes with supply |
| Backup system light | no |
| Protection degree | IP66 |
| Number of independent MPPT (pcs) | 2 |
| Arc Fault Circuit Interrupter | no |
| Surge protection AC | type 3 |
| Max. input voltage DC (V) | 1000.00 |
| Degree of protection IP | IP66 |
| Interface 1 | RS485 |
| Battery Connection | AC/DC |
| Step-Up converter | yes |
| Charging voltage (V) | 160-500 |
| Display | w/o display |
| Decibel | 47 |
| MPP min. voltage range input (V) | 80.00 |
| Max. efficiency (%) | 98.20 |
| DC connector type | spring-type terminal |
| Integrated DC switch | yes |
| Min. voltage range input (V) | 80 |
| MPP max. voltage range input (V) | 800.00 |
| Max. short circuit current per MPPT (A) | 40\/20 |
| Total number of string inputs | 3 |
| Surge protection DC | type 2 |
| AC nominal power (kW) | 8.00 |
| Max. input current DC (A) total | 37.50 |
| Contact ripple control receiver | yes |
| Interface 2 | Ethernet |
| Contact for self-consumption optimization (e.g. for heat pump) | 4 |
| Max. input current per MPPT (A). | 25\/12,5 |
| Max. output current (A) | 11.60 |
| Max. short circuit current (A) total | 60.00 |
| European efficiency (%) | 97.80 |
| Charging current (A) | 22.00 |
| Max. AC power (kVA) | 8.00 |
| Intrastat product number (HS-code) | 85044086 |
|---|---|
| Manufacturer | Fronius |
| Intrastat country of origin | Austria |
| Manufacturer item name | Symo GEN24 Plus 8.0 |
| Weight incl. packaging (Kg) | 28.500 |
|---|---|
| Pal. weight (kg) | 410.00 |
| Length incl. packaging (cm) | 60.00 |
| Width incl. packaging (cm) | 53.00 |
| Pack. material | cardboard box |
| Amount per Pallet | 14 |
| Height incl. packaging (cm) | 18.00 |
| Pal. dim. LxBxH (mm) | 1200x800x1750 |
| Width without packaging (mm) | 529.00 |
|---|---|
| Weight without packaging (kg) | 23.400 |
| Height without packaging (mm) | 180.00 |
| Length without packaging (mm) | 595.00 |
