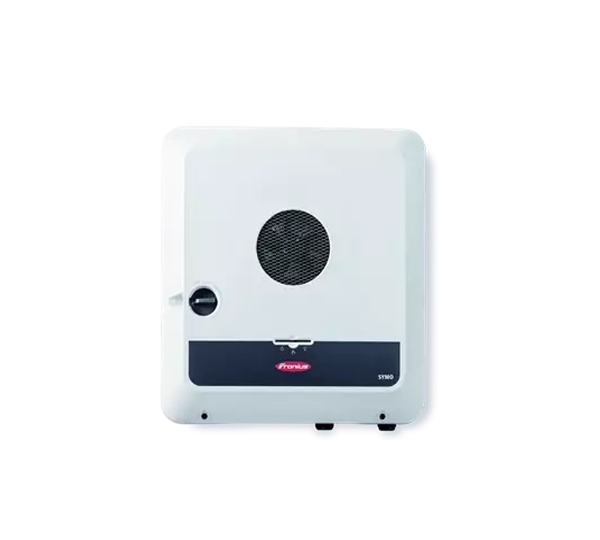

Symo GEN24 12.0 SC Plus
Product information "Symo GEN24 12.0 SC Plus"
The Symo GEN24 12.0 SC Plus is the largest member of the GEN24 family from Fronius. Like its smaller brothers, the SC is available as a fully-fledged hybrid or battery-ready. In this version, recognisable by the ‘Plus’, the storage connection is already activated ex works. Single-phase emergency power with a maximum output of 3 kW can be conveniently implemented via the integrated smart PV point. With a small upgrade, this can now also be used in continuous operation. All other functions and interfaces remain as good as ever.
Product advantages:
- Emergency power via Fronius PV-Point, optionally also for continuous use
- Backup power possible with Fronius Backup Switch and Controller
Product features:
- AC power: 12.0 kW
- AC connection: 400V, 3-phase
- Number of MPPT: 2
- DC input current: MPPT 1 - 28.0 A, MPPT 2 - 14.0 A
- Battery type: High-voltage
- Communication: WLAN, Ethernet, 2 x RS485
- Interfaces: 6 x DI (FRE), 6 x DO
- Protection class: IP66
- Cooling: active
- Dimensions: 595 x 529 x 180 mm (H x W x D)
- Weight: 22.8 kg
Technical details
| Max. AC power (kVA) | 12.00 |
|---|---|
| Start input voltage (V) | 80 |
| Min. temperature ambient (°C) | -25 |
| Backup system full | yes with supply |
| Backup system light | no |
| Protection degree | IP66 |
| Number of independent MPPT (pcs) | 2 |
| Arc Fault Circuit Interrupter | no |
| Surge protection AC | type 3 |
| AC nominal power (kW) | 12.00 |
| Max. input voltage DC (V) | 1000.00 |
| Charging voltage (V) | 160-531 |
| Degree of protection IP | IP66 |
| Interface 1 | RS485 |
| Max. input current per MPPT (A). | 28\/14 |
| Battery Connection | AC/DC |
| European efficiency (%) | 97.90 |
| Display | w/o display |
| Max. output current (A) | 17.40 |
| Max. input current DC (A) total | 42.00 |
| Decibel | 47 |
| MPP min. voltage range input (V) | 80.00 |
| Max. efficiency (%) | 98.20 |
| DC connector type | spring-type terminal |
| Integrated DC switch | yes |
| Min. voltage range input (V) | 80 |
| MPP max. voltage range input (V) | 800.00 |
| Max. short circuit current per MPPT (A) | 40\/20 |
| Total number of string inputs | 3 |
| Surge protection DC | type 2 |
| Max. generator power DC (kWp) | 18.00 |
| Contact ripple control receiver | yes |
| Interface 2 | Ethernet |
| Contact for self-consumption optimization (e.g. for heat pump) | 3 |
| Max. short circuit current (A) total | 60.00 |
| Charging current (A) | 22.00 |
| Manufacturer item name | Symo GEN24 12.0 PLUS SC |
|---|---|
| Intrastat product number (HS-code) | 85044086 |
| Manufacturer | Fronius |
| Intrastat country of origin | Austria |
| Weight incl. packaging (Kg) | 28.000 |
|---|---|
| Length incl. packaging (cm) | 60.00 |
| Width incl. packaging (cm) | 53.00 |
| Pack. material | cardboard box |
| Amount per Pallet | 14 |
| Height incl. packaging (cm) | 18.00 |
| Pal. dim. LxBxH (mm) | 1200x800x1750 |
| Width without packaging (mm) | 529.00 |
|---|---|
| Weight without packaging (kg) | 22.800 |
| Height without packaging (mm) | 180.00 |
| Length without packaging (mm) | 595.00 |
| Warranty provider | Fronius |
|---|
