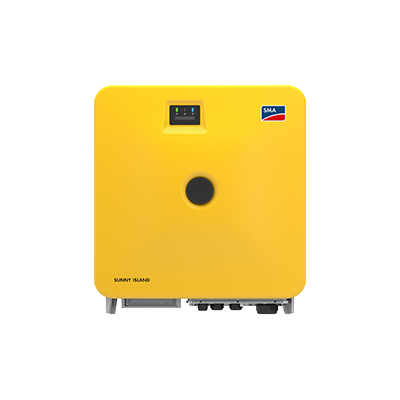

Sunny Island X 30-20, 30 kW
Product information "Sunny Island X 30-20, 30 kW"
Is your customer planning a grid-parallel commercial system from small to really large? This is a case for the new Sunny Island X. The flexible high-voltage storage inverter with 30 or 50 kW follows in the footsteps of its predecessors and is compatible with many battery manufacturers. Its areas of application range from self-consumption and peak shaving to combined multi-use mode. The integrated system manager supports up to 11 devices in the system. For larger applications, the SMA Datamanager M (EDMM-20) creates space for up to 50 devices.
Product advantages:
• Can be used for ON- and OFF-grid* applications
• Can be used flexibly with many storage manufacturers
• Integrated system manager (up to 11 devices, up to 50 with SMA Data Manager M, EDMM-20)
Product features:
• AC power: 30 kW
• Grid connection: 3-phase
• Application: Peak shaving, self-consumption increase, multi-use
• Visualization: SMA Sunny Portal ennexOS
• Communication: Modbus (SMA, Sunspec), SMA Speedwire, Webconnect
• Display: no
• Cooling: active
• Noise level: 69 dB
• Topology: transformerless
• Certification: VDE 4105 / 4110
• Protection class: IP65
• Dimensions: 772 x 838 x 444 mm (W x H x D)
• Weight: 104.0 kg
• System warranty: 10 years (after registration)
*Additional components required, these must be requested separately and purchased from a third-party supplier
Technical details
| Topology | transformerless |
|---|---|
| AC nominal power (kW) | 30.00 |
| Charging voltage (V) | 200-980 |
| Min. temperature ambient (°C) | -25 |
| Protection degree | IP65 |
| Max. output current (A) | 45.60 |
| Contact for self-consumption optimization (e.g. for heat pump) | 1 |
| Backup system full | no |
| Interface 1 | Ethernet |
| Charging current (A) | 150.00 |
| Decibel | 69 |
| Display | w/o display |
| Battery voltage | High Voltage |
| Max. efficiency (%) | 98.00 |
| Max. AC power (kVA) | 30.00 |
| Offgrid usable | yes |
| Intrastat country of origin | Germany |
|---|---|
| Manufacturer | SMA |
| Intrastat product number (HS-code) | 85044086 |
| Manufacturer item name | Sunny Island X 30 |
| Amount per Pallet | 1 |
|---|---|
| Pal. dim. LxBxH (mm) | 1150x850x640 |
| Pal. weight (kg) | 129.50 |
| Pack. material | cardboard box |
| Width incl. packaging (cm) | 85.00 |
| Amount p. Cont. | 112 |
| Weight incl. packaging (Kg) | 129.500 |
| Height incl. packaging (cm) | 64.00 |
| Length incl. packaging (cm) | 115.00 |
| Amount Pal. p. Cont. | 112 |
| Width without packaging (mm) | 772.00 |
|---|---|
| Height without packaging (mm) | 444.00 |
| Length without packaging (mm) | 837.00 |
| Weight without packaging (kg) | 104.000 |
