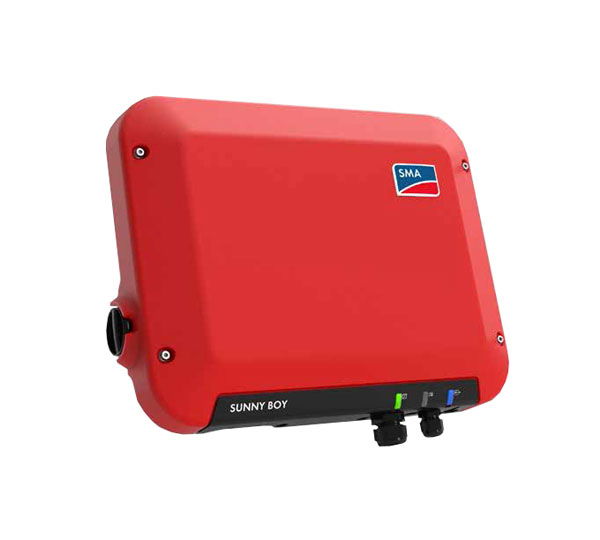

Sunny Boy 2.5-1VL-40
PV inverter, 1 MPPT, 1-phase
Art-No.
0123667
Manufacturer No.
SB2.5-1VL-40
Product details
Product information "Sunny Boy 2.5-1VL-40"
The classic for small systems - the SMA Sunny Boy. Always the right choice in power classes from 1.5 to 6.0 kW*. Ideally combined with the SMA Home Manager for self-consumption recording.
*Regulation according to VDE-AR-N 4105 to max. 4.6 kVA
Product features:
• AC power: 2.5 kW
• AC connection: 230 V, 1-phase
• Number of MPPT: 1
• DC connector: SUNCLIX (included in the scope of delivery)
• Communication: WLAN, Ethernet
• Protection class: IP65
• Cooling: passive
• Warranty: 10 years (device registration via the SMA product registration homepage sma-service.com)
• Dimensions: 460 x 357 x 122 mm (W x H x D)
• Weight: 9.2 kg
Technical details
| Max. output current (A) | 11.00 |
|---|---|
| Topology | transformerless |
| Surge protection DC | no |
| Start input voltage (V) | 80 |
| European efficiency (%) | 96.70 |
| Min. temperature ambient (°C) | -40 |
| Max. efficiency (%) | 97.20 |
| Interface 2 | W-Lan |
| Protection degree | IP65 |
| Max. input voltage DC (V) | 600.00 |
| Max. short circuit current per MPPT (A) | 18 |
| MPP max. voltage range input (V) | 500.00 |
| Decibel | 25 |
| Arc Fault Circuit Interrupter | no |
| Contact ripple control receiver | no |
| Max. AC power (kVA) | 2.50 |
| MPP min. voltage range input (V) | 260.00 |
| Max. input current per MPPT (A). | 10 |
| Interface 1 | Ethernet |
| Rapid shutdown | no |
| Step-Up converter | yes |
| Surge protection AC | no |
| Max. input current DC (A) total | 10.00 |
| Display | w/o display |
| Total number of string inputs | 1 |
| Number of independent MPPT (pcs) | 1 |
| Degree of protection IP | IP65 |
| Min. voltage range input (V) | 50 |
| Max. short circuit current (A) total | 18.00 |
| AC nominal power (kW) | 2.50 |
| Integrated DC switch | yes |
| Max. generator power DC (kWp) | 5.00 |
| Integrated AC switch | no |
| Shadow management | yes |
| DC connector type | SUNCLIX |
| String fuses | not included |
| Intrastat country of origin | Germany |
|---|---|
| Manufacturer item name | Sunny Boy 2.5 |
| Intrastat product number (HS-code) | 85044085 |
| Manufacturer | SMA |
| Width incl. packaging (cm) | 59.50 |
|---|---|
| Height incl. packaging (cm) | 16.50 |
| Length incl. packaging (cm) | 39.50 |
| Pack. material | cardboard box |
| Pal. dim. LxBxH (mm) | 1200x800x1810 |
| Weight incl. packaging (Kg) | 10.500 |
| Amount per Pallet | 40 |
| Pal. weight (kg) | 432.00 |
| Length without packaging (mm) | 357.00 |
|---|---|
| Weight without packaging (kg) | 9.200 |
| Width without packaging (mm) | 460.00 |
| Height without packaging (mm) | 122.00 |
| Warranty provider | SMA |
|---|---|
| Product warranty (yr) | 5 |
