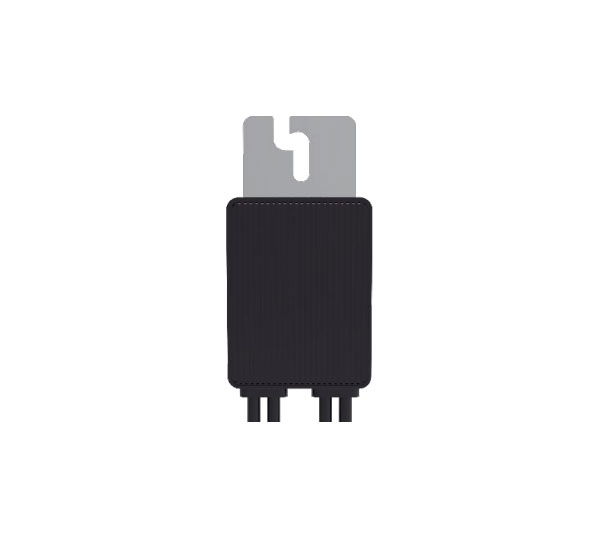

Smart PV optimizer 450W
Product information "Smart PV optimizer 450W"
With its Smart PV optimizers, Huawei adds the proverbial cherry on top of the cake. They can be used for both partial and full optimization and all application types are available without additional cabling. Even the previously fixed function of extra-long strings is now possible. Depending on the inverter model, up to 35 modules (with full optimization) per string are possible. The integrated arc detection provides a significant safety bonus. Of course, visualization takes place in the Huawei FusionSolar portal including app.
Product advantages:
• The smart addition to your Huawei home storage system
• Can also be used for partial application
• Long strings possible with full optimization
• Integrated arc detection
• Monitoring in the Huawei App
Product features:
• Rated input power: 450 W
• Short circuit current Isc: 14.5 A
• MPP max. voltage range input: 80 V
• MPP min. voltage range input: 10 V
• Max. input voltage DC: 80 V
• Interface: MBus/ Powerline
• DC connector type: MC4
• Length of cable output plus: 130 cm
• Weight: 0.600 kg
• Warranty: 25 years
• Compatible with: Huawei SUN2000 KTL-L1, -M1, -M2, -M3 (up to 40KTL only)
Technical details
| DC connector type | MC4 |
|---|---|
| Short circuit current Isc (A) | 14.50 |
| MPP min. voltage range input (V) | 10.00 |
| Rated input power (W) | 450 |
| Max. input voltage DC (V) | 80.00 |
| Length of cable output minus (cm) | 130.00 |
| MPP max. voltage range input (V) | 80.00 |
| Protection degree | IP68 |
| Length of cable output plus (cm) | 130.00 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer item name | SUN2000-450W-P2 |
| Manufacturer | Huawei |
| Intrastat product number (HS-code) | 85044095 |
| Pal. dim. LxBxH (mm) | 1200x800x1105 |
|---|---|
| Weight incl. packaging (Kg) | 0.700 |
| Amount per big Box | 20 |
| Width incl. packaging (cm) | 18.00 |
| Length incl. packaging (cm) | 32.00 |
| Amount per Pallet | 360 |
| Pack. material | cardboard box |
| Height incl. packaging (cm) | 3.00 |
| Width without packaging (mm) | 75.00 |
|---|---|
| Weight without packaging (kg) | 0.600 |
| Height without packaging (mm) | 28.00 |
| Length without packaging (mm) | 140.00 |
