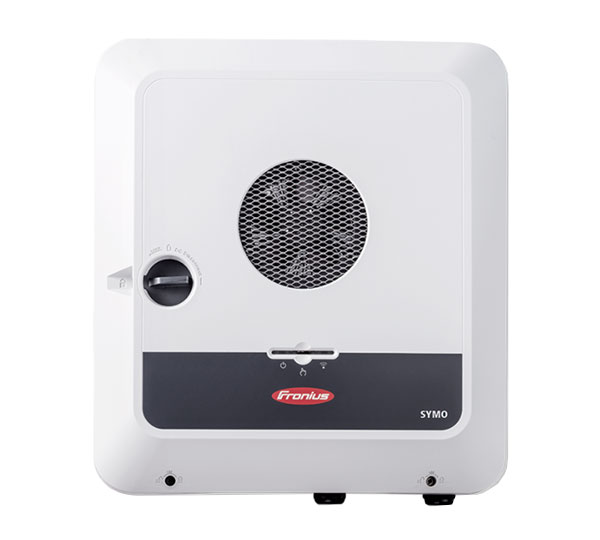

SYMO GEN24 6.0
Product information "SYMO GEN24 6.0"
***the hybrid function can be purchased for a fee using an activation code from Fronius Online***
***An internet connection is required for this product***
**cannot be used in Finland, Denmark and Ireland**
Even an innovative system like the Fronius GEN24 constantly needs new impulses for improvement. As of now, the Primo and Symo series are available with the storage connection still deactivated at the factory. You decide for yourself whether and when you want to use this function by means of an activation code. Of course, they will continue to receive the familiar version with already enabled battery port - distinguishable by the "plus" after the GEN24 in the device name. The smart PV-Point emergency power connection with a maximum output power of 3 kW is active in every version. All other functions and interfaces remain proven good.
Product advantages:
• Storage connection can be activated at any time
• Emergency power via Fronius PV-Point always active
• Backup power possible with Enwitec switching device (activation required)
Product features:
• AC power: 6.0 kW
• Number of MPPT: 2
• DC input current: MPPT 1 - 25.0 A, MPPT 2 - 12.5 A
• AC connection: 3-phase
• Communication: WLAN, 2 x Ethernet, 2 x RS485
• Interfaces: 6 x DI (FRE), 6 x DO
• Protection class: IP66
• Cooling: active
• Dimensions: 595 x 529 x 180 mm (H x W x D)
• Weight: 23.4 kg
Technical details
| Topology | transformerless |
|---|---|
| Start input voltage (V) | 80 |
| Min. temperature ambient (°C) | -25 |
| Backup system full | yes with supply |
| Backup system light | no |
| Protection degree | IP66 |
| Number of independent MPPT (pcs) | 2 |
| Arc Fault Circuit Interrupter | no |
| Surge protection AC | type 3 |
| Max. generator power DC (kWp) | 9.00 |
| Max. input voltage DC (V) | 1000.00 |
| Charging voltage (V) | 160-531 |
| Degree of protection IP | IP66 |
| Interface 1 | RS485 |
| Max. output current (A) | 9.10 |
| Max. AC power (kVA) | 6.00 |
| Battery Connection | AC/DC |
| Step-Up converter | yes |
| Display | w/o display |
| Decibel | 47 |
| MPP min. voltage range input (V) | 80.00 |
| Max. efficiency (%) | 98.20 |
| DC connector type | spring-type terminal |
| Integrated DC switch | yes |
| Min. voltage range input (V) | 80 |
| MPP max. voltage range input (V) | 800.00 |
| Max. short circuit current per MPPT (A) | 40\/20 |
| Total number of string inputs | 3 |
| Surge protection DC | type 2 |
| Max. input current DC (A) total | 37.50 |
| Contact ripple control receiver | yes |
| Interface 2 | Ethernet |
| Contact for self-consumption optimization (e.g. for heat pump) | 4 |
| Max. input current per MPPT (A). | 25\/12,5 |
| Max. short circuit current (A) total | 60.00 |
| AC nominal power (kW) | 6.00 |
| Charging current (A) | 22.00 |
| European efficiency (%) | 97.70 |
| Intrastat product number (HS-code) | 85044085 |
|---|---|
| Manufacturer item name | Symo GEN24 6.0 |
| Manufacturer | Fronius |
| Intrastat country of origin | Austria |
| Weight incl. packaging (Kg) | 28.500 |
|---|---|
| Length incl. packaging (cm) | 60.00 |
| Width incl. packaging (cm) | 53.00 |
| Pack. material | cardboard box |
| Amount per Pallet | 14 |
| Height incl. packaging (cm) | 18.00 |
| Pal. dim. LxBxH (mm) | 1200x800x1750 |
| Width without packaging (mm) | 529.00 |
|---|---|
| Weight without packaging (kg) | 23.400 |
| Height without packaging (mm) | 180.00 |
| Length without packaging (mm) | 595.00 |
