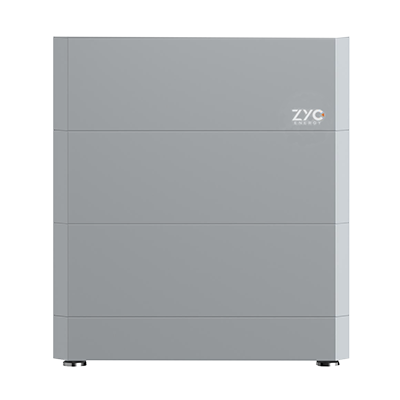

SIMPO HV 6.4
Product information "SIMPO HV 6.4"
CAUTION:
Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II
Wireless, screwless, carefree - this is how the installation of the new SIMPO HV storage system from ZYC works. The proven stacking concept enables up to 28.8 kWh of usable capacity per unit. And that's not all - up to 8 towers with a total of 230.4 kWh can be connected in parallel. The field of application therefore ranges from residential to small commercial systems.
Product advantages:
• Efficient, compact stacked design
• Cable and screwless design
• Up to 8 towers can be cascaded (230.8 kWh)
• Certified battery safety in accordance with VDE 2510-50
Product features Storage:
• Battery capacity (usable): 6.4 kWh
• Extension time window: unlimited
• Cell chemistry: LFP
• Interfaces: CAN 2.0A, Modbus RS485
• System configuration: 2 - 9 storage modules
• Cascadable: up to 8 towers in parallel
• Rated voltage: 128 V
• Protection class: IP65
• Dimensions: 670 x 610 x 240 mm (H x W x D)
• Weight: BMS + base: 20.0 kg, 2 x storage unit 36.0 kg each
• Warranty: 10 years
Scope of delivery:

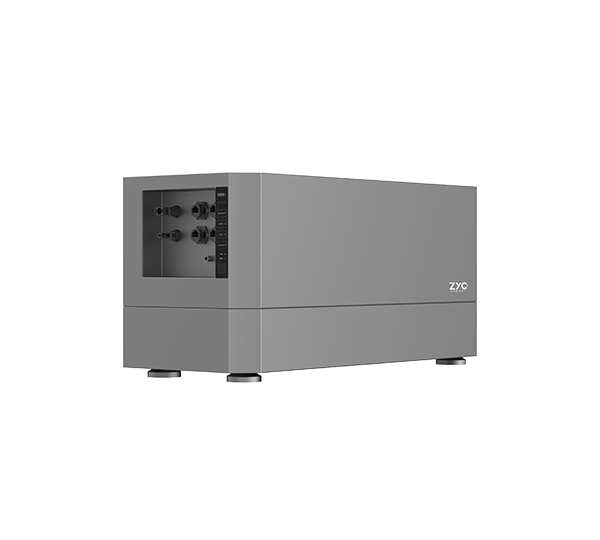

• 1 x ZYC SIMPO HV Battery Management System (item 0157730)

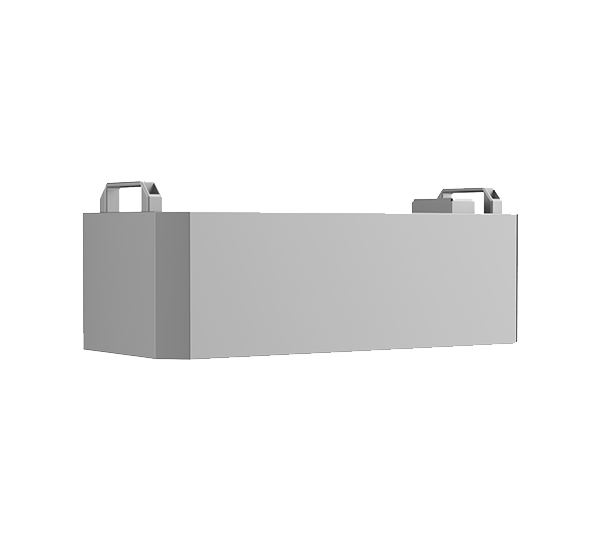

• 2 x ZYC SIMPO HV storage module (item 0157729)
Wichtige technische Daten
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods Weight (net) (kg) | 72.000 |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
Downloads
-
SIMPO HV 3.20157729
-
SIMPO HV BMS-Unit0157730
-
SIMPO HV 3.20157729
-
SIMPO HV BMS-Unit0157730
Technical details
| Protection degree | IP65 |
|---|---|
| Min. temperature ambient (°C) | -10 |
| Capacity extendable later | yes without restriction |
| Max. output current charging (A) | 30.00 |
| Cell chemistry | LFP |
| Battery voltage | High Voltage |
| Battery cell chemistry | LFP |
| Usable capacity (kWh) | 6.40 |
| Max. output current discharging (A) | 30.00 |
| Nominal voltage DC (V) | 128.00 |
| Intrastat country of origin | China |
|---|---|
| Dangerous goods transportation category | 2 |
| Manufacturer | ZYC Energy |
| Dangerous goods Weight (net) (kg) | 72.000 |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Manufacturer item name | SIMPO HV-Block 3.2*SIMPO HV-BMS |
| Classification code | M4 |
| Intrastat product number (HS-code) | 85076000 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
| Weight incl. packaging (Kg) | 95.360 |
|---|
| Length without packaging (mm) | 240.00 |
|---|---|
| Height without packaging (mm) | 670.00 |
| Width without packaging (mm) | 610.00 |
| Weight without packaging (kg) | 91.360 |
