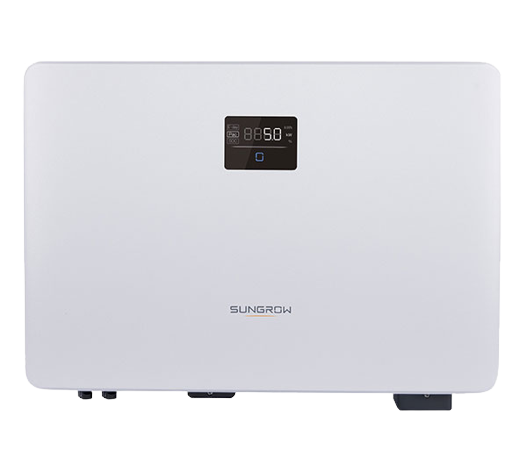

SH3.0RS-V11 **not DE/AT/CH**
Product information "SH3.0RS-V11 **not DE/AT/CH**"
***WiNet module and 1-phase meter are included in delivery***
***not suitable for DE, AT, CH***
Flexible Application:
- 80~460V wide battery voltage range
- Ideal for both retrofitting and new installations
- Built-in smart PID recovery function
User Friendly Setup:
- Plug and play installation
- iSolarCloud monitoring available on App and Web
- Lightweight and compact, optimized for heat-dissipation
Energy Independence:
- Seamless transition to backup mode, for protection against power outages
- Fast charging or discharging, enabing higher self-consumption results
- Built-in EMS with advanced customization
Smart Management:
- Real time data (10 seconds refresh sample)
- 24/7 live monitoring both online and with integrated display
- Online IV curve scan and diagnosis
Technical details
| Topology | transformerless |
|---|---|
| Max. efficiency (%) | 97.40 |
| Min. temperature ambient (°C) | -25 |
| Protection degree | IP65 |
| Max. input voltage DC (V) | 600.00 |
| Number of independent MPPT (pcs) | 2 |
| Display | with display |
| Max. short circuit current (A) total | 40.00 |
| Charging voltage (V) | 80V-460V |
| Arc Fault Circuit Interrupter | no |
| Total number of string inputs | 2 |
| Max. input current DC (A) total | 32.00 |
| Surge protection AC | type 2 |
| Interface 1 | RS485 |
| MPP min. voltage range input (V) | 40.00 |
| Battery Connection | AC/DC |
| Step-Up converter | yes |
| Charging current (A) | 30.00 |
| Start input voltage (V) | 50 |
| Min. voltage range input (V) | 40 |
| Max. short circuit current per MPPT (A) | 20,0 |
| Degree of protection IP | IP65 |
| MPP max. voltage range input (V) | 560.00 |
| Max. AC power (kVA) | 3.00 |
| AC nominal power (kW) | 3.00 |
| Integrated DC switch | yes |
| Surge protection DC | type 2 |
| Interface 2 | Ethernet |
| Max. output current (A) | 13.70 |
| European efficiency (%) | 97.00 |
| Max. generator power DC (kWp) | 10.00 |
| Max. input current per MPPT (A). | 16,0 |
| Intrastat country of origin | China |
|---|---|
| Intrastat product number (HS-code) | 85044085 |
| Manufacturer | Sungrow |
| Manufacturer item name | SH3.0RS |
| Amount Pal. p. Cont. | 52 |
|---|---|
| Length incl. packaging (cm) | 59.20 |
| Width incl. packaging (cm) | 47.20 |
| Amount per Pallet | 12 |
| Pack. material | cardboard box |
| Height incl. packaging (cm) | 32.10 |
| Weight incl. packaging (Kg) | 19.000 |
| Amount p. Cont. | 624 |
| Pal. dim. LxBxH (mm) | 1200x1000x1107 |
| Width without packaging (mm) | 340.00 |
|---|---|
| Weight without packaging (kg) | 18.500 |
| Height without packaging (mm) | 170.00 |
| Length without packaging (mm) | 490.00 |
