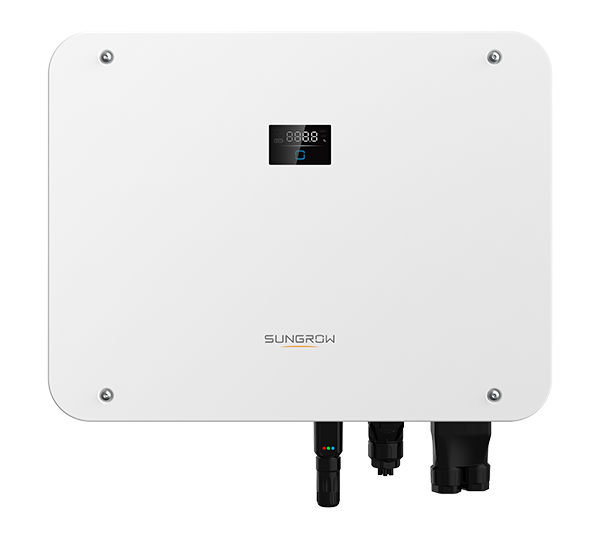

SH15T-V11
Product information "SH15T-V11"

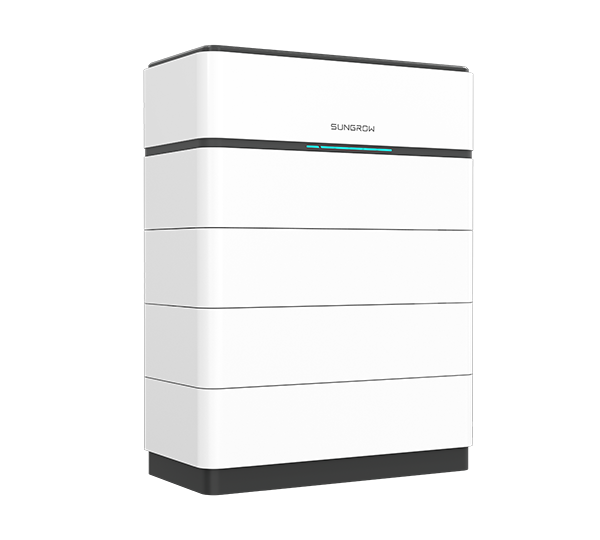

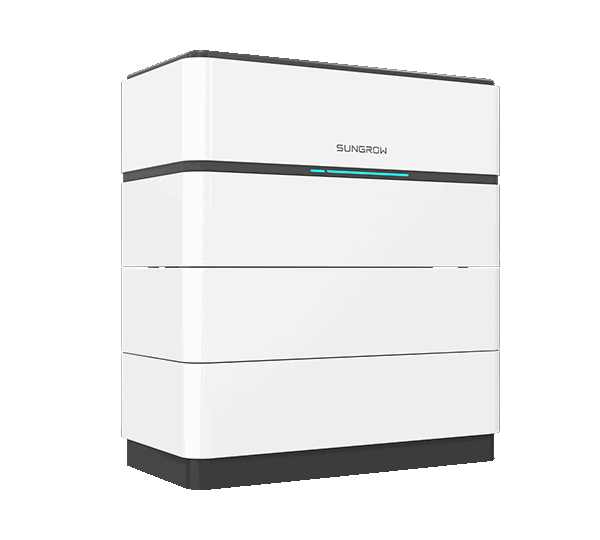

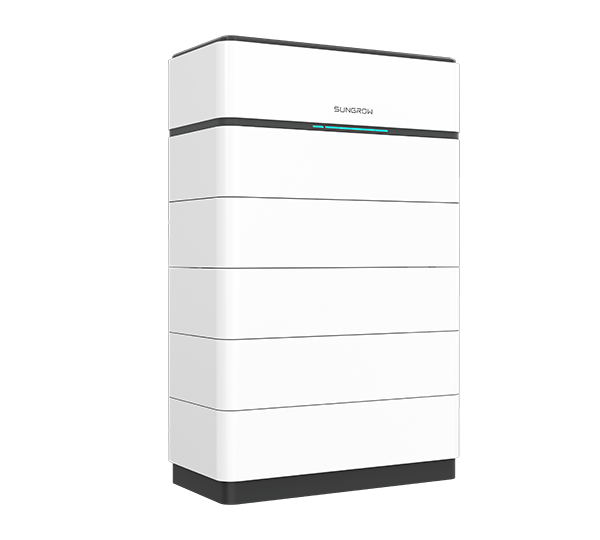

Due to the high charging currents when combining the SBH storage system with the SHxxT hybrid inverter, a flexible PV cable with a cross-section of 10 mm² and a dielectric strength of up to 1000 V is required.
WiNet Dongle, Energy Meter and 3 x CT are included in delivery.
With the SH-T Hybrid series, Sungrow is entering the power classes from 15 to 25 kW. 3 MPP trackers with high input currents and high charging currents to the storage create the best performance paths. Thanks to the extra-strong backup bypass with up to 63 amps, the entire house can be connected to the system's backup power connection. The proven full equipment for communication and control contacts for FRE and heat pump is of course on board.
Product advantages:
• Suitable for high-performance modules
• AC + DC overvoltage protection type 2 integrated
• Backup connection up to 63 A possible
• Backup switching time <10 ms
Product features:
• AC power: 15.0 kW
• Number of MPPTs: 3
• DC input current: 32 A (MPPT 1 + 2), 16 A (MPPT 3)
• Number of storage connections: 1 *
• AC connection: 400V, 3-phase
• Communication: Wifi, LAN, RS485, CAN, 4 x DI (FRE), 2 x DO
• Protection class: IP65
• Cooling: passive
• Dimensions: 480 x 620 x 245 mm (L x W x H)
• Weight: 38.0 kg
• Warranty: 10 years
• WiNet dongle, energy meter and 3 x CT are included in delivery
*current approvals for storage and use the memory connections
Technical details
| Topology | transformerless |
|---|---|
| Max. generator power DC (kWp) | 30.00 |
| Min. voltage range input (V) | 150 |
| Max. short circuit current per MPPT (A) | 40,0\/40,0\/20,0 |
| MPP min. voltage range input (V) | 150.00 |
| Min. temperature ambient (°C) | -25 |
| Protection degree | IP65 |
| Max. input voltage DC (V) | 600.00 |
| Display | with display |
| Charging current (A) | 50.00 |
| Number of independent MPPT (pcs) | 3 |
| Max. AC power (kVA) | 150.00 |
| Surge protection AC | type 2 |
| Interface 1 | RS485 |
| Battery Connection | AC/DC |
| MPP max. voltage range input (V) | 950.00 |
| Max. short circuit current (A) total | 100.00 |
| Step-Up converter | yes |
| Degree of protection IP | IP65 |
| Start input voltage (V) | 180 |
| Max. output current (A) | 22.80 |
| Max. input current per MPPT (A). | 32,0\/32,0\/16,0 |
| Max. efficiency (%) | 98.10 |
| Integrated DC switch | yes |
| Total number of string inputs | 5 |
| Surge protection DC | type 2 |
| AC nominal power (kW) | 15.00 |
| Interface 2 | Ethernet |
| Arc Fault Circuit Interrupter | yes |
| European efficiency (%) | 97.60 |
| Max. input current DC (A) total | 80.00 |
| Charging voltage (V) | 100V-700V |
| Intrastat country of origin | China |
|---|---|
| Intrastat product number (HS-code) | 85044086 |
| Manufacturer | Sungrow |
| Manufacturer item name | SH15T |
| Weight incl. packaging (Kg) | 44.500 |
|---|---|
| Amount per Pallet | 4 |
| Width incl. packaging (cm) | 59.00 |
| Amount Pal. p. Cont. | 50 |
| Pal. dim. LxBxH (mm) | 1200x800x948 |
| Pack. material | cardboard box |
| Height incl. packaging (cm) | 41.10 |
| Length incl. packaging (cm) | 73.50 |
| Amount p. Cont. | 200 |
| Weight without packaging (kg) | 38.000 |
|---|---|
| Height without packaging (mm) | 245.00 |
| Length without packaging (mm) | 620.00 |
| Width without packaging (mm) | 480.00 |
