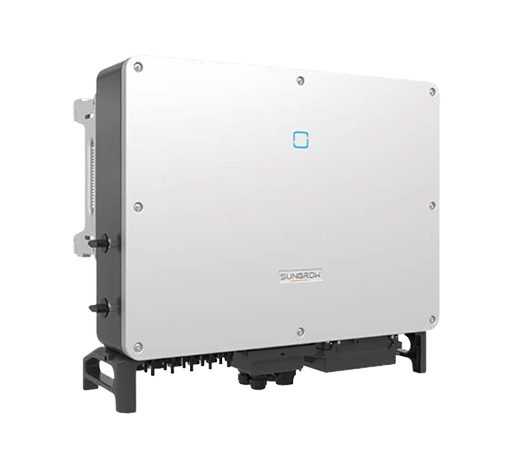

SG33CX-V112
string inverter SG33CX-V112
Art-No.
0144549
Manufacturer No.
ASG01342
Product details
Product information "SG33CX-V112"
Difference to the SG33CX:
- Arc detection
- Overvoltage protection type I and II on the DC side
High Yield:
- 3 MPPTs with max. efficiency 98.6%
- Compatible with bifacial module
- Built-in PID recovery function optional
Low Cost:
- Compatible with Al and Cu AC cables
- DC 2 in 1 connection enabled
- Cable free communication with optional Wi-Fi
Smart O&M:
- Touch free commissioning and remote firmware upgrade
- Online IV curve scan and diagnosis (only compatible with Sungrow logger (Krannich item 0131199), EyeM4 and iSolarCloud)
- Fuse free design with smart string current monitoring
Proven Safety:
- IP66 and C5 protection
- Type II SPD for both DC and AC
- Compliant with global safety and grid code
Technical details
| Topology | transformerless |
|---|---|
| Start input voltage (V) | 250 |
| DC connector type | MC4 |
| Total number of string inputs | 6 |
| Max. short circuit current (A) total | 120.00 |
| Max. short circuit current per MPPT (A) | 40,0 |
| Min. voltage range input (V) | 200 |
| Max. AC power (kVA) | 36.30 |
| Protection degree | IP66 |
| AC nominal power (kW) | 33.00 |
| Number of independent MPPT (pcs) | 3 |
| Surge protection AC | type 2 |
| Degree of protection IP | IP66 |
| Interface 1 | RS485 |
| Max. efficiency (%) | 98.60 |
| Max. input current DC (A) total | 78.00 |
| Step-Up converter | yes |
| Display | w/o display |
| Max. generator power DC (kWp) | 49.50 |
| MPP min. voltage range input (V) | 200.00 |
| Integrated DC switch | yes |
| Min. temperature ambient (°C) | -30 |
| European efficiency (%) | 98.30 |
| Max. input voltage DC (V) | 1100.00 |
| Max. output current (A) | 55.20 |
| Integrated AC switch | no |
| Arc Fault Circuit Interrupter | yes |
| Max. input current per MPPT (A). | 26,0 |
| MPP max. voltage range input (V) | 1000.00 |
| Surge protection DC | type 1 and type 2 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer item name | SG33CX |
| Intrastat product number (HS-code) | 85044086 |
| Manufacturer | Sungrow |
| Amount per Pallet | 4 |
|---|---|
| Pack. material | cardboard box |
| Pal. weight (kg) | 130.00 |
| Weight incl. packaging (Kg) | 85.000 |
| Amount Pal. p. Cont. | 38 |
| Height without packaging (mm) | 310.00 |
|---|---|
| Weight without packaging (kg) | 50.000 |
| Width without packaging (mm) | 702.00 |
| Length without packaging (mm) | 595.00 |
