SE10K-RWS STOREDGE HYBRID
StorEdge Three Phase Inverter
Art-No.
0144197
Manufacturer No.
SE10K-RWS48BEN4
Product details
Product information "SE10K-RWS STOREDGE HYBRID"
***3-phase RWS Hybrid-WR compatible with SolarEdge Home Battery, BYD LVS and LG RESU 6.5 - 12.***
***A suitable battery connection cable must be selected separately.***
- Simple installation with single inverter for managing both PV production and battery storage
- More energy using DC-coupled solution architecture that stores PV power directly to the battery without AC conversion losses
- Quick and easy inverter commissioning directly from a smartphone using the SolarEdge SetApp
- Designed to eliminate high voltage during installation, maintenance or firefighting for enhanced safety
- Built-in module-level monitoring and full visibility of battery status, PV production, and self-consumption data
- Allows connection of low voltage 48V batteries from multiple battery vendors to provide greater flexibility
Technical details
| Topology | transformerless |
|---|---|
| Charging voltage (V) | 40V-62V |
| Max. input current DC (A) total | 16.50 |
| Decibel | 50 |
| Min. temperature ambient (°C) | -40 |
| Step-Up converter | no |
| Protection degree | IP65 |
| AC nominal power (kW) | 10.00 |
| Arc Fault Circuit Interrupter | no |
| Total number of string inputs | 2 |
| Max. input voltage DC (V) | 900.00 |
| Max. AC power (kVA) | 10.00 |
| Interface 1 | RS485 |
| Charging current (A) | 130.00 |
| Battery Connection | AC/DC |
| Display | w/o display |
| Max. efficiency (%) | 98.00 |
| Degree of protection IP | IP65 |
| Interface 2 | Ethernet |
| Battery voltage | Low Voltage |
| Max. generator power DC (kWp) | 13.50 |
| European efficiency (%) | 97.60 |
| Manufacturer item name | SE10K-RWS |
|---|---|
| Intrastat country of origin | Israel |
| Intrastat product number (HS-code) | 85044086 |
| Manufacturer | SolarEdge |
| Pal. dim. LxBxH (mm) | 1200x800x2060 |
|---|---|
| Amount per Pallet | 16 |
| Weight incl. packaging (Kg) | 39.200 |
| Height incl. packaging (cm) | 96.00 |
| Pack. material | cardboard box |
| Width incl. packaging (cm) | 30.00 |
| Length incl. packaging (cm) | 40.00 |
| Weight without packaging (kg) | 37.000 |
|---|---|
| Width without packaging (mm) | 316.00 |
| Length without packaging (mm) | 853.00 |
| Height without packaging (mm) | 193.00 |

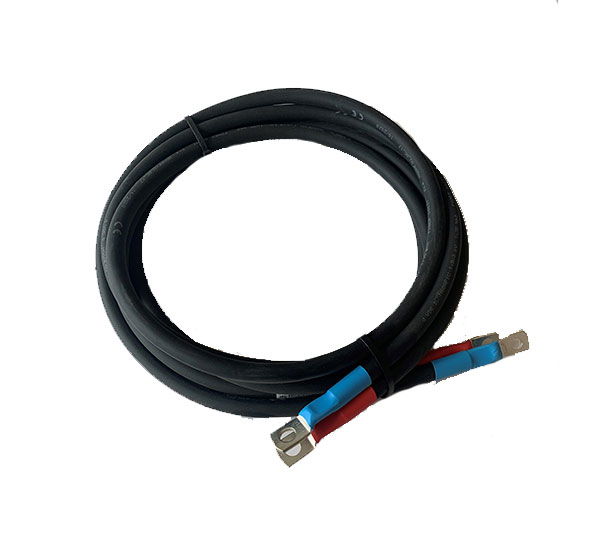

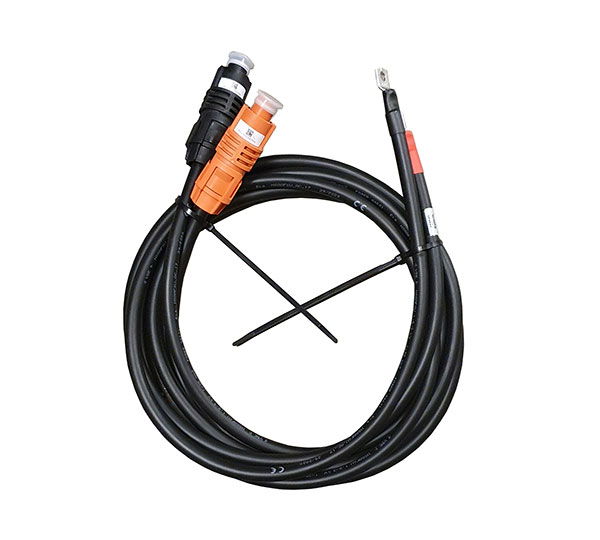

Accessoires
0133043
0152088
