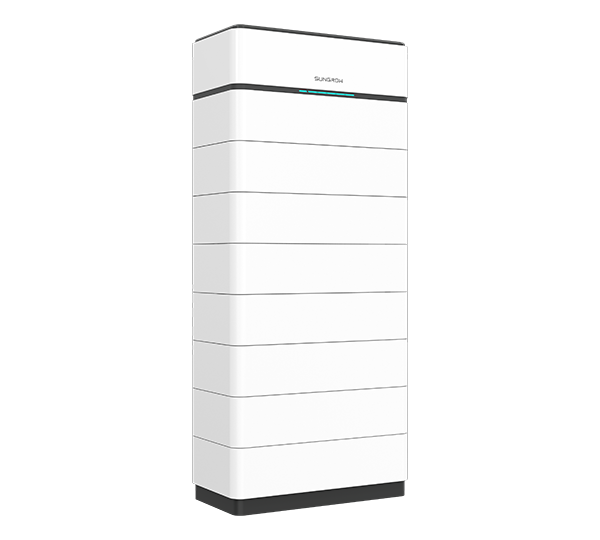

SBH400 V11
Product information "SBH400 V11"
CAUTION:
Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II
Only compatible with SH15/20/25T.
Due to the high charging currents when combining the SBH storage system with the SHxxT hybrid inverter, a flexible PV cable with 10 mm² and a voltage resistance of up to 1000 V is required.
With the new SBH high-voltage storage system from Sungrow, up to 40.0 kWh and 50 amps of charging current are possible per tower. As with the SBR series, the reliable lithium iron phosphate technology is certified according to VDE 2510-50 and can be expanded indefinitely. Quick and easy installation thanks to the wireless stacking concept. The ideal combination for the large performance classes of the Sungrow hybrid inverters. Ready, set, Sungrow.
Product advantages:
• Up to 40.0 kWh per tower
• Can be expanded indefinitely
• Battery safety certified according to 2510-50
• Sturdy carrying handles on each storage module
Product features:
• Battery capacity (usable): 40.0 kWh
• Expansion time window: unlimited
• Cell chemistry: LFP
• Nominal voltage: 536.2 V
• Protection class: IP55
• Dimensions: 1540 x 675 x 350 mm (HxWxD)
• Weight: BCU + base 16.0 kg, 8 x storage units 48.0 kg each
Scope of delivery:
• 1 x Sungrow SBR Battery Accessory Set System (item 0156962)
• 8 x Sungrow SBH V11 storage module (item 0156961)
Wichtige technische Daten
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods Weight (net) (kg) | 376.000 |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
Downloads
-
SBH Battery Module Premium 5,0 kWh V110156961
-
SBH Battery Accessories V110156962
-
SBH Battery Module Premium 5,0 kWh V110156961
-
SBH Battery Accessories V110156962
Technical details
| Usable capacity (kWh) | 40.00 |
|---|---|
| Max. output current discharging (A) | 50.00 |
| Capacity extendable later | yes without restriction |
| Cell chemistry | LFP |
| Battery voltage | High Voltage |
| Battery cell chemistry | LFP |
| Protection degree | IP55 |
| Nominal voltage DC (V) | 563.20 |
| Max. output current charging (A) | 50.00 |
| Intrastat country of origin | China |
|---|---|
| Dangerous goods transportation category | 2 |
| Dangerous goods Weight (net) (kg) | 376.000 |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Intrastat product number (HS-code) | 85076000 |
| Manufacturer | Sungrow |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| Manufacturer item name | SBH400 V11 |
| UN No. | 3480 |
| Weight incl. packaging (Kg) | 427.500 |
|---|
| Weight without packaging (kg) | 376.000 |
|---|---|
| Width without packaging (mm) | 675.00 |
| Height without packaging (mm) | 350.00 |
| Length without packaging (mm) | 1540.00 |
