S1000S for roof systems
Product information "S1000S for roof systems"
Following the motto "Small but mighty," Sungrow offers microinverters in four power classes for rooftop applications. Equipped with 0.45 to 1.6 kW and up to four MPP trackers and Wi-Fi, they offer maximum flexibility for all applications. Plug-and-play connectors on the AC and DC sides ensure quick and safe installation.
Product advantages:
• Flexible for a wide range of applications
Product features:
• AC power: 1.0 kW
• Feed-in phases: 1
• AC mains voltage: 230 V
• Number of MPP trackers: 2
• Max. DC input voltage: 16 – 60 V
• Max. DC input current: 16 A per MPPT
• DC connector type: Stäubli MC4
• AC surge protection: Type 2
• Interfaces: Wi-Fi
• Housing protection class: IP67
• Cooling: passive
• Dimensions: 226 x 265 x 42 mm (H x W x D)
• Weight: 3.5 kg
Technical details
| Topology | transformerless |
|---|---|
| DC connector type | MC4 |
| Min. voltage range input (V) | 16 |
| Max. AC power (kVA) | 1000.00 |
| Degree of protection IP | IP67 |
| Min. temperature ambient (°C) | -40 |
| Max. input current per MPPT (A). | 16 |
| Number of independent MPPT (pcs) | 2 |
| AC nominal power (kW) | 10.00 |
| Display | with display |
| Max. short circuit current (A) total | 40.00 |
| Start input voltage (V) | 22 |
| Backup system full | no |
| Arc Fault Circuit Interrupter | no |
| Max. output current (A) | 4.50 |
| MPP max. voltage range input (V) | 60.00 |
| Protection degree | IP67 |
| Max. input current DC (A) total | 32.00 |
| Max. input voltage DC (V) | 60.00 |
| MPP min. voltage range input (V) | 16.00 |
| Max. efficiency (%) | 96.20 |
| Offgrid usable | no |
| European efficiency (%) | 95.40 |
| Max. generator power DC (kWp) | 10.00 |
| Intrastat country of origin | China |
|---|---|
| Intrastat product number (HS-code) | 85044086 |
| Manufacturer | Sungrow |
| Manufacturer item name | S1000S |
| Length incl. packaging (cm) | 47.50 |
|---|---|
| Amount per big Box | 8 |
| Pal. dim. LxBxH (mm) | 1200x1000x1149 |
| Pal. weight (kg) | 450.60 |
| Height incl. packaging (cm) | 6.00 |
| Pack. material | cardboard box |
| Width incl. packaging (cm) | 27.40 |
| Amount per Pallet | 96 |
| Weight incl. packaging (Kg) | 4.300 |
| Weight without packaging (kg) | 3.500 |
|---|---|
| Width without packaging (mm) | 226.00 |
| Length without packaging (mm) | 265.00 |
| Height without packaging (mm) | 42.00 |

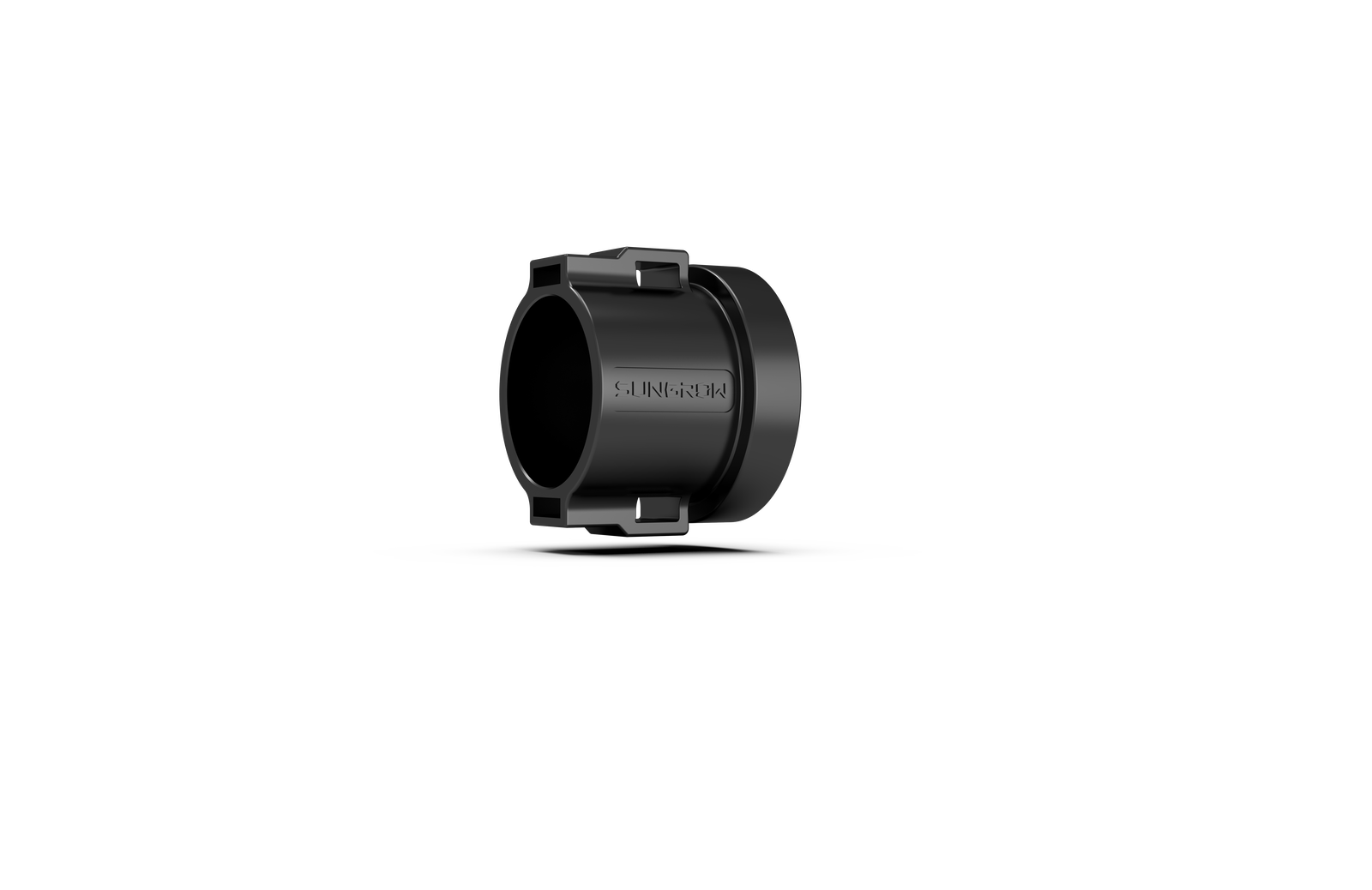

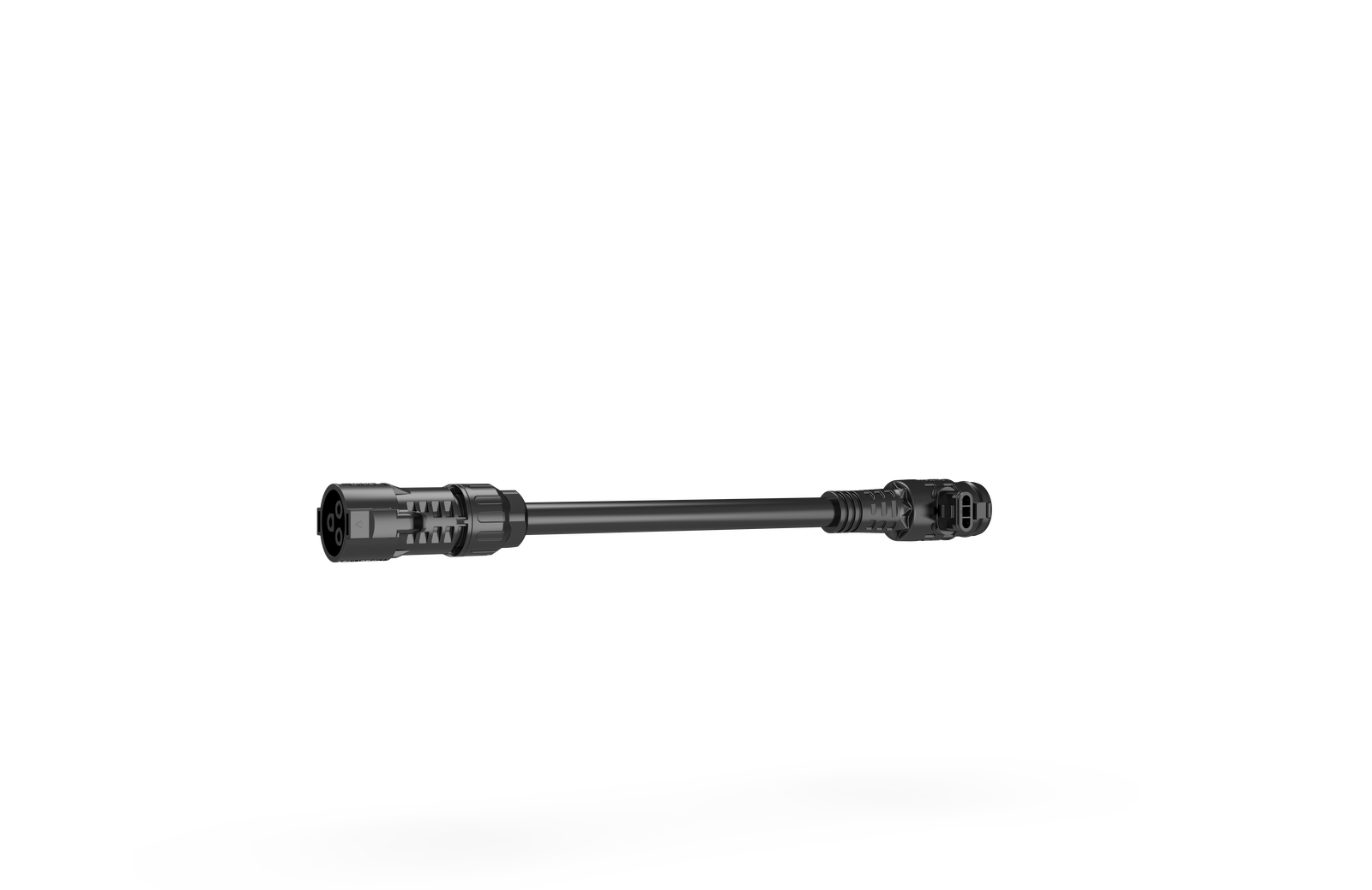

Accessoires
