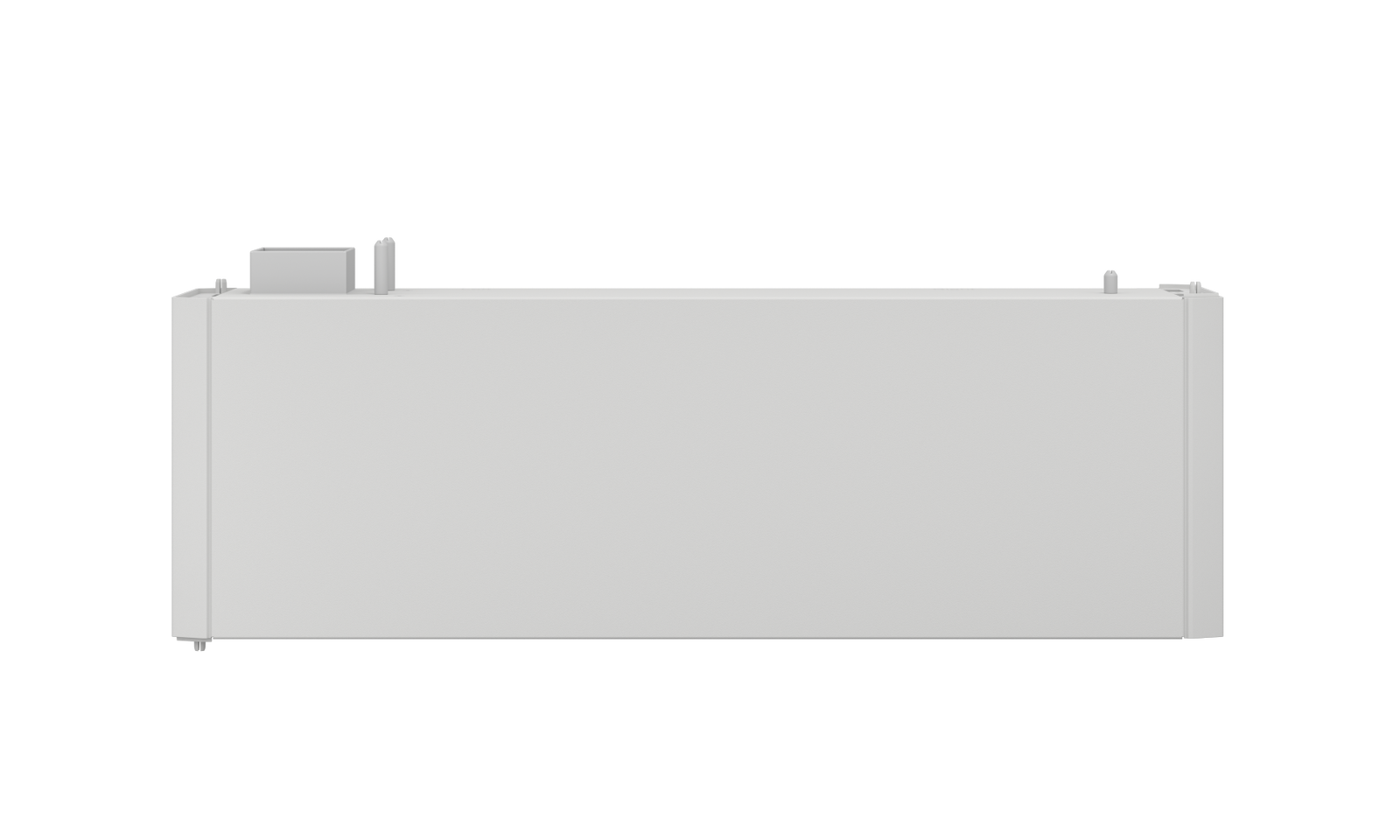

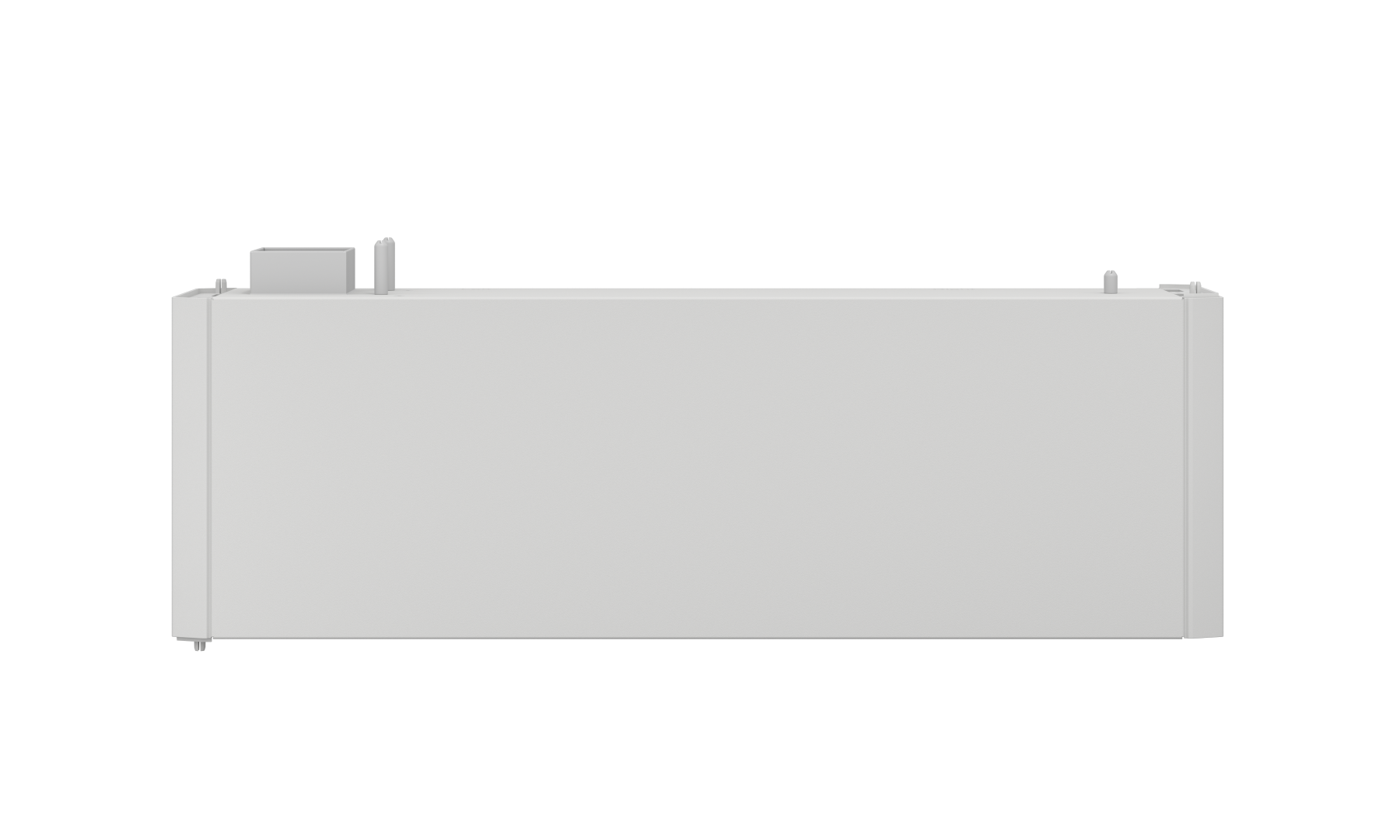

Reserva storage module
Product information "Reserva storage module"
CAUTION:
Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II

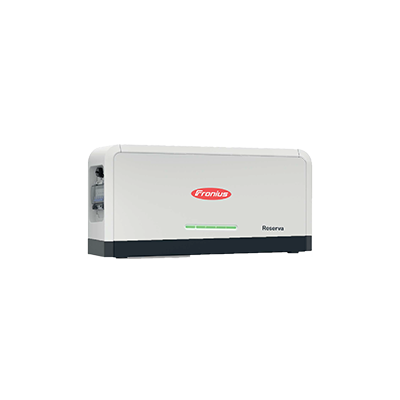

Ultra-flat and powerful - that's the Fronius Reserva high-voltage storage system. Thanks to its high cell voltage, it can be used with high charging power on GEN24 hybrid devices with as few as 2 storage modules. In the proven stacked design, just under 15.8 kWh of usable capacity can be realised with 5 elements. For larger storage requirements, up to 4 systems can be connected in parallel. And with an installation depth of just 176 mm, it even fits behind doors and in tight technical rooms.
Product benefits:
- Flexible installation due to small installation depth
- Certified battery safety in accordance with VDE 2510-50
Product features:
- Battery capacity (usable): 3.15 kWh
- Time window extension: in clarification
- DC nominal voltage: 102.4 V
- Cell chemistry: LFP
- Protection class: IP65
- Dimensions: 250 x 780 x 176 mm (HxWxD)
- Weight: 33.5 kg
Wichtige technische Daten
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods Weight (net) (kg) | 33.500 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
Technical details
| Protection degree | IP65 |
|---|---|
| Cell chemistry | LFP |
| Min. temperature ambient (°C) | -20 |
| Battery voltage | High Voltage |
| Battery cell chemistry | LFP |
| Nominal voltage DC (V) | 102.40 |
| Usable capacity (kWh) | 3.15 |
| Intrastat country of origin | China |
|---|---|
| Dangerous goods transportation category | 2 |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Intrastat product number (HS-code) | 85076000 |
| Dangerous goods Weight (net) (kg) | 33.500 |
| Dangerous goods class | 9 |
| Manufacturer item name | Reserva module |
| Dangerous goods packaging type | 4G |
| Manufacturer | Fronius |
| UN No. | 3480 |
| Weight incl. packaging (Kg) | 36.500 |
|---|---|
| Height incl. packaging (cm) | 264.00 |
| Length incl. packaging (cm) | 790.00 |
| Amount per Pallet | 12 |
| Pack. material | cardboard box |
| Width incl. packaging (cm) | 372.00 |
| Pal. dim. LxBxH (mm) | 1200x800x2136 |
| Width without packaging (mm) | 772.00 |
|---|---|
| Length without packaging (mm) | 250.00 |
| Weight without packaging (kg) | 33.500 |
| Height without packaging (mm) | 176.00 |
