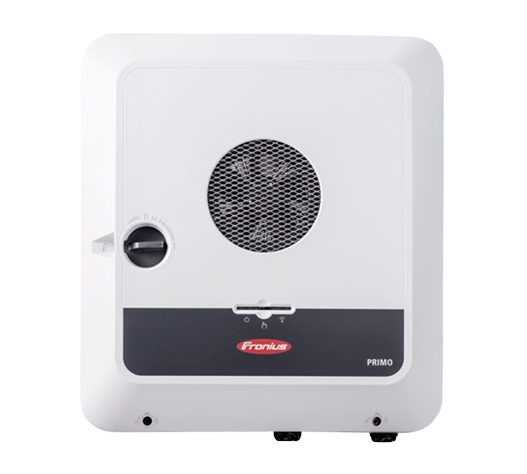

Primo GEN24 3.6 plus
Hybrid inverter, 2 MPPT, 1-phase
Art-No.
0132175
Manufacturer No.
4,210,141,002
Product details
Product information "Primo GEN24 3.6 plus"
***An internet connection is required for this product***
Even an innovative system like the Fronius GEN24 constantly needs new impulses for improvement. The Primo and Symo series are now available with the storage connection still deactivated at the factory. You decide for yourself whether and when you want to use this function by means of an activation code. Of course, you will still receive the familiar version with the battery port already activated - distinguished by the “plus” after the GEN24 in the device name. The smart PV-Point emergency power connection with a maximum output power of 3 kW is active in every version. All other functions and interfaces remain the same.
Product advantages:
• Storage connection already activated
• Emergency power via Fronius PV-Point
Product features:
• AC power: 3.6 kW
• Number of MPPT: 2
• DC input current: MPPT 1 - 22,0 A, MPPT 2 - 12,0 A
• Battery connection: active
• AC connection: 1-phase
• Communication: WLAN, 2 x Ethernet
• Interfaces: 6 x DI (FRE), 6 x DO
• Protection class: IP66
• Cooling: active
• Dimensions: 530 x 474 x 165 mm (H x W x D)
• Weight: 15.4 kg
Technical details
| Topology | transformerless |
|---|---|
| Start input voltage (V) | 80 |
| Max. input current per MPPT (A). | 22\/12 |
| Min. temperature ambient (°C) | -40 |
| Backup system full | yes with supply |
| Backup system light | no |
| Max. input voltage DC (V) | 600.00 |
| Protection degree | IP66 |
| Number of independent MPPT (pcs) | 2 |
| Arc Fault Circuit Interrupter | no |
| Max. input current DC (A) total | 34.00 |
| Surge protection AC | type 3 |
| Decibel | 42 |
| Max. output current (A) | 16.70 |
| MPP max. voltage range input (V) | 600.00 |
| Degree of protection IP | IP66 |
| Interface 1 | RS485 |
| Total number of string inputs | 4 |
| Battery Connection | AC/DC |
| Step-Up converter | yes |
| Display | w/o display |
| Max. generator power DC (kWp) | 5.50 |
| Max. short circuit current per MPPT (A) | 36\/19 |
| Max. short circuit current (A) total | 55.00 |
| Max. efficiency (%) | 97.60 |
| DC connector type | spring-type terminal |
| Integrated DC switch | yes |
| Surge protection DC | type 2 |
| AC nominal power (kW) | 3.68 |
| Contact ripple control receiver | yes |
| Max. AC power (kVA) | 3.68 |
| Interface 2 | Ethernet |
| Contact for self-consumption optimization (e.g. for heat pump) | 4 |
| Charging voltage (V) | 150-455 |
| European efficiency (%) | 97.00 |
| MPP min. voltage range input (V) | 65.00 |
| Min. voltage range input (V) | 65 |
| Charging current (A) | 22.00 |
| Intrastat product number (HS-code) | 85044085 |
|---|---|
| Manufacturer item name | Primo GEN24 Plus 3.6 |
| Manufacturer | Fronius |
| Intrastat country of origin | Austria |
| Pal. weight (kg) | 410.00 |
|---|---|
| Amount per Pallet | 16 |
| Pack. material | cardboard box |
| Length incl. packaging (cm) | 53.00 |
| Width incl. packaging (cm) | 48.00 |
| Weight incl. packaging (Kg) | 19.000 |
| Height incl. packaging (cm) | 17.00 |
| Pal. dim. LxBxH (mm) | 1200x800x1750 |
| Height without packaging (mm) | 163.00 |
|---|---|
| Length without packaging (mm) | 528.00 |
| Weight without packaging (kg) | 16.600 |
| Width without packaging (mm) | 474.00 |
