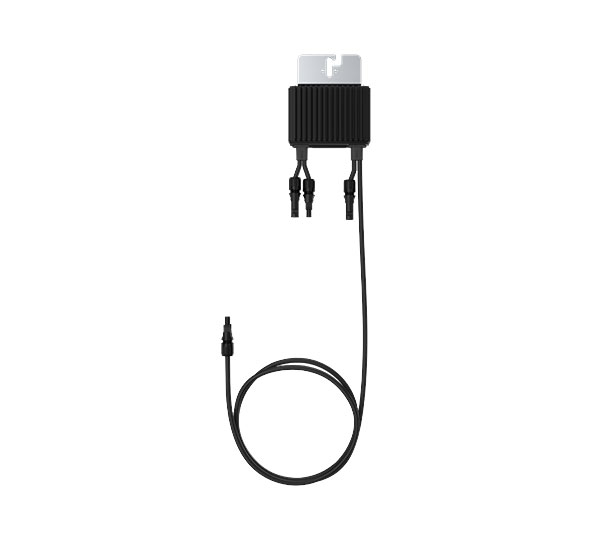

POWER OPTIMIZER S650A
Product information "POWER OPTIMIZER S650A"
Please use SolarEdge Designer to check the system design. Please note that the system and string connection specifications may vary depending on the inverter and module type. The installation technician is always responsible for checking and documenting the system design.
The S650A optimizer cannot be mixed with optimizers from other series. They are only compatible with the 3-phase Home Hub inverters (RWB48 from 5-10 kW) and the Home Wave inverters (RW0.. up to 10 kW).
Thanks to the unique system concept with the high-performance power optimizers, SolarEdge enables the ideal energy use of your PV system. The high flexibility in arrangement and interconnection is reflected in an outstanding efficiency of 99.5%. In addition, the SolarEdge optimizers minimize any losses due to module mismatching. The integrated functions such as Safe-DC and monitoring of the DC connectors ensure safety throughout the entire system. This SolarEdge optimiser is specially designed to work with compatible SolarEdge residential inverters and is compatible with a wide range of modules, including high-powered and bifacial PV modules.
Product advantages:
• Outstanding efficiency (99.5 %)
• Monitored DC plug connections
• Safe-DC function
• Compatible with bifacial PV modules
Product features:
• Rated input power: 650 W
• Short circuit current Isc: 15 A
• MPP max. voltage range input: 80 V
• MPP min. voltage range input: 12.5 V
• Max. input voltage DC: 80 V
• Interface: Powerline
• DC connector type: MC4
• Length of cable output plus: 230 cm
• Length of cable output minus: 10 cm
• Length of cable input: 10 cm
• Weight: 0.790 kg
• Warranty: 25 years
Technical details
| DC connector type | MC4 |
|---|---|
| Short circuit current Isc (A) | 15.00 |
| MPP min. voltage range input (V) | 12.50 |
| Max. input voltage DC (V) | 80.00 |
| Rated input power (W) | 650 |
| Length of cable output minus (cm) | 10.00 |
| MPP max. voltage range input (V) | 80.00 |
| Length of cable output plus (cm) | 230.00 |
| Protection degree | IP68 |
| Intrastat country of origin | Israel |
|---|---|
| Manufacturer item name | S650A-1DM4MBM |
| Manufacturer | SolarEdge |
| Intrastat product number (HS-code) | 90328900 |
| Height incl. packaging (cm) | 21.00 |
|---|---|
| Width incl. packaging (cm) | 39.00 |
| Pal. dim. LxBxH (mm) | 1200x800x2125 |
| Weight incl. packaging (Kg) | 0.912 |
| Pack. material | cardboard box |
| Length incl. packaging (cm) | 40.00 |
| Amount per Pallet | 420 |
| Amount per big Box | 10 |
| Length without packaging (mm) | 165.00 |
|---|---|
| Weight without packaging (kg) | 0.790 |
| Width without packaging (mm) | 129.00 |
| Height without packaging (mm) | 45.00 |
