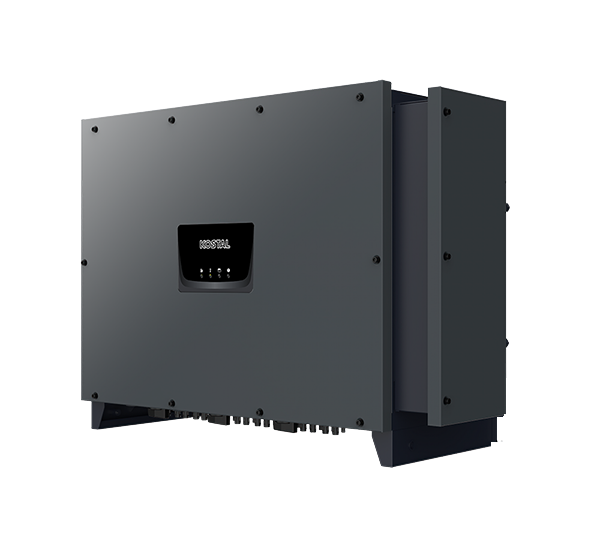

PIKO CI 100
PV inverter, 100 kW, 8 MPPT, 3-phase
Art-No.
0155125
Manufacturer No.
12182411
Product details
Product information "PIKO CI 100"
The Kostal Piko CI series enables cost-optimised project implementation thanks to its extensive equipment. Integrated string fuses and disconnectors on the DC side as well as efficient 4-wire connection and external control for the central NA protection on the AC side. The integrated data logger ensures reliable recording of all system information and simple connection for direct marketing. Type 2 overvoltage protection is installed for AC + DC.
Product advantages:
- Integrated data logger
- Simple connection for direct marketing
- Cost-optimised 4-wire AC connection
- Smart AC Switch enables direct control for centralised NA protection
Product features:
- AC power: 100 kW
- AC connection: 400V, 3-phase
- Number of MPPT: 8
- Integrated string fuses (10x38 mm): 20A per input
- AFCI arc detection: yes
- DC connector: Amphenol H4
- Overvoltage protection: AC + DC type 2
- Communication: 2 x Ethernet, WLAN, RS485, 4 x DI (FRE)
- Protection class: IP 66
- Cooling: active
- Dimensions: 678 x 936 x 365 mm (H x W x D)
- Weight: 93.0 kg
Technical details
| Topology | transformerless |
|---|---|
| Start input voltage (V) | 250 |
| Min. voltage range input (V) | 200 |
| Min. temperature ambient (°C) | -25 |
| Protection degree | IP66 |
| Interface 2 | RS485 |
| Max. AC power (kVA) | 111.00 |
| MPP min. voltage range input (V) | 540.00 |
| Number of independent MPPT (pcs) | 8 |
| Max. output current (A) | 168.80 |
| Max. generator power DC (kWp) | 150.00 |
| Max. input current DC (A) total | 280.00 |
| Max. short circuit current (A) total | 375.00 |
| Surge protection AC | type 2 |
| Degree of protection IP | IP66 |
| Interface 1 | Ethernet |
| Rapid shutdown | no |
| Display | w/o display |
| String fuses | yes included |
| Max. input current per MPPT (A). | 40\/40\/40\/32\/32\/32\/32\/32 |
| Max. efficiency (%) | 98.40 |
| AC nominal power (kW) | 100.00 |
| Integrated DC switch | yes |
| Total number of string inputs | 16 |
| MPP max. voltage range input (V) | 800.00 |
| Offgrid usable | no |
| Max. input voltage DC (V) | 1100.00 |
| Surge protection DC | type 2 |
| Max. short circuit current per MPPT (A) | 50\/50\/50\/45\/45\/45\/45\/45 |
| Control main relay external grid guard | yes |
| Contact ripple control receiver | yes |
| Grid protection | yes |
| DC connector type | H4Amphenol |
| Decibel | 65 |
| Integrated AC switch | yes |
| European efficiency (%) | 98.20 |
| Shadow management | yes |
| Intrastat country of origin | China |
|---|---|
| Intrastat product number (HS-code) | 85044086 |
| Manufacturer item name | PIKO CI 100 |
| Manufacturer | Kostal |
| Amount per Pallet | 2 |
|---|---|
| Pal. dim. LxBxH (mm) | 1098x810x1200 |
| Width incl. packaging (cm) | 80.50 |
| Pal. weight (kg) | 255.00 |
| Length incl. packaging (cm) | 111.00 |
| Weight incl. packaging (Kg) | 110.000 |
| Height incl. packaging (cm) | 46.60 |
| Weight without packaging (kg) | 93.000 |
|---|---|
| Length without packaging (mm) | 678.00 |
| Width without packaging (mm) | 936.00 |
| Height without packaging (mm) | 365.00 |
