M70A FLEX
PV IV, 3-ph, 6 MPPT, AFCI, w/o display, H4Amph.
Art-No.
0130230
Manufacturer No.
RPI703M260000
Product details
Product information "M70A FLEX"
High-efficiency three-phase solar inverters for large commercial rooftop and groundmounted PV systems.
Downloads
Technical details
| Topology | transformerless |
|---|---|
| AC nominal power (kW) | 70.00 |
| Interface 2 | Bluetooth |
| Max. input current DC (A) total | 156.00 |
| Min. voltage range input (V) | 200 |
| MPP min. voltage range input (V) | 460.00 |
| Min. temperature ambient (°C) | -25 |
| Protection degree | IP66 |
| Start input voltage (V) | 200 |
| String fuses | no |
| Surge protection AC | type 2 |
| Total number of string inputs | 12 |
| Degree of protection IP | IP66 |
| Interface 1 | RS485 |
| Max. input current per MPPT (A). | 26 |
| Step-Up converter | yes |
| Rapid shutdown | yes |
| Display | w/o display |
| Max. short circuit current (A) total | 300.00 |
| Max. short circuit current per MPPT (A) | 50 |
| Max. output current (A) | 112.00 |
| Integrated DC switch | yes |
| Max. efficiency (%) | 98.80 |
| Offgrid usable | no |
| European efficiency (%) | 98.40 |
| Max. input voltage DC (V) | 1100.00 |
| Surge protection DC | type 2 |
| Max. AC power (kVA) | 77.00 |
| DC connector type | H4Amphenol |
| Arc Fault Circuit Interrupter | yes |
| Number of independent MPPT (pcs) | 6 |
| Max. generator power DC (kWp) | 78.50 |
| MPP max. voltage range input (V) | 900.00 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer item name | M70A |
| Manufacturer | Delta |
| Intrastat product number (HS-code) | 85044086 |
| Length incl. packaging (cm) | 74.00 |
|---|---|
| Height incl. packaging (cm) | 28.00 |
| Amount per Pallet | 2 |
| Weight incl. packaging (Kg) | 70.000 |
| Pal. weight (kg) | 186.00 |
| Width incl. packaging (cm) | 62.00 |
| Pack. material | cardboard box |
| Pal. dim. LxBxH (mm) | 770x770x1100 |
| Height without packaging (mm) | 264.00 |
|---|---|
| Width without packaging (mm) | 699.00 |
| Weight without packaging (kg) | 69.000 |
| Length without packaging (mm) | 629.00 |

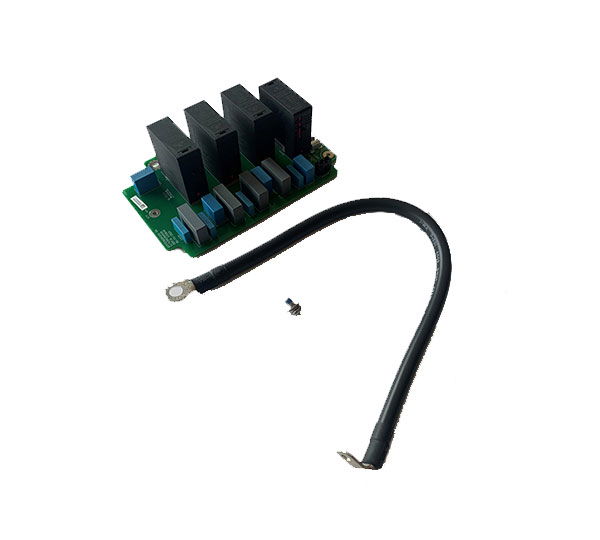

Zubehör
