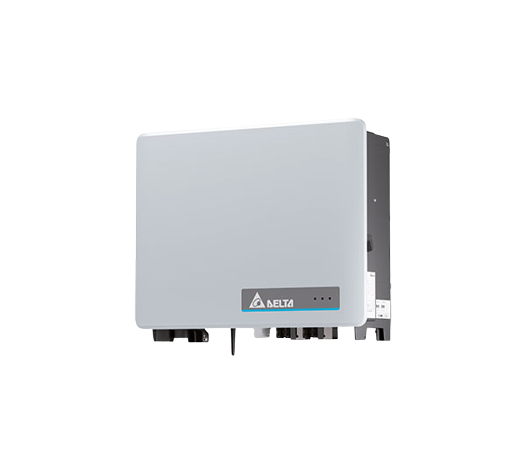

M20A FLEX
PV-WR, 3-ph, 2 MPPT, without display, H4Amphenol
Art-No.
0144557
Manufacturer No.
RPI203M220100
Product details
Product information "M20A FLEX"
High-efficiency three-phase solar inverters for residential and commercial PV systems.
Downloads
Technical details
| Topology | transformerless |
|---|---|
| Interface 2 | W-Lan |
| Min. voltage range input (V) | 200 |
| Min. temperature ambient (°C) | -25 |
| Protection degree | IP66 |
| Number of independent MPPT (pcs) | 2 |
| Start input voltage (V) | 200 |
| European efficiency (%) | 98.10 |
| Arc Fault Circuit Interrupter | no |
| Surge protection AC | type 2 |
| Degree of protection IP | IP66 |
| Interface 1 | RS485 |
| Max. output current (A) | 32.00 |
| Total number of string inputs | 4 |
| Max. efficiency (%) | 98.50 |
| Max. input current per MPPT (A). | 26 |
| Step-Up converter | yes |
| Rapid shutdown | yes |
| Display | w/o display |
| Max. short circuit current per MPPT (A) | 50 |
| AC nominal power (kW) | 20.00 |
| MPP min. voltage range input (V) | 200.00 |
| Integrated DC switch | yes |
| Offgrid usable | no |
| Max. AC power (kVA) | 22.00 |
| Max. input voltage DC (V) | 1100.00 |
| Surge protection DC | type 2 |
| DC connector type | H4Amphenol |
| MPP max. voltage range input (V) | 1000.00 |
| Max. input current DC (A) total | 48.00 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer | Delta |
| Intrastat product number (HS-code) | 85044086 |
| Amount per Pallet | 2 |
|---|---|
| Pack. material | cardboard box |
| Weight incl. packaging (Kg) | 45.000 |
| Length incl. packaging (cm) | 65.00 |
| Width incl. packaging (cm) | 52.00 |
| Height incl. packaging (cm) | 22.00 |
| Weight without packaging (kg) | 40.500 |
|---|---|
| Length without packaging (mm) | 520.00 |
| Height without packaging (mm) | 220.00 |
