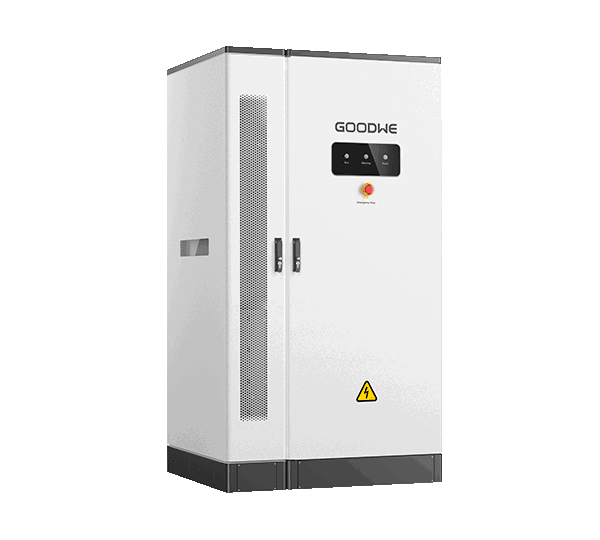

Lynx C 60K Commercial Storage Master
Product information "Lynx C 60K Commercial Storage Master"
CAUTION:
UN 3480 Lithium ion batteries / Transport hazard class 9 / (E)
Packing Group II
The Lynx C 60K memory is compatible with the Goodwe ET 15-30. This requires firmware version ≥ ARM07.
The new Lynx C 60K commercial storage units with a usable 60.0 kWh are the ideal addition to the large ET hybrids with 15 to 30 kW. Up to 3 units of 60 kWh each can be operated on one inverter. And even larger concepts can be implemented by connecting the system in parallel. The master unit of the Lynx C also has a warm place for the inverter in the air-conditioned outdoor housing.
Product advantages:
• Universal outdoor installation including WR installation in the rack
• Up to 3 units can be cascaded
Product features:
• Battery capacity (usable): 60.0 kWh per unit
• Time window for expansion: unlimited (according to current status)
• Cascadable: up to 3 units per WR (1 x master + 2 x extension kit)
• Cell chemistry: LFP
• Nominal voltage: 633.6 V
• Cooling: air conditioning
• Fire fighting: perfluor
• Protection class: IP55
• Dimensions: 2050 x 1180 x 1111 mm (HxWxD)
• Weight: 1029.5 kg
Wichtige technische Daten
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods Weight (net) (kg) | 550.000 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
Technical details
| Nominal voltage DC (V) | 633.60 |
|---|---|
| Max. output current charging (A) | 96.00 |
| Max. output current discharging (A) | 96.00 |
| Cell chemistry | LFP |
| Battery voltage | High Voltage |
| Battery cell chemistry | LFP |
| Usable capacity (kWh) | 60.00 |
| Protection degree | IP55 |
| Max. C-rate | 0.50 |
| Intrastat country of origin | China |
|---|---|
| Dangerous goods transportation category | 2 |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Manufacturer | GoodWe |
| Dangerous goods Weight (net) (kg) | 550.000 |
| Intrastat product number (HS-code) | 85076000 |
| Manufacturer item name | GW60KWH-D-10 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
| Width incl. packaging (cm) | 120.20 |
|---|---|
| Weight incl. packaging (Kg) | 1120.000 |
| Height incl. packaging (cm) | 224.00 |
| Amount per Pallet | 1 |
| Pack. material | wooden box |
| Pal. weight (kg) | 1100.00 |
| Length incl. packaging (cm) | 115.00 |
| Pal. dim. LxBxH (mm) | 1183x1140x2196 |
| Height without packaging (mm) | 2050.00 |
|---|---|
| Width without packaging (mm) | 1108.00 |
| Length without packaging (mm) | 1112.00 |
| Weight without packaging (kg) | 1029.500 |
