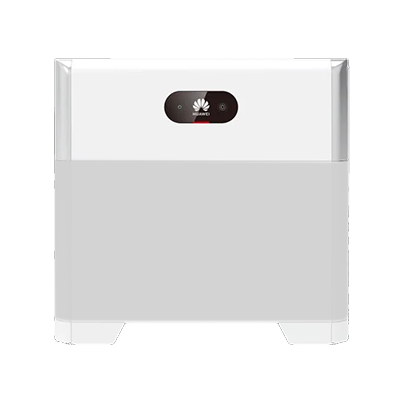

LUNA2000-5KW-C0 Power Module
Product details
Product information "LUNA2000-5KW-C0 Power Module"
The global manufacturer Huawei has been operating successfully in the photovoltaic and storage market for years. This is also reflected in its wide range of inverters, from small to extra-large. The LUNA high-voltage storage system is also a real gem, both technically and visually. Quick and easy installation and retrofitting are possible at any time thanks to intelligent system control. In parallel operation with 2 towers, up to 30 kWh of usable storage capacity is available.
Product benefits:
- System can be expanded indefinitely
- Certified battery safety in accordance with VDE 2510-50
Product features:
- Device status: Display with SOC and status LED
- Interfaces: RS485, CAN
- Cascadable: up to 2 towers in parallel (30.0 kWh)
- Protection class: IP55
- Cooling: passive
- Dimensions: 240 x 670 x 150 mm (HxWxD)
- Weight: 12.0 kg
- Compatible inverters: SUN2000-2/3/3.68/4/4.6/5/6KTL-L1, SUN2000-3/4/5/6/8/10KTL-M1
Technical details
| Protection degree | IP66 |
|---|
| Intrastat country of origin | China |
|---|---|
| Manufacturer item name | LUNA2000-5KW-C0 |
| Manufacturer | Huawei |
| Intrastat product number (HS-code) | 85044095 |
| Height incl. packaging (cm) | 27.30 |
|---|---|
| Pal. dim. LxBxH (mm) | 1180x720x1190 |
| Amount p. Cont. | 792 |
| Length incl. packaging (cm) | 71.20 |
| Width incl. packaging (cm) | 38.70 |
| Amount per Pallet | 12 |
| Weight incl. packaging (Kg) | 16.000 |
| Length without packaging (mm) | 240.00 |
|---|---|
| Weight without packaging (kg) | 12.000 |
| Width without packaging (mm) | 670.00 |
| Height without packaging (mm) | 150.00 |
