JAM54D41-450/LB
Product information "JAM54D41-450/LB"

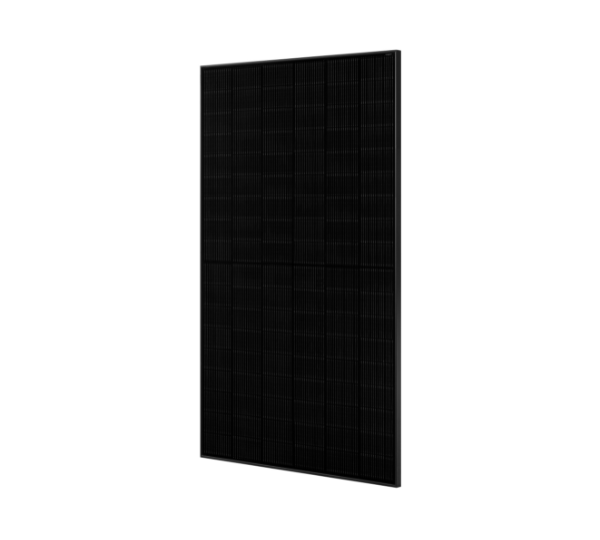

JA Solar is a leading global provider of photovoltaic power generation solutions. JA Solar's JAM54D41 LB solar module is equipped with bifacial technology, which enables power generation on both sides. This technology increases yield and improves energy efficiency by utilising both the front and back sides of the PV module. In addition, the module has improved low-light performance, ensuring very good performance even at low irradiation. Another highlight is the elegant full-black design, which enables seamless integration into various building architectures. JA Solar offers a 30-year performance warranty and a 25-year product warranty for this product.
Product advantages:
• Bifacial power generation
• Improved low-light performance
• Full-black design
Product features:
• Power rating Pmax: 450 Wp
• Cell type: monocrystalline
• Bifacial: yes
• Cell contact: 16 busbars
• Frame type: framed
• Frame colour: black
• Backsheet colour (cell side): black
• Backsheet colour (roof side): black
• Max. system voltage: 1500 V
• Connector type: MC4 EVO 2
• Cable length: 1.2 m
• Glass thickness: 1.6 mm (front) / 1.6 mm (back)
• Max. surface load capacity: 5400 Pa (snow) / 2400 Pa (wind)
• Fire protection class: UL/Type 38/Class C
• Dimensions: 1762 x 1134 x 30 mm (L x W x H)
• Weight: 22.0 kg
• Warranty: 30 years performance warranty and 25 years product warranty
Technical details
| Glass thickness front side (mm) | 1.60 |
|---|---|
| Power rating Pmax (Wp) | 450 |
| Frame colour | black |
| Length of cable plus (cm) | 120.00 |
| Nominal voltage Umpp (V) | 32.82 |
| Max. reverse current (A) | 30 |
| Bifacial | yes |
| Max. system voltage (V) | 1500 |
| Max. wind speed capacity testload(Pa) | 2400 |
| Number of cells across | 6 |
| Temperature coefficient Pmpp (%/C) | -0.2900 |
| Temperature coefficient Uoc (%/C) | -0.2600 |
| Module structure | glass-glass |
| Number of cells along | 18 |
| Open circuit voltage Uoc (V) | 39.30 |
| Max. surface load capacity testload(Pa) | 5400 |
| Power tolerance | +5 Wp |
| Frame type | framed |
| Cell width (mm) | 182.000 |
| Cell type | monocrystalline |
| Integrated module optimization | no |
| Nominal current Impp (A) | 13.71 |
| Module efficiency (%) | 22.50 |
| Protection degree | IP68 |
| Cell length (mm) | 91.000 |
| Connector type | MC4 Evo 2 |
| Length of cable minus (cm) | 120.00 |
| Short circuit current Isc (A) | 14.48 |
| Busbars (pcs) | 16 |
| Temperature coefficient Isc (%/C) | 0.0460 |
| Number of cells (pieces) | 108 |
| Backsheet colour cell side | black |
| Cell cut | half cut |
| Backsheet colour roof side | black |
| Intrastat country of origin | China |
|---|---|
| Certificate 1 | IEC/TÜV |
| Intrastat product number (HS-code) | 85414300 |
| Manufacturer | JA Solar |
| Manufacturer item name | JAM54D41-450\/LB |
| Certificate 2 | Protection Class 2 |
| Pal. weight (kg) | 817.00 |
|---|---|
| Weight incl. packaging (Kg) | 22.000 |
| Width incl. packaging (cm) | 113.40 |
| Amount Pal. p. Cont. | 26 |
| Pal. dim. LxBxH (mm) | 1800x1150x1200 |
| Pack. material | cardboard box |
| Height incl. packaging (cm) | 3.00 |
| Length incl. packaging (cm) | 176.20 |
| Amount p. Cont. | 936 |
| Amount per Pallet | 36 |
| Weight without packaging (kg) | 22.000 |
|---|---|
| Width without packaging (mm) | 1134.00 |
| Length without packaging (mm) | 1762.00 |
| Height without packaging (mm) | 30.00 |
