JAM54D40-460/LB
Product information "JAM54D40-460/LB"

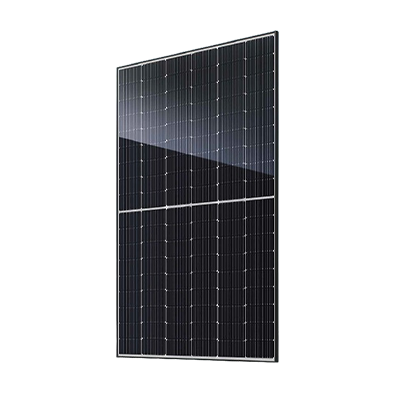

JA Solar is a leading global provider of photovoltaic power generation solutions. JA Solar's JAM54D40 LB solar module with an output of 460 Wp is equipped with bifacial technology, which enables power generation on both sides. This technology increases yield and improves energy efficiency by utilising both the front and back sides of the PV module. In addition, the module has improved low-light performance, ensuring very good performance even at low irradiation. JA Solar offers a 30-year performance warranty and a 25-year product warranty for this product.
Product advantages:
• Bifacial power generation
• Improved low-light performance
• 30 years performance and 25 years product warranty
Product features:
• Power rating Pmax: 460 Wp
• Cell type: monocrystalline
• Bifacial: yes
• Cell contact: 16 busbars
• Frame type: framed
• Frame colour: black
• Backsheet colour (cell side): white
• Max. system voltage: 1500 V
• Connector type: MC4 Evo 2A
• Cable length: 1.2 m
• Glass thickness: 1.6 mm (front) / 1.6 mm (back)
• Max. surface load capacity: 5400 Pa (snow) / 2400 Pa (wind)
• Fire protection class: UL/Type 38/Class C
• Dimensions: 1762 x 1134 x 30 mm (L x W x H)
• Weight: 22.0 kg
• Warranty: 30 years performance warranty and 25 years product warranty
Technical details
| Glass thickness front side (mm) | 1.60 |
|---|---|
| Connector type | MC4 Evo 2A |
| Frame colour | black |
| Length of cable plus (cm) | 120.00 |
| Max. reverse current (A) | 30 |
| Nominal current Impp (A) | 13.87 |
| Bifacial | yes |
| Max. system voltage (V) | 1500 |
| Backsheet colour cell side | white |
| Temperature coefficient Uoc (%/C) | -0.2500 |
| Max. wind speed capacity testload(Pa) | 2400 |
| Number of cells across | 6 |
| Short circuit current Isc (A) | 14.64 |
| Temperature coefficient Pmpp (%/C) | -0.2900 |
| Module structure | glass-glass |
| Number of cells along | 18 |
| Module efficiency (%) | 23.00 |
| Max. surface load capacity testload(Pa) | 5400 |
| Frame type | framed |
| Cell width (mm) | 182.000 |
| Open circuit voltage Uoc (V) | 39.70 |
| Cell type | monocrystalline |
| Integrated module optimization | no |
| Protection degree | IP68 |
| Cell length (mm) | 91.000 |
| Nominal voltage Umpp (V) | 33.17 |
| Length of cable minus (cm) | 120.00 |
| Power rating Pmax (Wp) | 460 |
| Power tolerance | + 3% |
| Busbars (pcs) | 16 |
| Number of cells (pieces) | 108 |
| Cell cut | half cut |
| Temperature coefficient Isc (%/C) | 0.0450 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer item name | JAM54D40-460\/LB |
| Certificate 1 | IEC/TÜV |
| Intrastat product number (HS-code) | 85414300 |
| Manufacturer | JA Solar |
| Certificate 2 | Protection Class 2 |
| Pal. weight (kg) | 817.00 |
|---|---|
| Weight incl. packaging (Kg) | 22.000 |
| Width incl. packaging (cm) | 113.40 |
| Amount Pal. p. Cont. | 26 |
| Pal. dim. LxBxH (mm) | 1800x1150x1250 |
| Pack. material | cardboard box |
| Height incl. packaging (cm) | 3.00 |
| Length incl. packaging (cm) | 176.20 |
| Amount p. Cont. | 936 |
| Amount per Pallet | 36 |
| Weight without packaging (kg) | 22.000 |
|---|---|
| Width without packaging (mm) | 1134.00 |
| Length without packaging (mm) | 1762.00 |
| Height without packaging (mm) | 30.00 |
