JAM54D40-455/LB
Product information "JAM54D40-455/LB"

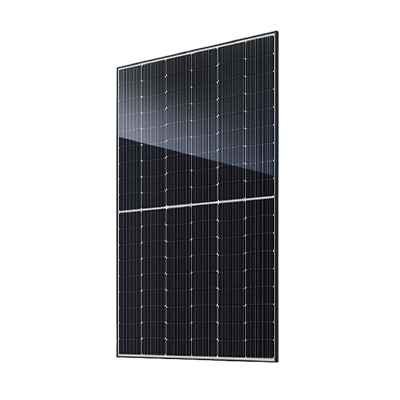

The n-type bifacial double glass high-performance mono module JAM54D40 LB from JA Solar defines new standards in the solar industry. This work of technical art, equipped with high-performance solar cells, is presented in a robust black aluminium frame. Easy to install and with an impressive performance warranty of 30 years and a product warranty of 25 years, JA Solar symbolises the future of sustainable and efficient energy supply.
Product advantages:
• High-performance solar cells
• Sturdy anodised black aluminium frame
• 30-year performance warranty and 25-year product warranty
Product features:
• Output: 455 Wp
• Cell type: monocrystalline
• Bifacial: yes
• Cell contact: 16 busbars
• Colour frame: black
• Foil colour: white
• System voltage: 1500 V
• Connector plug: MC4-EVO 2A
• Connection cable length: 1.2 m
• Glass thickness: 1.6 mm (front) / 1.6 mm (rear)
• Surface load capacity: 5400 Pa (snow) / 2400 Pa (wind)
• Dimensions: 1134 x 30 x 1762 mm (WxHxL)
• Weight: 22.0 kg
Technical details
| Glass thickness front side (mm) | 1.60 |
|---|---|
| Connector type | MC4 Evo 2A |
| Frame colour | black |
| Length of cable plus (cm) | 120.00 |
| Module efficiency (%) | 22.80 |
| Max. reverse current (A) | 30 |
| Bifacial | yes |
| Max. system voltage (V) | 1500 |
| Backsheet colour cell side | white |
| Temperature coefficient Uoc (%/C) | -0.2500 |
| Max. wind speed capacity testload(Pa) | 2400 |
| Number of cells across | 6 |
| Temperature coefficient Pmpp (%/C) | -0.2900 |
| Module structure | glass-glass |
| Cell width (mm) | 189.000 |
| Number of cells along | 18 |
| Max. surface load capacity testload(Pa) | 5400 |
| Frame type | framed |
| Nominal current Impp (A) | 13.79 |
| Cell type | monocrystalline |
| Integrated module optimization | no |
| Protection degree | IP68 |
| Nominal voltage Umpp (V) | 33.00 |
| Power rating Pmax (Wp) | 455 |
| Short circuit current Isc (A) | 14.56 |
| Length of cable minus (cm) | 120.00 |
| Power tolerance | + 3% |
| Busbars (pcs) | 16 |
| Open circuit voltage Uoc (V) | 39.50 |
| Number of cells (pieces) | 108 |
| Cell cut | half cut |
| Temperature coefficient Isc (%/C) | 0.0450 |
| Cell length (mm) | 93.000 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer item name | JAM54D40-455\/LB |
| Certificate 1 | IEC/TÜV |
| Intrastat product number (HS-code) | 85414300 |
| Manufacturer | JA Solar |
| Certificate 2 | Protection Class 2 |
| Pal. weight (kg) | 817.00 |
|---|---|
| Weight incl. packaging (Kg) | 22.000 |
| Width incl. packaging (cm) | 113.40 |
| Amount Pal. p. Cont. | 26 |
| Pal. dim. LxBxH (mm) | 1800x1150x1250 |
| Pack. material | cardboard box |
| Height incl. packaging (cm) | 3.00 |
| Length incl. packaging (cm) | 176.20 |
| Amount p. Cont. | 936 |
| Amount per Pallet | 36 |
| Weight without packaging (kg) | 22.000 |
|---|---|
| Width without packaging (mm) | 1134.00 |
| Length without packaging (mm) | 1762.00 |
| Height without packaging (mm) | 30.00 |
