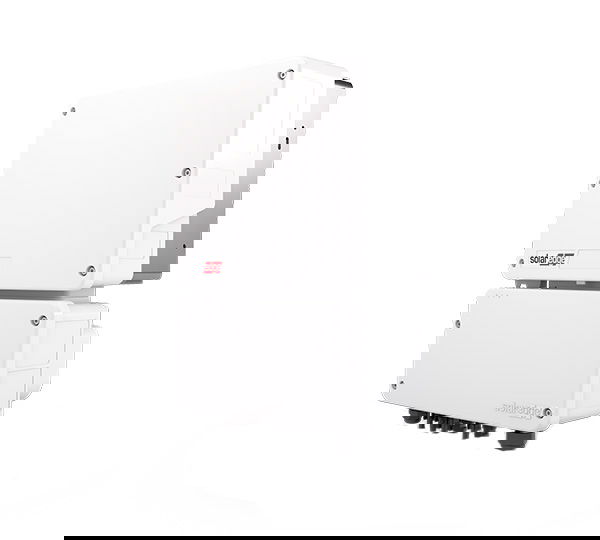

Home Battery HV 10 kWh + SE5000H Home Hub

The components of SolarEdge's "small" hybrid home storage system understand each other blindly and without cables. This is because communication between the inverter and the Home Battery HV takes place via Powerline, just as with the optimizers. All issues regarding compatibility, updates and visualization are thus taken care of in the best possible way. The Home Battery HV goes as a compact power package to the start, so for transport do not forget the carrying handles.

Product advantages:

• All components from a single source

• Secure compatibility through uniform manufacturer

• Optional backup function (with SE backup box)

• Wireless communication of inverter and storage

• Integrated arc protection

• Easy installation of the entire system via SetApp

Product features System:

• AC power: 5.0 kW (limited to 4.6 kVA in DE)

• AC connection: 1-phase

• Communication: Wifi (opt.), LAN, RS485

• Protection class: IP65

• Cooling: passive

• Dimensions: 450 x 370 x 174 mm (H x W x D)

• Weight: 12.0 kg

Product features Storage:

• Battery capacity (usable): 9.7 kWh

• Time window expansion: unlimited

• Cascadable: up to 3 units in parallel

• Cell chemistry: LFP

• Rated voltage: 350-450 V

• Protection class: IP55

• Dimensions: 790 x 1179 x 250 mm (H x W x D)

• Weight: 119.0 kg

• Cooling: passive

Conclusion:

If even inverters and storage no longer need cables for communication this set can only be described as "easy to install". In addition everything from one source.

Scope of delivery:

• 1 x SolarEdge 5000H Home Hub Inverter (item 0154059)

• 1 x SolarEdge Home Battery HV (item 0152051)

• 1 x SolarEdge Inline Energy Meter (item 0148127)
