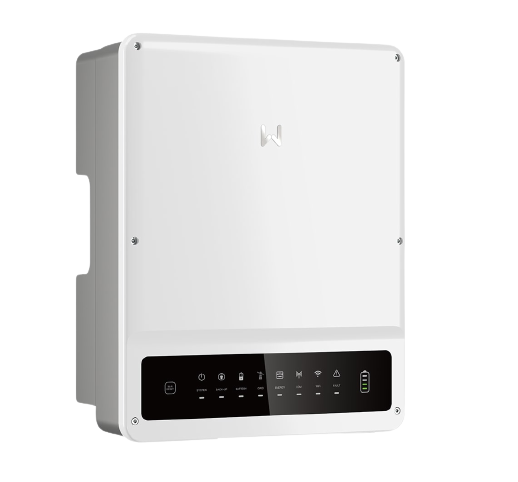

GW10KN-ET PLUS 16A (DC/WIFI/3P-METER/BACKUP)
three-phase hybrid inverter with DC switch
Art-No.
0152677
Manufacturer No.
ETU0010-09-01P
Product details
Product information "GW10KN-ET PLUS 16A (DC/WIFI/3P-METER/BACKUP)"
With its wide battery voltage range from 180V to 600V, this device allows flexible compatibility with several lithium battery systems on the market. The incoming PV generator output can be up to 30% above the nominal output, which leads to a better energy yield on very hot and very cold days. The built-in UPS (emergency power) function enables switching in the event of a power failure within 10 milliseconds to guarantee an uninterruptible power supply for connected consumers. The inverter also has an open battery management interface, which meets the requirements of some energy providers.
The 3-phase meter is enclosed with the inverter
Technical details
| Topology | transformerless |
|---|---|
| Charging current (A) | 25.00 |
| Max. AC power (kVA) | 11.00 |
| Max. short circuit current (A) total | 42.40 |
| Max. input current per MPPT (A). | 16 |
| Interface 2 | W-Lan |
| Step-Up converter | no |
| Protection degree | IP66 |
| Number of independent MPPT (pcs) | 2 |
| AC nominal power (kW) | 10.00 |
| MPP max. voltage range input (V) | 850.00 |
| Arc Fault Circuit Interrupter | no |
| Total number of string inputs | 2 |
| Surge protection AC | type 3 |
| Min. temperature ambient (°C) | -35 |
| Max. output current (A) | 16.50 |
| Max. input voltage DC (V) | 1000.00 |
| Max. input current DC (A) total | 32.00 |
| Degree of protection IP | IP66 |
| Interface 1 | RS485 |
| Battery Connection | DC |
| European efficiency (%) | 97.50 |
| Max. short circuit current per MPPT (A) | 21,2 |
| Display | w/o display |
| Max. generator power DC (kWp) | 15.00 |
| Charging voltage (V) | 500 |
| Start input voltage (V) | 180 |
| Max. efficiency (%) | 98.20 |
| MPP min. voltage range input (V) | 200.00 |
| Integrated DC switch | yes |
| Offgrid usable | yes |
| Surge protection DC | type 2 |
| Min. voltage range input (V) | 620 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer item name | GW10KN-ET |
| Manufacturer | GoodWe |
| Intrastat product number (HS-code) | 85044086 |
| Length incl. packaging (cm) | 68.50 |
|---|---|
| Height incl. packaging (cm) | 29.00 |
| Pal. dim. LxBxH (mm) | 1120x720x990 |
| Amount per Pallet | 6 |
| Weight incl. packaging (Kg) | 29.000 |
| Pal. weight (kg) | 192.00 |
| Pack. material | cardboard box |
| Amount p. Cont. | 384 |
| Width incl. packaging (cm) | 54.00 |
| Length without packaging (mm) | 415.00 |
|---|---|
| Weight without packaging (kg) | 24.000 |
| Width without packaging (mm) | 516.00 |
| Height without packaging (mm) | 180.00 |
