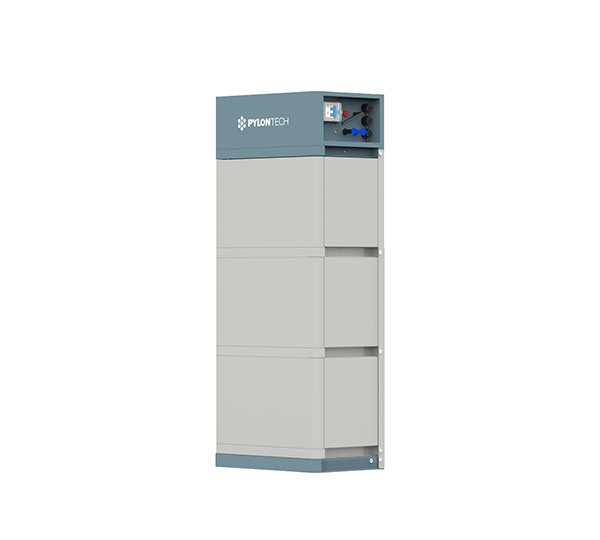

Force-H2 10.1 high-voltage storage
Product information "Force-H2 10.1 high-voltage storage"
CAUTION:
Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II
Compact, reliable and powerful - these are the Force H1 + H2 high-voltage storage systems from Pylontech. With their proven and efficient stacked design, these power packs always find a place. With their expandable battery modules with up to 16.9 kWh usable capacity, they are ideal for use in the home.
Product advantages:
• Efficient, compact stacking design
• Compatible with SMA, Kostal, Sungrow, Goodwe, Sofar (please check the manufacturer list for current compatibilities)
Product features Storage:
• Battery capacity (usable): 10.1 kWh
• Depth of discharge DoD: 95%
• Extension window: up to 2 years
• Cell chemistry: LFP
• Nominal voltage: 288.0 V
• Protection class: IP55
• Dimensions: 1118 x 450 x 296 mm (H x W x D)
• Weight: BMS + base: 11.5 kg, 3 x storage 35.5 kg each
Scope of delivery:
• 1 x Pylontech Battery Management System (item 0152523)
• 3 x Pylontech Force-H2 storage module (item 0132232)
Wichtige technische Daten
| Dangerous goods Weight (net) (kg) | 106.500 |
|---|---|
| Dangerous goods transportation category | 2 |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
Downloads
-
FORCE-H2 FC0500M-40S-V20152523
-
FORCE-H2 FH9637M, HV storage module0132232
-
FORCE-H2 FC0500M-40S-V20152523
-
FORCE-H2 FH9637M, HV storage module0132232
Technical details
| Nominal voltage DC (V) | 288.00 |
|---|---|
| Battery voltage | High Voltage |
| Battery cell chemistry | LFP |
| Usable capacity (kWh) | 10.10 |
| Intrastat country of origin | China |
|---|---|
| Dangerous goods Weight (net) (kg) | 106.500 |
| Dangerous goods transportation category | 2 |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Manufacturer item name | Force-H2 10.1 |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Intrastat product number (HS-code) | 85076000 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| Manufacturer | Pylontech |
| UN No. | 3480 |
| Weight incl. packaging (Kg) | 135.000 |
|---|
| Weight without packaging (kg) | 118.000 |
|---|
