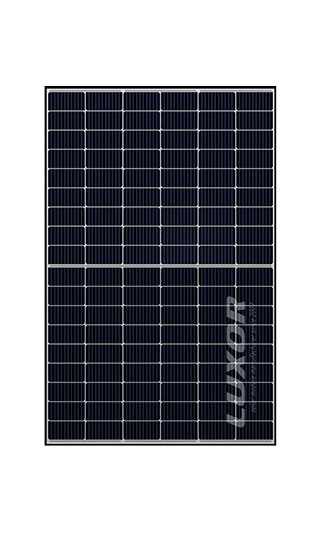

ECO LINE Topcon Glas-Glas BIF M108/455W
Product information "ECO LINE Topcon Glas-Glas BIF M108/455W"
Luxor produces its premium Eco-Line Topcon series solar modules to the highest standards in Asia and Europe. These solar modules offer a number of advantages, including double glass for higher mechanical strength and improved fire safety. With their universal applicability, they are suitable for every situation and environment. In addition, the module is equipped with a high-quality plastic junction box that guarantees durability and excellent performance. A special feature of this series is the bifacial technology, which enables power generation on both sides. With this technology, you can increase your yield and significantly improve your energy efficiency. Luxor stands for quality and durability, which is also reflected in their guarantee. The company offers an impressive 30-year guarantee on the Eco-Line N-Type series, which underlines the confidence in the quality of their products.
Product advantages:
• Manufacture of premium solar modules to the highest standards in Asia and Europe
• High-quality plastic junction box
• More yield through bifacial power generation
• 30-year manufacturer and performance guarantee
Product features:
• Output: 455 Wp
• Cell type: monocrystalline
• Bifacial: yes
• Cell contact: 16 busbars
• Frame color: black
• Film color: white
• System voltage: 1500 V
• Connector: MC4-EVO 2
• Length of connection cable: 1.1 m
• Glass thickness: 2.0 mm (front) / 2.0 mm (back)
• Surface load capacity: 6000 Pa (snow) / 4000 Pa (wind)
• Fire protection class: UL 61730 C (UL2703) / II (UL790)
• Dimensions: 1134 x 30 x 1762 mm (WxHxL)
• Weight: 24.5 kg
Technical details
| Frame colour | black |
|---|---|
| Power tolerance | +6,49 Wp |
| Nominal voltage Umpp (V) | 32.83 |
| Max. reverse current (A) | 30 |
| Nominal current Impp (A) | 13.87 |
| Bifacial | yes |
| Max. system voltage (V) | 1500 |
| Backsheet colour cell side | white |
| Temperature coefficient Uoc (%/C) | -0.2500 |
| Open circuit voltage Uoc (V) | 39.32 |
| Temperature coefficient Pmpp (%/C) | -0.2900 |
| Protection degree | IP67 |
| Number of cells along | 6 |
| Module structure | glass-glass |
| Frame type | framed |
| Length of cable plus (cm) | 110.00 |
| Cell type | monocrystalline |
| Max. wind speed capacity testload(Pa) | 4000 |
| Integrated module optimization | no |
| Power rating Pmax (Wp) | 455 |
| Cell length (mm) | 91.000 |
| Connector type | MC4 Evo 2 |
| Length of cable minus (cm) | 110.00 |
| Module efficiency (%) | 22.55 |
| Short circuit current Isc (A) | 14.66 |
| Cell width (mm) | 210.000 |
| Busbars (pcs) | 16 |
| Number of cells across | 16 |
| Number of cells (pieces) | 108 |
| Cell cut | half cut |
| Glass thickness front side (mm) | 2.00 |
| Max. surface load capacity testload(Pa) | 6000 |
| Temperature coefficient Isc (%/C) | 0.0450 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer | Luxor Solar |
| Manufacturer item name | LX-455M\/182R188-108+ GG |
| Intrastat product number (HS-code) | 85414300 |
| Amount p. Cont. | 910 |
|---|---|
| Width incl. packaging (cm) | 113.40 |
| Amount Pal. p. Cont. | 26 |
| Pal. dim. LxBxH (mm) | 1800x1150x1250 |
| Pack. material | cardboard box |
| Weight incl. packaging (Kg) | 24.500 |
| Amount per Pallet | 35 |
| Height incl. packaging (cm) | 3.00 |
| Length incl. packaging (cm) | 176.20 |
| Weight without packaging (kg) | 24.500 |
|---|---|
| Width without packaging (mm) | 1134.00 |
| Length without packaging (mm) | 1762.00 |
| Height without packaging (mm) | 30.00 |
