ECO LINE N-TYPE HJT G-G 445w frameless (SU 34)
Glas-Glas, bifacial, transparent, MC4-EVO 2
Art-No.
0158333
Product details
Product information "ECO LINE N-TYPE HJT G-G 445w frameless (SU 34)"
Luxor produces its premium solar modules to the highest standards in Asia and Europe. These solar modules offer several advantages, including double glass for greater mechanical and thermal stability. Their usage is recommended wherever durability and robustness are required. The anti-reflective glass effectively captures sunlight and minimises reflection, ensuring optimum light absorption and therefore higher energy production. Another special feature is the bifacial technology, which allows electricity to be generated on both sides. This technology increases the yield and significantly improves energy efficiency. With their high-class appearance, the solar modules can be easily integrated into buildings. Luxor stands for quality, which is also underlined by the warranty. The company offers an impressive 30-year warranty on this module.
Product advantages:
• Production in Asia and Europe
• Particularly durable and robust
• Double glass with anti-reflective technology
• Bifacial power generation
• High-class appearance
Product features:
• Power rating Pmax: 445 Wp
• Cell type: monocrystalline
• Bifacial: yes
• Cell contact: 16 busbars
• Frame type: frameless
• Frame colour: none
• Backsheet colour (cell side): transparent
• Max. system voltage: 1500 V
• Connector type: MC4 EVO 2
• Cable length: 1.1 m
• Glass thickness: 2.0 mm (front) / 2.0 mm (back)
• Max. surface load capacity: 2400 Pa (snow) / 1600 Pa (wind)
• Fire protection class: C (IEC 61730)
• Dimensions: 1756 x 1128 x 5 mm (L x W x H)
• Weight: 23.5 kg
• Warranty: 30 years performance warranty and 30 years product warranty
Technical details
| Power rating Pmax (Wp) | 445 |
|---|---|
| Power tolerance | +6,49 Wp |
| Max. reverse current (A) | 30 |
| Bifacial | yes |
| Max. surface load capacity testload(Pa) | 2400 |
| Max. system voltage (V) | 1500 |
| Number of cells across | 6 |
| Protection degree | IP67 |
| Temperature coefficient Uoc (%/C) | -0.2600 |
| Module structure | glass-glass |
| Max. wind speed capacity testload(Pa) | 1600 |
| Frame colour | none |
| Number of cells along | 18 |
| Module efficiency (%) | 22.26 |
| Length of cable plus (cm) | 110.00 |
| Backsheet colour cell side | transparent |
| Cell type | monocrystalline |
| Temperature coefficient Pmpp (%/C) | -0.2400 |
| Integrated module optimization | no |
| Nominal voltage Umpp (V) | 30.87 |
| Cell length (mm) | 91.000 |
| Connector type | MC4 Evo 2 |
| Temperature coefficient Isc (%/C) | 0.0400 |
| Cell composition | heterojunktion |
| Length of cable minus (cm) | 110.00 |
| Frame type | frameless |
| Open circuit voltage Uoc (V) | 37.88 |
| Cell width (mm) | 210.000 |
| Busbars (pcs) | 16 |
| Short circuit current Isc (A) | 15.35 |
| Cell cut | half cut |
| Nominal current Impp (A) | 14.43 |
| Glass thickness front side (mm) | 2.00 |
| Number of cells (pieces) | 96 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer | Luxor Solar |
| Certificate 1 | IEC/TÜV |
| Intrastat product number (HS-code) | 85414300 |
| Manufacturer item name | LX-445M\/182R-96+ GG |
| Certificate 2 | Fire Protection Class 1 |
| Amount per Pallet | 34 |
|---|---|
| Pack. material | cardboard box |
| Amount Pal. p. Cont. | 18 |
| Amount p. Cont. | 612 |
| Width incl. packaging (cm) | 112.80 |
| Height incl. packaging (cm) | 0.50 |
| Weight incl. packaging (Kg) | 23.500 |
| Length incl. packaging (cm) | 175.60 |
| Length without packaging (mm) | 1756.00 |
|---|---|
| Width without packaging (mm) | 1128.00 |
| Weight without packaging (kg) | 23.500 |
| Height without packaging (mm) | 5.00 |

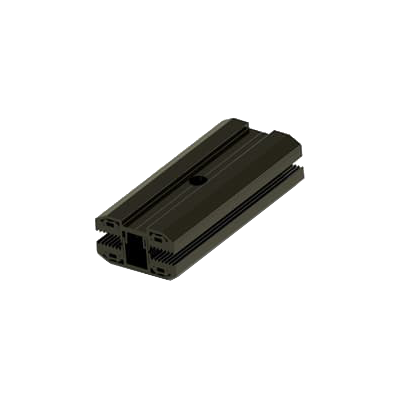

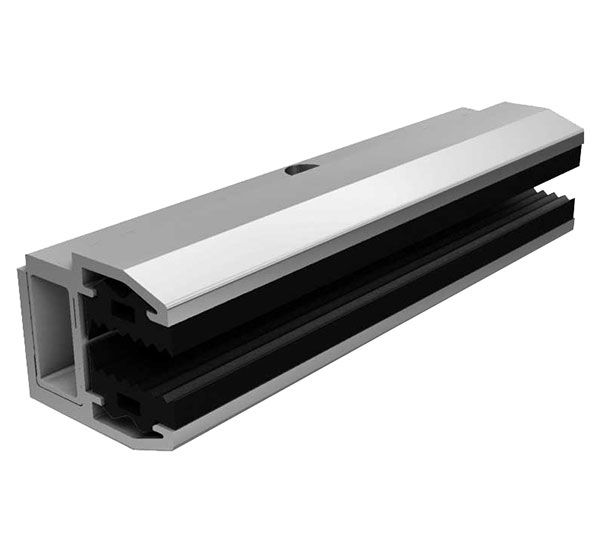

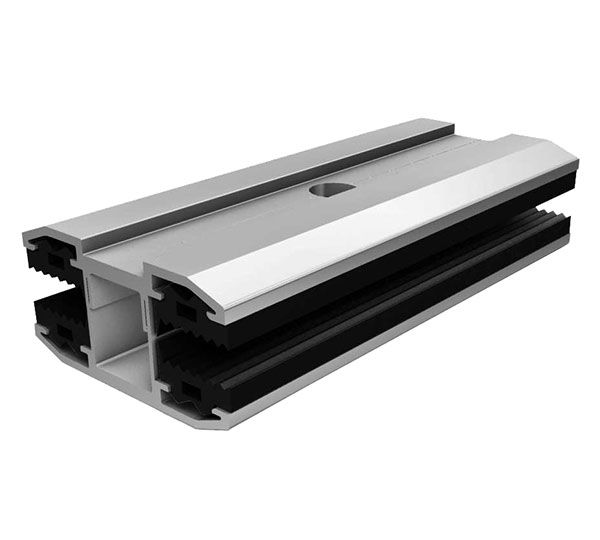

Accessoires
