CSS-OD Commercial Storage System
Product information "CSS-OD Commercial Storage System"
CAUTION:
Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II
Currently certified for DE, AT, IT, NL, ES, PL, CZ.
Certification for UK expected end of Q4 2025.
The manufacturer's specifications for installation, assembly and installation location must be observed.
Suitable lifting and transportation equipment must be provided by the customer and the accessibility of the transport routes must be checked.
The following accessories must be added for each system:
• 0131787 (Solar Edge Meter SE-MTR-3Y-400V-A-DIN-RAIL)
• 0146354 (SECT-SPL-100A-A CURRENT TRANSFORMER)
• 0146355 (SECT-SPL-250A-A CURRENT TRANSFORMER)
• 0147992 (SECT-SPL-1000A-A CURRENT TRANSFORMER)
Based on your project-specific key data and planned components, please consider the need for an external EMS to provide, for example, the required control interfaces. This may need to be added separately. We would be happy to assist you in selecting suitable providers.

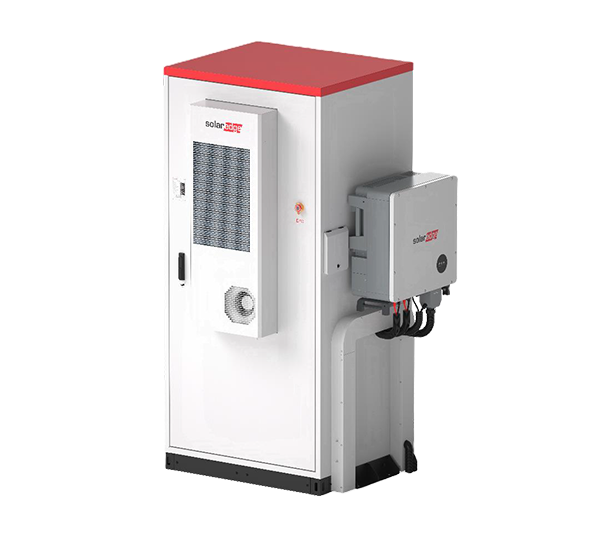

The PCS050 is the heart of the SolarEdge CSS-OD Commercial Storage System. Up to 2 storage cabinets, each with a capacity of 102.4 kWh, can be connected to the inverter. Parallel connection enables systems up to 1 MWh. A comprehensive monitoring system, LFP cell technology and a multiple sensor and fire protection concept ensure safety. The ideal system module for any size of commercial application. Seamless integration into the proven SolarEdge communication is a matter of course.
Product benefits:
• Best networking through uniform manufacturer
• Maximum flexibility thanks to comprehensive scalability
• Integrated fire protection system
Product features Inverter:
• AC output: 50 kW
• Grid connection: 400 V, 3-phase
• Battery connections: 2
• DC charging current: 2 x 55 A
• Application: Increasing self-consumption, peak shaving (announced)
• Visualization: SolarEdge monitoring platform
• Communication: RS485, CAN
• Cooling: active
• Protection class: IP65
• Dimensions: 650 x 715 x 324 mm (W x H x D)
• Weight: 68.0 kg
• System warranty: 10 years
Product features Storage:
• Capacity (usable): 97.28 kWh
• Max. charging rate: 0.5 C
• Cell chemistry: LFP
• Installation location: Indoor / Outdoor
• Protection class: IP54
• Cooling: Air conditioning
• Dimensions: 1100 x 2380 x 930 mm (W x H x D)
• Total weight: 1433.0 kg
Scope of delivery:
• 1 x SolarEdge CSS-OP Battery Cabinet (item 0156955)
• 1 x SolarEdge Battery Inverter PCS050 (item 0156956)
• 1 x SolarEdge ONE Controller Commercial (item 0156957)
Wichtige technische Daten
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods Weight (net) (kg) | 880.000 |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
Technical details
| Max. AC power (kVA) | 55.00 |
|---|---|
| Max. output current (A) | 80.00 |
| Surge protection AC | type 3 |
| Commercial system | yes |
| Display | w/o display |
| Min. temperature ambient (°C) | -20 |
| Battery voltage | High Voltage |
| Battery cell chemistry | LFP |
| Usable capacity (kWh) | 92.16 |
| Max. C-rate | 0.50 |
| AC nominal power (kW) | 50.00 |
| Intrastat country of origin | China |
|---|---|
| Dangerous goods transportation category | 2 |
| Dangerous goods Weight (net) (kg) | 880.000 |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Intrastat product number (HS-code) | 85076000 |
| Manufacturer | SolarEdge |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
| Manufacturer item name | CSS-OD |
| Weight incl. packaging (Kg) | 1665.680 |
|---|---|
| Amount per Pallet | 1 |
| Weight without packaging (kg) | 1501.550 |
|---|
