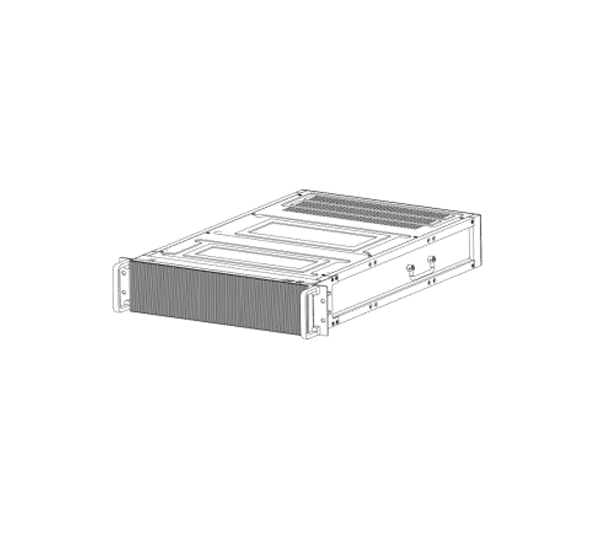

Battery-Max Lite storage module
HV storage module, 7.5 kWh usable
Art-No.
0158908
Manufacturer No.
14583501-00
Product details
Product information "Battery-Max Lite storage module"
CAUTION:
Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II
There is currently no approval for the SMA Sunny Island X inverters.
The extension is only possible within the first year in accordance with the manufacturer's specifications.
Check the number of free storage module slots in the existing system before ordering. A maximum of 12 batteries are possible per cabinet.
Make sure you have suitable aids for transport and installation in the rack.
The Max Lite high-voltage storage system is the large and flexible power package from BYD. Thanks to modular storage compartments, each with a usable capacity of 7.5 kWh, it can be equipped as required. This means that 30 to 90 kWh are possible per cabinet. In parallel connection with 32 units even 2.88 MWh. With a suitable inverter, it is designed for use in the C&I segment. Even backup and off-grid applications are possible.
Product features:
- Battery capacity (usable): 7.5 kWh
- Extension time window: unlimited
- Cell chemistry: LFP
- Nominal voltage: 76.8 V
- Cooling: active
- Weight: 75.0 kg
Wichtige technische Daten
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| Dangerous goods Weight (net) (kg) | 75.000 |
| UN No. | 3480 |
Technical details
| Nominal Capacity (Ah) | 100.00 |
|---|---|
| Max. output current discharging (A) | 100.00 |
| Usable capacity (kWh) | 7.50 |
| Max. output current charging (A) | 100.00 |
| Protection degree | IP20 |
| Capacity extendable later | yes without restriction |
| Cell chemistry | LFP |
| Min. temperature ambient (°C) | -20 |
| Battery voltage | High Voltage |
| Nominal voltage DC (V) | 76.80 |
| Battery cell chemistry | LFP |
| Intrastat country of origin | China |
|---|---|
| Manufacturer item name | MAXLITE Module 7.5 kWh |
| Dangerous goods transportation category | 2 |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Intrastat product number (HS-code) | 85076000 |
| Manufacturer | BYD |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| Dangerous goods Weight (net) (kg) | 75.000 |
| UN No. | 3480 |
| Amount per Pallet | 4 |
|---|---|
| Height incl. packaging (cm) | 224.00 |
| Width incl. packaging (cm) | 645.00 |
| Pack. material | cardboard box |
| Pal. weight (kg) | 340.00 |
| Weight incl. packaging (Kg) | 80.000 |
| Length incl. packaging (cm) | 870.00 |
| Pal. dim. LxBxH (mm) | 1200x800x1040 |
| Weight without packaging (kg) | 75.000 |
|---|---|
| Height without packaging (mm) | 130.00 |
| Width without packaging (mm) | 531.00 |
| Length without packaging (mm) | 671.00 |
