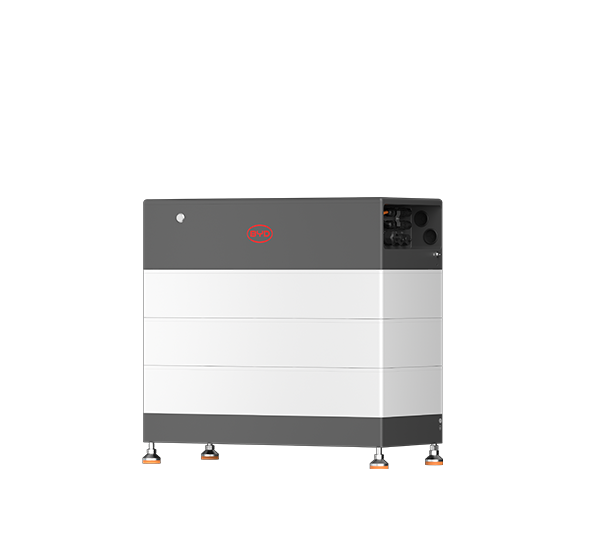

Battery-Box HVB 8.9
Product information "Battery-Box HVB 8.9"
CAUTION:
Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II
Please check the compatibility with your system. Retrofitting storage modules requires special preparations and must be carried out in accordance with the manufacturer's instructions.
Currently announced release dates (actual release is subject to verification):
- Kostal + Kaco end of August
- Fronius beginning of October
The successful HVS and HVM series from BYD have now been joined by the HVB high-voltage storage system. It shines with all the virtues of its predecessors and a capacity range of 5.9 to 29.6 kWh per unit. The LFP cells, developed in-house and proven a million times over, also enable smaller system dimensions. For example, the tower only reaches a height of 1.33 metres in the maximum expansion stage. A maximum total capacity of 89.07 kWh can be cascaded three times. Also ideal for applications in the small commercial sector.
Product advantages:
- System can be expanded at any time
- Wireless stacking concept

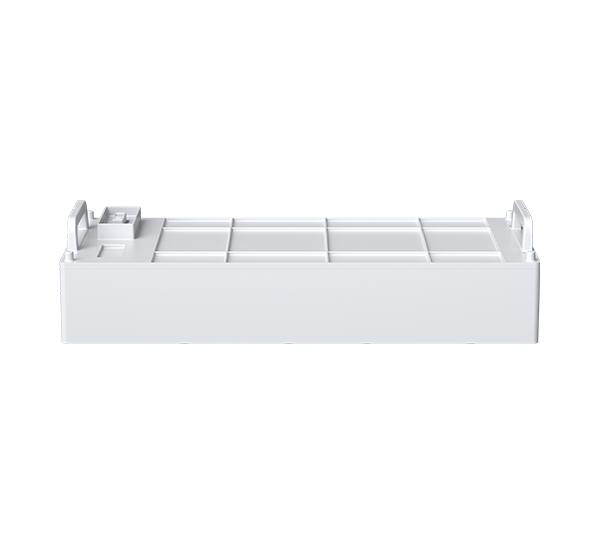

- Up to 10 storage modules per tower
- Max. 3 units scalable in parallel up to 89.07 kWh
Product features Storage:
- Battery capacity (usable): 8.91 kWh
- Nominal voltage: 153.6 V
- Extension time window: unlimited
- Number of storage modules in one unit: 2 to 10
- Number of units in parallel: 3
- Cell chemistry: LFP
- Interfaces: RJ45, CAN, WLAN/LAN module (optional)
- BAT connections: MC4
- Protection class: IP55
- Dimensions: 585 x 610 x 282 mm (HxWxD)
- Weight: 96.0 kg
Wichtige technische Daten
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| Dangerous goods Weight (net) (kg) | 81.900 |
| UN No. | 3480 |
Downloads
-
B-Box HV-BCU + Base0161507
-
Battery-Box HVB 2,97 kWh0161119
-
Battery-Box HVB 2,97 kWh0161119
Technical details
| Nominal voltage DC (V) | 153.60 |
|---|---|
| Capacity extendable later | yes without restriction |
| Cell chemistry | LFP |
| Min. temperature ambient (°C) | -20 |
| Battery voltage | High Voltage |
| Battery cell chemistry | LFP |
| Usable capacity (kWh) | 8.91 |
| Protection degree | IP55 |
| Max. output current charging (A) | 50.00 |
| Max. C-rate | 0.20 |
| Intrastat country of origin | China |
|---|---|
| Dangerous goods transportation category | 2 |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Intrastat product number (HS-code) | 85076000 |
| Manufacturer item name | HVB 8.9*BCU HVB |
| Manufacturer | BYD |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| Dangerous goods Weight (net) (kg) | 81.900 |
| UN No. | 3480 |
| Weight incl. packaging (Kg) | 108.000 |
|---|
| Length without packaging (mm) | 585.00 |
|---|---|
| Width without packaging (mm) | 610.00 |
| Height without packaging (mm) | 282.00 |
| Weight without packaging (kg) | 96.000 |
