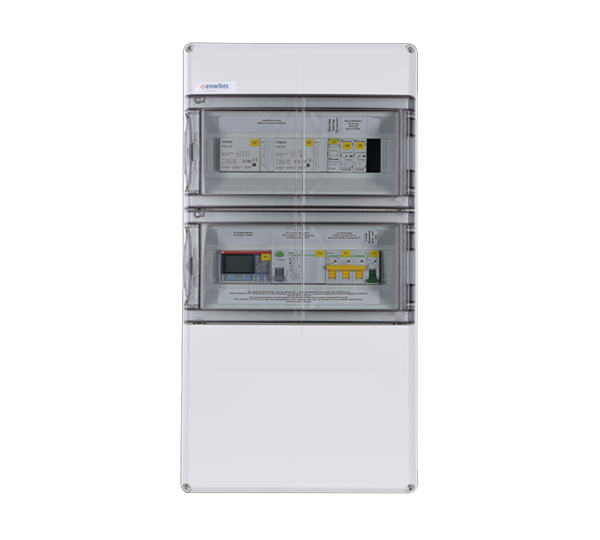

BATTERY BACKUP DISTRIBUTION 3PH (63A)(BBDAP)(LG)
Switching device (ATS box) for LG ESS Home 8 + 10
Art-No.
0130559
Manufacturer No.
10013677
Product details
Product information "BATTERY BACKUP DISTRIBUTION 3PH (63A)(BBDAP)(LG)"
***country approval: D-A-CH***
- Battery inverter: ESS Home 8 or ESS Home 10
- Mains disconnection: all-pole
- Monitoring & Control: Energy meter (for the ESS) integrated - type ABB / B23
- Black start: Integrated lithium manganese dioxide 9V battery for the ESS
- Network type: 3PH 230 / 400V - TT or TN-S system; NO TN-C system
- Rated voltage AC: 3PH - 230V / 400 V
- Rated insulation voltage: 400 V
- Operating frequency: 50
- max.switchable short-circuit current: 10 kA
- Permissible network configuration: TT / TN-S
- Max.line-side backup fuse: 63 A
- max.thermal throughput: 20 kW
- Standby losses: approx. 10 W
- Operating temperature range: -25 ° C… + 40 ° C
- Protection class (EN 61140): II
- Degree of protection (EN 60529): IP65
Technical details
| Intrastat country of origin | Germany |
|---|---|
| Manufacturer | enwitec |
| Intrastat product number (HS-code) | 85371098 |
| Manufacturer item name | 3PH_LG_BBDAP_20KW_3PH |
| Weight incl. packaging (Kg) | 11.500 |
|---|
| Width without packaging (mm) | 340.00 |
|---|---|
| Weight without packaging (kg) | 11.000 |
| Length without packaging (mm) | 622.00 |
| Height without packaging (mm) | 161.00 |
| Warranty provider | enwitec |
|---|
