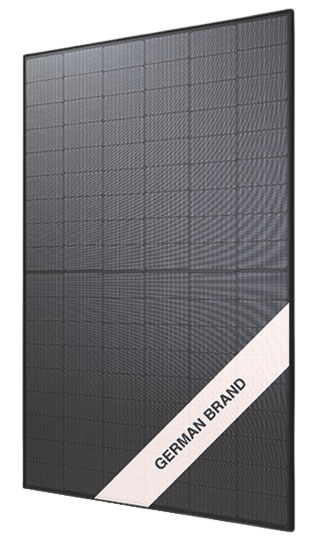

AXIblackbiperfect GL AC-450TGBL/108BB
Glass-glass, bifacial, full black, MC4-EVO 2A
Art-No.
0157940
Product details
Product information "AXIblackbiperfect GL AC-450TGBL/108BB"
The AXIbiperfect series PV module from Axitec generates an output of 450 Wp and offers up to 30 % more power thanks to the revolutionary bifacial technology. This technology stands for sustainable energy generation and maximum energy efficiency by utilising both the front and the back of the PV module. The solar module is characterised by increased safety through improved fire protection and has a stylish full-black design. An impressive 30-year warranty emphasises the exceptional quality and reliability of this product.
Product advantages:
• Up to 30 % more power thanks to bifacial technology
• Increased safety through improved fire protection
• Stylish full-black design
• 30-year performance and product warranty
Product features:
• Power rating Pmax: 450 Wp
• Cell type: monocrystalline
• Bifacial: yes
• Cell contact: 16 busbars
• Frame type: framed
• Frame colour: black
• Backsheet colour (cell side): black
• Max. system voltage: 1500 V
• Connector type: MC4-EVO 2A
• Cable length: 1.2 m
• Glass thickness: 2.0 mm (front) / 2.0 mm (back)
• Max. surface load capacity: 5400 Pa (snow) / 2400 Pa (wind)
• Fire protection class: C (UL 790)
• Dimensions: 1762 x 1134 x 30 mm (L x W x H)
• Weight: 25.0 kg
• Warranty: 30 years performance warranty and 30 years product warranty
Technical details
| Power rating Pmax (Wp) | 450 |
|---|---|
| Connector type | MC4 Evo 2A |
| Frame colour | black |
| Length of cable plus (cm) | 120.00 |
| Max. reverse current (A) | 30 |
| Bifacial | yes |
| Max. system voltage (V) | 1500 |
| Max. wind speed capacity testload(Pa) | 2400 |
| Number of cells across | 6 |
| Nominal current Impp (A) | 13.54 |
| Temperature coefficient Uoc (%/C) | -0.2600 |
| Module structure | glass-glass |
| Number of cells along | 18 |
| Max. surface load capacity testload(Pa) | 5400 |
| Power tolerance | +5 Wp |
| Temperature coefficient Pmpp (%/C) | -0.3100 |
| Frame type | framed |
| Cell width (mm) | 182.000 |
| Cell type | monocrystalline |
| Module efficiency (%) | 22.52 |
| Integrated module optimization | no |
| Nominal voltage Umpp (V) | 33.24 |
| Protection degree | IP68 |
| Short circuit current Isc (A) | 14.25 |
| Length of cable minus (cm) | 120.00 |
| Busbars (pcs) | 16 |
| Temperature coefficient Isc (%/C) | 0.0460 |
| Number of cells (pieces) | 108 |
| Backsheet colour cell side | black |
| Cell cut | half cut |
| Cell length (mm) | 94.000 |
| Glass thickness front side (mm) | 2.00 |
| Open circuit voltage Uoc (V) | 39.98 |
| Intrastat country of origin | China |
|---|---|
| Manufacturer | AXITEC |
| Manufacturer item name | AC-450TGBL\/108BB |
| Certificate 1 | IEC/TÜV |
| Intrastat product number (HS-code) | 85414300 |
| Certificate 2 | Protection Class 2 |
| Width incl. packaging (cm) | 113.40 |
|---|---|
| Amount Pal. p. Cont. | 26 |
| Pack. material | cardboard box |
| Height incl. packaging (cm) | 3.00 |
| Length incl. packaging (cm) | 176.20 |
| Amount p. Cont. | 936 |
| Weight incl. packaging (Kg) | 25.000 |
| Amount per Pallet | 36 |
| Width without packaging (mm) | 1134.00 |
|---|---|
| Length without packaging (mm) | 1762.00 |
| Weight without packaging (kg) | 25.000 |
| Height without packaging (mm) | 30.00 |
