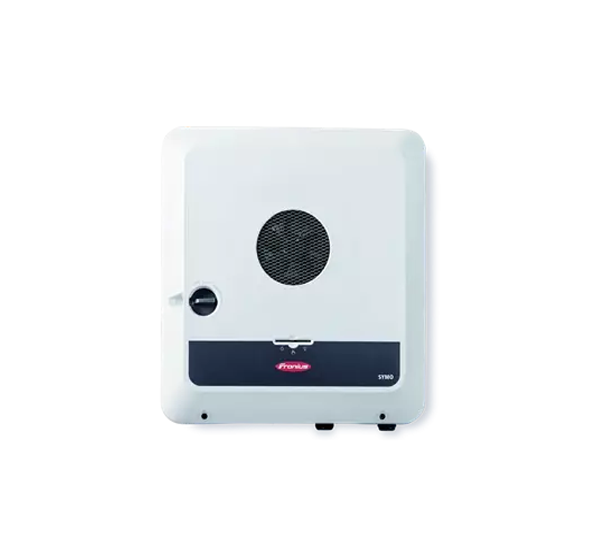

Reserva 15.8 + Symo GEN24 12.0 SC Hybrid-WR

Ultra-flat and powerful - that's the Fronius Reserva high-voltage storage system. Thanks to its high cell voltage, it can be used with high charging power on GEN24 hybrid devices with as few as 2 storage modules. In the proven stacked design, just under 15.8 kWh of usable capacity can be realised with 5 elements. For larger storage requirements, up to 4 systems can be connected in parallel. And with an installation depth of just 176 mm, it even fits behind doors and in tightly dimensioned utility rooms. The tried-and-tested Symo GEN24 plus shines with its flexible application options and functions. Even in the event of a power failure with the smart PV point or the backup switch or controller.

Product benefits:

- All components from a single source

- Emergency power via Fronius PV Point

- Backup power with Fronius Backup Switch / Controller

Product features System:

- AC power: 12.0 kW

- AC connection: 400 V, 3-phase

- DC input current: MPPT 1 - 28.0 A, MPPT 2 - 14.0 A

- Number of MPPT: 2

- Communication: WLAN, 2 x Ethernet

- Interfaces: RS485, 6 x DI (FRE), 6 x DO, WSD

- Protection class: IP66

- Cooling: active

- Dimensions: 595 x 529 x 180 mm (L x W x H)

- Weight: 23.4 kg

Product features Memory:

- Battery capacity (usable): 15.79 kWh

- Expansion time frame: to be clarified

- Number of storage modules per unit: 2 to 5

- Storage systems in parallel: up to 4 (announced)

- Cell chemistry: LFP

- Protection class: IP65

- Dimensions: 1610 x 780 x 176 mm (H x W x D)

- Weight: BMS + base 19.5 kg, per storage module 33.5 kg

Conclusion:

With this set, you now only have Fronius in your cellar. Storage tank and system from the proven quality manufacturer from Austria.
